SPEC® MPIL2007 Result

Hewlett Packard Enterprise

SGI 8600
(Intel Xeon Gold 6148, 2.40 GHz)

SPECmpiL_peak2007 = 144

SPECmpiL_base2007 = 133

MPI2007 license:	1	Test date:	Oct-2017
Test sponsor:	HPE	Hardware Availability:	Jul-2017
Tested by:	HPE	Software Availability:	Nov-2017

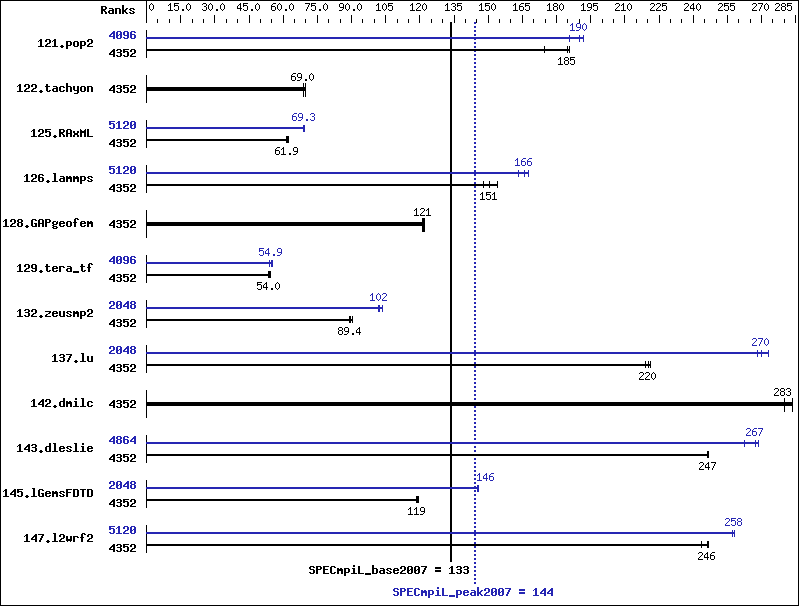

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2	4352	22.3	175	20.9	186	21.1	185	4096	21.0	186	20.5	190	20.3	192
122.tachyon	4352	28.2	69.0	27.9	69.6	28.2	69.0	4352	28.2	69.0	27.9	69.6	28.2	69.0
125.RAxML	4352	47.2	61.9	47.0	62.1	47.3	61.7	5120	42.1	69.3	42.0	69.5	42.3	68.9
126.lammps	4352	16.6	148	16.3	151	16.0	154	5120	14.7	168	15.1	163	14.8	166
128.GAPgeofem	4352	48.9	121	48.9	121	48.6	122	4352	48.9	121	48.9	121	48.6	122
129.tera_tf	4352	20.5	53.7	20.4	54.0	20.2	54.5	4096	20.4	53.9	20.0	54.9	19.9	55.2
132.zeusmp2	4352	23.4	90.5	23.8	89.0	23.7	89.4	2048	20.4	104	20.8	102	20.7	102
137.lu	4352	19.0	221	19.2	219	19.1	220	2048	15.7	268	15.6	270	15.4	273
142.dmilc	4352	13.0	283	13.2	280	13.0	283	4352	13.0	283	13.2	280	13.0	283
143.dleslie	4352	12.6	247	12.6	246	12.6	247	4864	11.5	269	11.8	262	11.6	267
145.lGemsFDTD	4352	37.0	119	37.2	119	36.9	119	2048	30.3	146	30.3	146	30.4	145
147.l2wrf2	4352	33.3	246	33.7	244	33.2	247	5120	31.8	258	31.8	258	31.9	257

Hardware Summary
Type of System:	Homogeneous
Compute Node:	HPE XA730i Gen10 Server Node
Interconnect:	InfiniBand (MPI and I/O)
File Server Node:	Lustre FS
Total Compute Nodes:	128
Total Chips:	256
Total Cores:	5120
Total Threads:	10240
Total Memory:	24 TB
Base Ranks Run:	4352
Minimum Peak Ranks:	2048
Maximum Peak Ranks:	5120

Software Summary
C Compiler:	Intel C Composer XE for Linux, Version 18.0.0.128 Build 20170811
C++ Compiler:	Intel C++ Composer XE for Linux, Version 18.0.0.128 Build 20170811
Fortran Compiler:	Intel Fortran Composer XE for Linux, Version 18.0.0.128 Build 20170811
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	HPE Performance Software - Message Passing Interface 2.17
Other MPI Info:	OFED 3.2.2
Pre-processors:	None
Other Software:	None

Node Description: HPE XA730i Gen10 Server Node

Hardware
Number of nodes:	128
Uses of the node:	compute
Vendor:	Hewlett Packard Enterprise
Model:	SGI 8600 (Intel Xeon Gold 6148, 2.40 GHz)
CPU Name:	Intel Xeon Gold 6148
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	40
Cores per chip:	20
Threads per core:	2
CPU Characteristics:	Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz:	2400
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	27.5 MB I+D on chip per chip
Other Cache:	None
Memory:	192 GB (12 x 16 GB 2Rx4 PC4-2666V-R)
Disk Subsystem:	None
Other Hardware:	None
Adapter:	Mellanox MT27700 with ConnectX-4 ASIC
Number of Adapters:	2
Slot Type:	PCIe x16 Gen3 8GT/s
Data Rate:	InfiniBand 4X EDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT27700 with ConnectX-4 ASIC
Adapter Driver:	OFED-3.4-2.1.8.0
Adapter Firmware:	12.18.1000
Operating System:	Red Hat Enterprise Linux Server 7.3 (Maipo), Kernel 3.10.0-514.2.2.el7.x86_64
Local File System:	LFS
Shared File System:	LFS
System State:	Multi-user, run level 3
Other Software:	SGI Management Center Compute Node 3.5.0, Build 716r171.rhel73-1705051353

Node Description: Lustre FS

Hardware
Number of nodes:	4
Uses of the node:	fileserver
Vendor:	Hewlett Packard Enterprise
Model:	Rackable C1104-GP2 (Intel Xeon E5-2690 v3, 2.60 GHz)
CPU Name:	Intel Xeon E5-2690 v3
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	24
Cores per chip:	12
Threads per core:	1
CPU Characteristics:	Intel Turbo Boost Technology up to 3.50 GHz Hyper-Threading Technology disabled
CPU MHz:	2600
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	30 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (8 x 16 GB 2Rx4 PC4-2133P-R)
Disk Subsystem:	684 TB RAID 6 48 x 8+2 2TB 7200 RPM
Other Hardware:	None
Adapter:	Mellanox MT27700 with ConnectX-4 ASIC
Number of Adapters:	2
Slot Type:	PCIe x16 Gen3
Data Rate:	InfiniBand 4X EDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT27700 with ConnectX-4 ASIC
Adapter Driver:	OFED-3.3-1.0.0.0
Adapter Firmware:	12.14.2036
Operating System:	Red Hat Enterprise Linux Server 7.3 (Maipo), Kernel 3.10.0-514.2.2.el7.x86_64
Local File System:	ext3
Shared File System:	LFS
System State:	Multi-user, run level 3
Other Software:	None

Interconnect Description: InfiniBand (MPI and I/O)

Hardware
Vendor:	Mellanox Technologies and SGI
Model:	SGI P0002145
Switch Model:	SGI P0002145
Number of Switches:	30
Number of Ports:	36
Data Rate:	InfiniBand 4X EDR
Firmware:	11.0350.0394
Topology:	Enhanced Hypercube
Primary Use:	MPI and I/O traffic

Base Tuning Notes

src.alt used: 143.dleslie->integer_overflow

Submit Notes

The config file option 'submit' was used.

General Notes



 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_IB_RAILS=2
   export MPI_IB_IMM_UPGRADE=false
   export MPI_CONNECTIONS_THRESHOLD=0
   export MPI_IB_DCIS=2
   export MPI_IB_HYPER_LAZY=false
   ulimit -s unlimited

 BIOS settings:
   AMI BIOS version SAED7177, 07/17/2017

 Job Placement:
   Each MPI job was assigned to a topologically compact set
   of nodes.

 Additional notes regarding interconnect:
   The Infiniband network consists of two independent planes,
   with half the switches in the system allocated to each plane.
   I/O traffic is restricted to one plane, while MPI traffic can
   use both planes.
