SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Colfax International

Intel Xeon Phi 7210, 1.30 GHz,
SMT on, Turbo off, MCDRAM Cache

SPECmpiM_peak2007 = Not Run

MPI2007 license: 3440 Test date: Sep-2016
Test sponsor: Indiana University Hardware Availability: Aug-2016
Tested by: Junjie Li Software Availability: Apr-2016

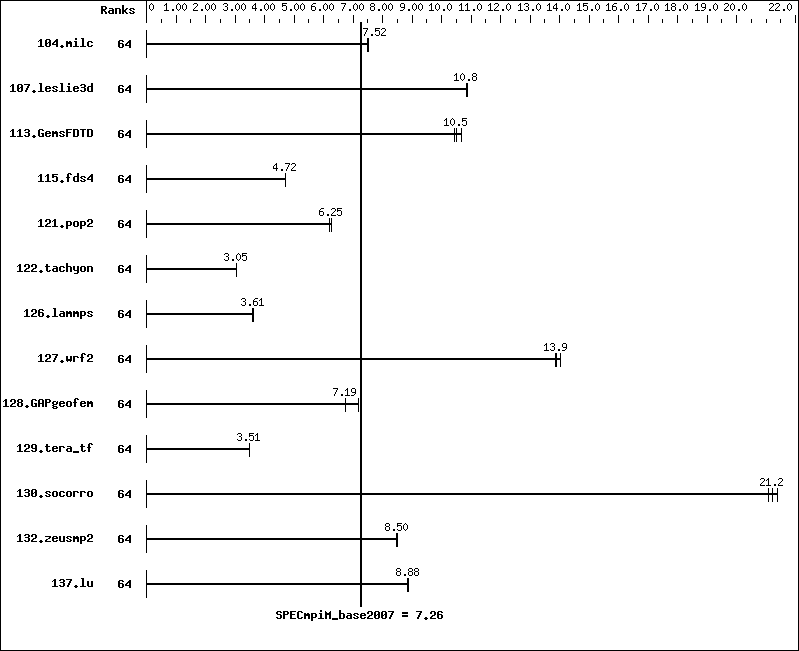

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 64 209 7.48 208 7.53 208 7.52
107.leslie3d 64 480 10.9  482 10.8  482 10.8
113.GemsFDTD 64 601 10.5  592 10.7  605 10.4
115.fds4 64 414 4.72 413 4.72 413 4.72
121.pop2 64 657 6.28 660 6.25 665 6.20
122.tachyon 64 916 3.05 917 3.05 917 3.05
126.lammps 64 806 3.62 807 3.61 812 3.59
127.wrf2 64 563 13.8  555 14.0  561 13.9
128.GAPgeofem 64 287 7.19 287 7.19 307 6.73
129.tera_tf 64 789 3.51 791 3.50 789 3.51
130.socorro 64 179 21.4  180 21.2  181 21.1
132.zeusmp2 64 367 8.46 365 8.50 365 8.50
137.lu 64 414 8.88 414 8.88 416 8.84
Hardware Summary
Type of System: Homogeneous
Compute Node: KNL
File Server Node: KNL
Head Node: KNL
Total Compute Nodes: 1
Total Chips: 1
Total Cores: 64
Total Threads: 256
Total Memory: 96 GB
Base Ranks Run: 64
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE 2016 for Linux,
Version 16.0.3.210 Build 20160415
C++ Compiler: Intel C++ Composer XE 2016 for Linux,
Version 16.0.3.210 Build 20160415
Fortran Compiler: Intel Fortran Composer XE 2016 for Linux,
Version 16.0.3.210 Build 20160415
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library for Linux 5.1.3 Build 20160120
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: KNL

Hardware
Number of nodes: 1
Uses of the node: head, compute, fileserver
Vendor: Colfax International
Model: None
CPU Name: Intel Xeon Phi 7210
CPU(s) orderable: 1 chip
Chips enabled: 1
Cores enabled: 64
Cores per chip: 64
Threads per core: 4
CPU Characteristics: Intel Turbo Boost Technology off,
Simultaneous Multithreading (SMT) on
CPU MHz: 1300
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per two cores
L3 Cache: None
Other Cache: None
Memory: 96 GB (6 x 16 GB 2Rx8 PC4-2400T-REB-11, ECC)
Disk Subsystem: Intel S3510 SSD 800GB, SATA3
Other Hardware: None
Adapter: 0
Number of Adapters: 0
Slot Type: 0
Data Rate: 0
Ports Used: 0
Interconnect Type: 0
Software
Adapter: 0
Adapter Driver: 0
Adapter Firmware: --
Operating System: CentOS Linux Release 7.2.1511
Local File System: Linux/ext4
Shared File System: None
System State: Multi-User
Other Software: None

Submit Notes

The config file option 'submit' was used.

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

 MPI startup command:
   mpirun command was used to start MPI jobs.

 BIOS settings:
   Intel Simultaneous Multithreading (SMT): on
   Intel Turbo Boost Technology (Turbo)  : off
   Cluster Mode: quadrant
   Memory Mode: cache

Submitted_by: "Li, Junjie" <lijunj@iu.edu>
Submitted: Thu Oct 20 18:09:55 EDT 2016
Submission: mpi2007-20161014-00528.sub

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -xMIC-AVX512   -no-prec-div   -fp-model fast=2   -ipo   -fma

C++ benchmarks:

126.lammps:  -O3   -xMIC-AVX512   -no-prec-div   -fp-model fast=2   -ipo   -fma

Fortran benchmarks:

 -O3   -xMIC-AVX512   -no-prec-div   -fp-model fast=2   -ipo   -fma

Benchmarks using both Fortran and C:

 -O3   -xMIC-AVX512   -no-prec-div   -fp-model fast=2   -ipo   -fma

The flags files that were used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/colfax-knl.20170127.html,
http://www.spec.org/mpi2007/flags/EM64T_Intel140_flags.20161026.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/mpi2007/flags/colfax-knl.20170127.xml,
http://www.spec.org/mpi2007/flags/EM64T_Intel140_flags.20161026.xml.
