SPEC® MPIM2007 Result

SGI

SGI Rackable C2005-TY3
(Intel Xeon X5687, 3.60 GHz)

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 4.41

MPI2007 license:	4	Test date:	Aug-2011
Test sponsor:	SGI	Hardware Availability:	Feb-2011
Tested by:	SGI	Software Availability:	Jul-2011

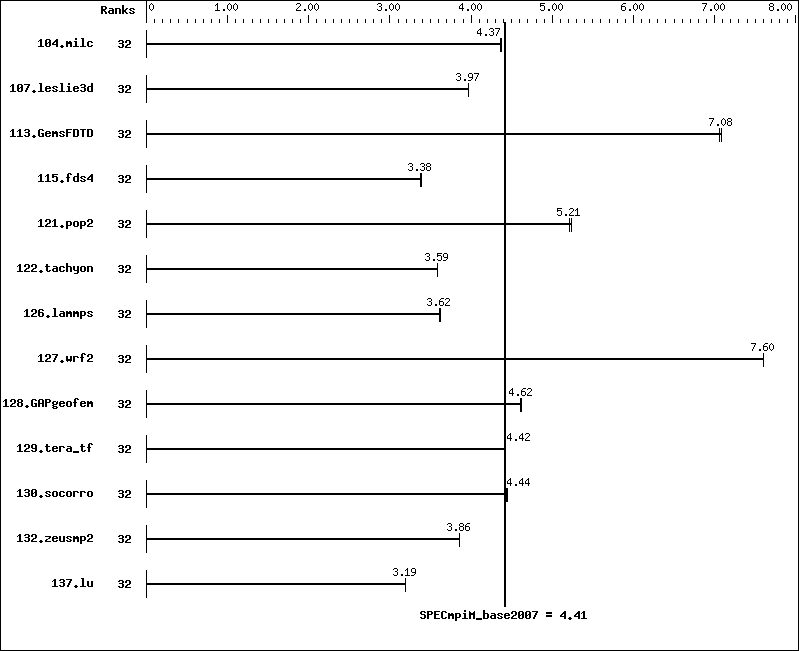

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	32	359	4.36	358	4.37	358	4.38
107.leslie3d	32	1315	3.97	1316	3.97	1315	3.97
113.GemsFDTD	32	891	7.08	890	7.09	893	7.06
115.fds4	32	578	3.38	577	3.38	575	3.39
121.pop2	32	789	5.23	792	5.21	792	5.21
122.tachyon	32	780	3.59	780	3.59	780	3.59
126.lammps	32	806	3.61	806	3.62	806	3.62
127.wrf2	32	1026	7.60	1025	7.60	1026	7.60
128.GAPgeofem	32	447	4.62	449	4.60	447	4.62
129.tera_tf	32	626	4.42	626	4.42	626	4.42
130.socorro	32	859	4.44	861	4.43	859	4.44
132.zeusmp2	32	804	3.86	804	3.86	805	3.85
137.lu	32	1154	3.19	1151	3.19	1152	3.19

Hardware Summary
Type of System:	Homogeneous
Compute Node:	SGI Rackable C2005-TY3 Compute Node
Interconnect:	InfiniBand (MPI and I/O)
File Server Node:	SGI InfiniteStorage 4500
Total Compute Nodes:	2
Total Chips:	4
Total Cores:	16
Total Threads:	32
Total Memory:	96 GB
Base Ranks Run:	32
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Composer XE 2011 for Linux, Version 12.0.5.220 Build 20110719
C++ Compiler:	Intel C++ Composer XE 2011 for Linux, Version 12.0.5.220 Build 20110719
Fortran Compiler:	Intel Fortran Composer XE 2011 for Linux, Version 12.0.5.220 Build 20110719
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	SGI MPT 2.04 Patch 10773
Other MPI Info:	OFED 1.4.2
Pre-processors:	None
Other Software:	None

Node Description: SGI Rackable C2005-TY3 Compute Node

Hardware
Number of nodes:	2
Uses of the node:	compute
Vendor:	SGI
Model:	SGI Rackable C2005-TY3 (Intel Xeon X5687, 3.60GHz)
CPU Name:	Intel Xeon X5687
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	8
Cores per chip:	4
Threads per core:	2
CPU Characteristics:	Quad Core, 3.60 GHz, 6.4 GT/s QPI Intel Turbo Boost Technology up to 3.86 GHz Hyper-Threading Technology enabled
CPU MHz:	3600
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory:	48 GB (6 x 8 GB, 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	None
Other Hardware:	None
Adapter:	Mellanox MT26428 ConnectX IB QDR (PCIe x8 Gen2 5 GT/s)
Number of Adapters:	1
Slot Type:	PCIe x8 Gen2
Data Rate:	InfiniBand 4x QDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT26428 ConnectX IB QDR (PCIe x8 Gen2 5 GT/s)
Adapter Driver:	OFED-1.4.2
Adapter Firmware:	2.7.0
Operating System:	SUSE Linux Enterprise Server 11 SP1 (x86_64) Kernel 2.6.32.36-0.5-default
Local File System:	NFSv3
Shared File System:	NFSv3 IPoIB
System State:	Multi-user, run level 3
Other Software:	SGI Performance Suite 1.2, Build 704r5.sles11-1103212004

Node Description: SGI InfiniteStorage 4500

Hardware
Number of nodes:	1
Uses of the node:	fileserver
Vendor:	SGI
Model:	SGI Altix 450 (Intel Itanium 2, 1.6 GHz)
CPU Name:	Intel Itanium 2 9030
CPU(s) orderable:	2-38 chips
Chips enabled:	4
Cores enabled:	8
Cores per chip:	2
Threads per core:	1
CPU Characteristics:	1.6GHz/8MB, 533MHz FSB
CPU MHz:	1600
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	4 MB I+D on chip per core
Other Cache:	None
Memory:	48 GB (24 x 2 GB, 2Rx4 PC2-3200-4, ECC)
Disk Subsystem:	5.8 TB RAID 5 20 x 146 GB FC (Seagate Cheetah 15K.4) 40 x 73 GB FC (Seagate Cheetah 15K.4)
Other Hardware:	None
Adapter:	Mellanox MT25208 InfiniHost III Ex (PCIe x8 Gen1 2.5 GT/s)
Number of Adapters:	2
Slot Type:	PCIe x8 Gen1
Data Rate:	InfiniBand 4x DDR
Ports Used:	2
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT25208 InfiniHost III Ex (PCIe x8 Gen1 2.5 GT/s)
Adapter Driver:	OFED-1.4.2
Adapter Firmware:	4.8.200
Operating System:	SUSE Linux Enterprise Server 11 SP1 (ia64) Kernel 2.6.32.23-0.3-default
Local File System:	xfs
Shared File System:	--
System State:	Multi-user, run level 3
Other Software:	SGI InfiniteStorage Software Platform, version 2.2, Build 702r16.sles11-1010082110

Interconnect Description: InfiniBand (MPI and I/O)

Hardware
Vendor:	Mellanox Technologies
Model:	n/a
Switch Model:	Voltaire Grid Director 4200
Number of Switches:	1
Number of Ports:	36
Data Rate:	InfiniBand 4x QDR
Firmware:	3.0.0 BUILD ID 629
Topology:	Fat tree
Primary Use:	MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_BUFS_THRESHOLD=1
   ulimit -s unlimited

 BIOS settings:
   AMI BIOS version  2.10
   Hyper-Threading Technology enabled (default)
   Intel Turbo Boost Technology enabled (default)
   Intel Turbo Boost Technology activated in the OS via
     /etc/init.d/acpid start
     /etc/init.d/powersaved start
     powersave -f
