| MPI2007 license: | 4 | Test date: | Jun-2011 |
|---|---|---|---|
| Test sponsor: | SGI | Hardware Availability: | Feb-2011 |
| Tested by: | SGI | Software Availability: | Aug-2011 |

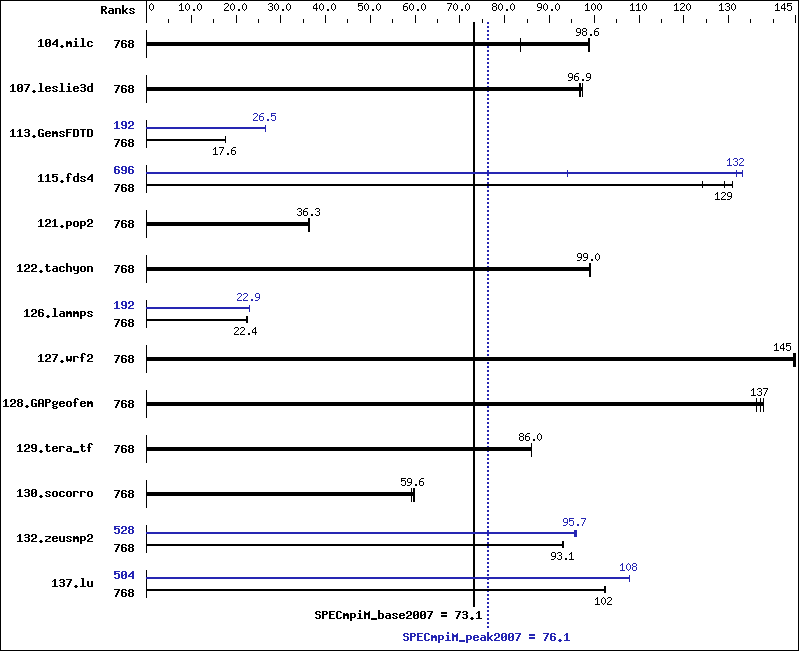

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 104.milc | 768 | 18.7 | 83.6 | 15.8 | 98.9 | 15.9 | 98.6 | 768 | 18.7 | 83.6 | 15.8 | 98.9 | 15.9 | 98.6 |
| 107.leslie3d | 768 | 53.8 | 96.9 | 53.9 | 96.8 | 53.6 | 97.5 | 768 | 53.8 | 96.9 | 53.9 | 96.8 | 53.6 | 97.5 |
| 113.GemsFDTD | 768 | 360 | 17.5 | 358 | 17.6 | 359 | 17.6 | 192 | 238 | 26.5 | 238 | 26.5 | 238 | 26.5 |
| 115.fds4 | 768 | 14.9 | 131 | 15.7 | 124 | 15.1 | 129 | 696 | 14.6 | 133 | 20.7 | 94.0 | 14.8 | 132 |
| 121.pop2 | 768 | 114 | 36.3 | 114 | 36.3 | 114 | 36.2 | 768 | 114 | 36.3 | 114 | 36.3 | 114 | 36.2 |
| 122.tachyon | 768 | 28.2 | 99.1 | 28.3 | 99.0 | 28.3 | 98.9 | 768 | 28.2 | 99.1 | 28.3 | 99.0 | 28.3 | 98.9 |
| 126.lammps | 768 | 130 | 22.4 | 130 | 22.4 | 129 | 22.5 | 192 | 127 | 22.9 | 127 | 22.9 | 127 | 22.9 |
| 127.wrf2 | 768 | 53.9 | 145 | 53.8 | 145 | 54.0 | 144 | 768 | 53.9 | 145 | 53.8 | 145 | 54.0 | 144 |
| 128.GAPgeofem | 768 | 15.2 | 136 | 15.0 | 137 | 15.0 | 138 | 768 | 15.2 | 136 | 15.0 | 137 | 15.0 | 138 |
| 129.tera_tf | 768 | 32.2 | 86.0 | 32.2 | 86.0 | 32.2 | 85.9 | 768 | 32.2 | 86.0 | 32.2 | 86.0 | 32.2 | 85.9 |
| 130.socorro | 768 | 63.8 | 59.8 | 64.1 | 59.6 | 64.6 | 59.1 | 768 | 63.8 | 59.8 | 64.1 | 59.6 | 64.6 | 59.1 |
| 132.zeusmp2 | 768 | 33.3 | 93.1 | 33.3 | 93.1 | 33.4 | 92.8 | 528 | 32.4 | 95.6 | 32.4 | 95.7 | 32.3 | 96.1 |
| 137.lu | 768 | 35.9 | 102 | 35.9 | 102 | 35.9 | 102 | 504 | 34.1 | 108 | 34.1 | 108 | 34.1 | 108 |
| Hardware Summary | |
|---|---|
| Type of System: | Homogeneous |
| Compute Node: | SGI Altix ICE 8400EX Compute Node |
| Interconnect: | InfiniBand (MPI and I/O) |
| File Server Node: | SGI InfiniteStorage Nexis 2000 NAS |
| Total Compute Nodes: | 64 |
| Total Chips: | 128 |
| Total Cores: | 768 |
| Total Threads: | 1536 |
| Total Memory: | 1536 GB |
| Base Ranks Run: | 768 |
| Minimum Peak Ranks: | 192 |
| Maximum Peak Ranks: | 768 |
| Software Summary | |
|---|---|
| C Compiler: | Intel C++ Composer XE 2011 for Linux, Version 12.0.3.174 Build 20110309 |
| C++ Compiler: | Intel C++ Composer XE 2011 for Linux, Version 12.0.3.174 Build 20110309 |
| Fortran Compiler: | Intel Fortran Composer XE 2011 for Linux, Version 12.0.3.174 Build 20110309 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| MPI Library: | SGI MPT 2.04 Patch 10789 |
| Other MPI Info: | OFED 1.4.2 |
| Pre-processors: | None |
| Other Software: | None |
Node Description: SGI Altix ICE 8400EX Compute Node
| Hardware | |
|---|---|
| Number of nodes: | 64 |
| Uses of the node: | compute |
| Vendor: | SGI |
| Model: | SGI Altix ICE 8400EX (Intel Xeon X5690, 3.46 GHz) |
| CPU Name: | Intel Xeon X5690 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 12 |
| Cores per chip: | 6 |
| Threads per core: | 2 |
| CPU Characteristics: | Six Core, 3.46 GHz, 6.4 GT/s QPI Intel Turbo Boost Technology up to 3.73 GHz Hyper-Threading Technology enabled |
| CPU MHz: | 3467 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | None |
| Other Hardware: | None |
| Adapter: | Mellanox MT26428 ConnectX IB QDR (PCIe x8 Gen2 5 GT/s) |
| Number of Adapters: | 2 |
| Slot Type: | PCIe x8 Gen2 |
| Data Rate: | InfiniBand 4x QDR |
| Ports Used: | 1 |
| Interconnect Type: | InfiniBand |
| Software | |
|---|---|
| Adapter: | Mellanox MT26428 ConnectX IB QDR (PCIe x8 Gen2 5 GT/s) |
| Adapter Driver: | OFED-1.4.2 |
| Adapter Firmware: | 2.7.8200 |
| Operating System: | SUSE Linux Enterprise Server 11 SP1, Kernel 2.6.32.13-0.4-default |
| Local File System: | NFSv3 |
| Shared File System: | NFSv3 IPoIB |
| System State: | Multi-user, run level 3 |
| Other Software: | SGI ProPack 7SP1 for Linux, Build 701r3.sles11-1005252113 SGI Tempo Compute Node 2.1, Build 701r3.sles11-1005252113 |
Node Description: SGI InfiniteStorage Nexis 2000 NAS
| Hardware | |
|---|---|
| Number of nodes: | 1 |
| Uses of the node: | fileserver |
| Vendor: | SGI |
| Model: | SGI Altix XE 270 (Intel Xeon X5670, 2.93 GHz) |
| CPU Name: | Intel Xeon X5670 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 12 |
| Cores per chip: | 6 |
| Threads per core: | 2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz Hyper-Threading Technology enabled |
| CPU MHz: | 2933 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per chip |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12*8 GB DDR3-1333 CL9 DIMMs) |
| Disk Subsystem: | 8.8 TB RAID 5 60 x 146 GB SAS (Seagate Cheetah 15K.5) |
| Other Hardware: | None |
| Adapter: | Mellanox MT26428 ConnectX IB QDR (PCIe x8 Gen2 5 GT/s) |
| Number of Adapters: | 2 |
| Slot Type: | PCIe x8 Gen2 |
| Data Rate: | InfiniBand 4x QDR |
| Ports Used: | 2 |
| Interconnect Type: | InfiniBand |
| Software | |
|---|---|
| Adapter: | Mellanox MT26428 ConnectX IB QDR (PCIe x8 Gen2 5 GT/s) |
| Adapter Driver: | OFED-1.4.0 |
| Adapter Firmware: | 2.7.0 |
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Local File System: | xfs |
| Shared File System: | -- |
| System State: | Multi-user, run level 3 |
| Other Software: | SGI Foundation Software 2, Build 700r3.sles11-1004061553 |
Interconnect Description: InfiniBand (MPI and I/O)
| Hardware | |
|---|---|
| Vendor: | Mellanox Technologies and SGI |
| Model: | None |
| Switch Model: | SGI QDR_1.5_HYPR_2454 with Mellanox Device 48438 (Infiniscale IV) |
| Number of Switches: | 16 |
| Number of Ports: | 36 |
| Data Rate: | InfiniBand 4x QDR |
| Firmware: | 5040005 |
| Topology: | Enhanced Hypercube |
| Primary Use: | MPI and I/O traffic |
Submit Notes
The config file option 'submit' was used.
General Notes
Software environment:
export MPI_REQUEST_MAX=65536
export MPI_TYPE_MAX=32768
export MPI_BUFS_THRESHOLD=1
export MPI_IB_RAILS=2
ulimit -s unlimited
BIOS settings:
AMI BIOS version 080016
Hyper-Threading Technology enabled (default)
Intel Turbo Boost Technology enabled (default)
Intel Turbo Boost Technology activated in the OS via
/etc/init.d/acpid start
/etc/init.d/powersaved start
powersave -f
Job Placement:
Each MPI job was assigned to a topologically compact set
of nodes, i.e. the minimal needed number of switches was
used for each job: 2 switches for up to 96 ranks,
4 switches for 192 ranks, 8 switches for 384 ranks,
16 switches for 768 ranks.
Additional notes regarding interconnect:
The Infiniband network consists of two independent planes,
with half the switches in the system allocated to each plane.
I/O traffic is restricted to one plane, while MPI traffic can
use both planes.
Peak run:
In the peak run, some benchmarks used different number of ranks
from base. It is the only difference between base and peak.
Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| 126.lammps: | icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Portability Flags
| 121.pop2: | -DSPEC_MPI_CASE_FLAG |
| 127.wrf2: | -DSPEC_MPI_CASE_FLAG -DSPEC_MPI_LINUX |
Base Optimization Flags
C benchmarks:
| -O3 -xSSE4.2 -no-prec-div |
C++ benchmarks:
| 126.lammps: | -O3 -xSSE4.2 -no-prec-div -ansi-alias |
Fortran benchmarks:
| -O3 -xSSE4.2 -no-prec-div |
Benchmarks using both Fortran and C:
| -O3 -xSSE4.2 -no-prec-div |
Peak Optimization Flags
C benchmarks:
| 104.milc: | basepeak = yes |
| 122.tachyon: | basepeak = yes |
C++ benchmarks:
| 126.lammps: | -O3 -xSSE4.2 -no-prec-div -ansi-alias |
Fortran benchmarks:
| 107.leslie3d: | basepeak = yes |
| 113.GemsFDTD: | -O3 -xSSE4.2 -no-prec-div |
| 129.tera_tf: | basepeak = yes |
| 137.lu: | Same as 113.GemsFDTD |
Benchmarks using both Fortran and C:
| 115.fds4: | -O3 -xSSE4.2 -no-prec-div |
| 121.pop2: | basepeak = yes |
| 127.wrf2: | basepeak = yes |
| 128.GAPgeofem: | basepeak = yes |
| 130.socorro: | basepeak = yes |
| 132.zeusmp2: | Same as 115.fds4 |
