SPEC® MPIL2007 Result

SGI

SGI Altix ICE 8200EX
(Intel Xeon X5560, 2.80 GHz)

SPECmpiL_peak2007 = Not Run

SPECmpiL_base2007 = 16.1

MPI2007 license:	4	Test date:	Jan-2010
Test sponsor:	SGI	Hardware Availability:	Sep-2009
Tested by:	SGI	Software Availability:	Dec-2009

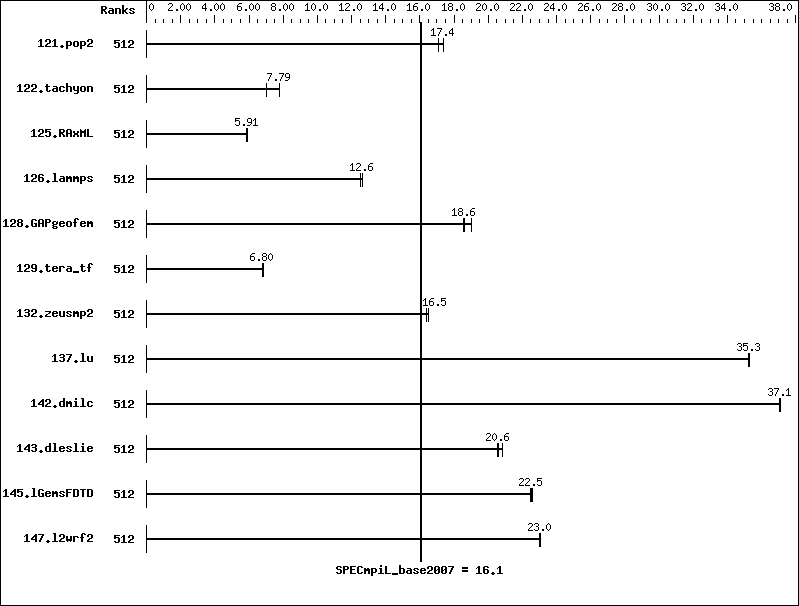

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2	512	228	17.1	224	17.4	224	17.4
122.tachyon	512	278	7.00	250	7.79	249	7.79
125.RAxML	512	494	5.91	494	5.91	501	5.83
126.lammps	512	194	12.6	195	12.6	196	12.5
128.GAPgeofem	512	319	18.6	320	18.6	312	19.0
129.tera_tf	512	162	6.80	162	6.77	161	6.83
132.zeusmp2	512	129	16.5	129	16.4	128	16.5
137.lu	512	119	35.3	119	35.3	119	35.3
142.dmilc	512	99.3	37.1	99.4	37.1	99.2	37.1
143.dleslie	512	151	20.6	151	20.6	149	20.8
145.lGemsFDTD	512	196	22.5	196	22.5	195	22.6
147.l2wrf2	512	356	23.1	356	23.0	356	23.0

Hardware Summary
Type of System:	Homogeneous
Compute Node:	SGI Altix ICE 8200EX Compute Node
Interconnects:	InfiniBand (MPI) InfiniBand (I/O)
File Server Node:	SGI InfiniteStorage Nexis 2000 NAS
Total Compute Nodes:	64
Total Chips:	128
Total Cores:	512
Total Threads:	1024
Total Memory:	2304 GB
Base Ranks Run:	512
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C Compiler for Linux Version 11.1, Build 20091130
C++ Compiler:	Intel C++ Compiler for Linux Version 11.1, Build 20091130
Fortran Compiler:	Intel Fortran Compiler for Linux Version 11.1, Build 20091130
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	SGI MPT 1.25
Other MPI Info:	OFED-1.4.1
Pre-processors:	None
Other Software:	None

Node Description: SGI Altix ICE 8200EX Compute Node

Hardware
Number of nodes:	64
Uses of the node:	compute
Vendor:	SGI
Model:	SGI Altix ICE 8200EX (Intel Xeon X5560, 2.80 GHz)
CPU Name:	Intel Xeon X5560
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	8
Cores per chip:	4
Threads per core:	2
CPU Characteristics:	Intel Turbo Boost Technology up to 3.2 GHz, 6.4 GT/s QPI, Hyper-Threading enabled
CPU MHz:	2800
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	36 GB (64GB + 62GB DDR3-1333 CL9 RDIMMs running at 1066 MHZ. The 4GB DIMM is installed in DIMM slot A in each channel.)
Disk Subsystem:	None
Other Hardware:	None
Adapter:	Mellanox MT26418 ConnectX IB DDR (PCIe x8 Gen2 5 GT/s)
Number of Adapters:	1
Slot Type:	PCIe x8 Gen2
Data Rate:	InfiniBand 4x DDR
Ports Used:	2
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT26418 ConnectX IB DDR (PCIe x8 Gen2 5 GT/s)
Adapter Driver:	OFED-1.4.1
Adapter Firmware:	2.6.0
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2 Kernel 2.6.16.60-0.30-smp
Local File System:	None
Shared File System:	NFSv3 IPoIB
System State:	Multi-user, run level 3
Other Software:	SGI ProPack 6 for Linux Service Pack 5, SGI Tempo V 1.9

Node Description: SGI InfiniteStorage Nexis 2000 NAS

Hardware
Number of nodes:	1
Uses of the node:	fileserver
Vendor:	SGI
Model:	SGI Altix XE 240 (Intel Xeon 5140, 2.33 GHz)
CPU Name:	Intel Xeon 5140
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	4
Cores per chip:	2
Threads per core:	1
CPU Characteristics:	1333 MHz FSB
CPU MHz:	2333
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8*2GB DDR2-667MHz DIMMS)
Disk Subsystem:	4.3 TB RAID 5 48 x 146 GB SAS (Seagate Cheetah 15K.5 )
Other Hardware:	None
Adapter:	Mellanox MT26418 ConnectX IB DDR (PCIe x8 Gen2 5 GT/s)
Number of Adapters:	2
Slot Type:	PCIe x8 Gen2
Data Rate:	InfiniBand 4x DDR
Ports Used:	2
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT26418 ConnectX IB DDR (PCIe x8 Gen2 5 GT/s)
Adapter Driver:	OFED-1.4.1
Adapter Firmware:	2.3.0
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1 Kernel 2.6.16.54-0.2.5-smp
Local File System:	xfs
Shared File System:	--
System State:	Multi-user, run level 3
Other Software:	SGI ProPack 5 for Linux Service Pack 5

Interconnect Description: InfiniBand (MPI)

Hardware
Vendor:	Mellanox Technologies
Model:	MT26418 ConnectX
Switch Model:	Mellanox MT48436 InfiniScale-IV
Number of Switches:	128
Number of Ports:	36
Data Rate:	InfiniBand 4x QDR
Firmware:	4020001
Topology:	Bristle hypercube with double dimensional links
Primary Use:	MPI traffic

Interconnect Description: InfiniBand (I/O)

Hardware
Vendor:	Mellanox Technologies
Model:	MT26418 ConnectX
Switch Model:	Mellanox MT48436 InfiniScale-IV
Number of Switches:	64
Number of Ports:	36
Data Rate:	InfiniBand 4x QDR
Firmware:	4020001
Topology:	Bristle hypercube with double dimensional links
Primary Use:	I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_BUFS_THRESHOLD=1
   export MPI_DSM_DISTRIBUTE=yes
   export MPI_IB_RAILS=2
   ulimit -s unlimited
 BIOS settings:
   AMI BIOS version 8.15
   Hyper-Threading Technology enabled (default)
   Intel Turbo Boost Technology enabled (default)
   Intel Turbo Boost Technology activated in the OS via
     /etc/init.d/acpid start
     /etc/init.d/powersaved start
     powersave -f
 Interconnect Data Rate:
   The system interconnect has DDR InfiniBand HCAs,
   while the switches and cables run up to QDR rate.
 Job Placement:
   Each MPI job was assigned to a topologically compact set
   of nodes, i.e. the minimal needed number of switches was
   used for each job: 2 switches for 16/32/64 ranks,
   4 switches for 128 ranks, 8 switches for 256 ranks,
   16 switches for 512 ranks, 32 switches for 1024 ranks,
   64 switches for 2048 ranks and 128 switches for
   4096 ranks.
