SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Atlantis (Intel Xeon X5482, 3.20 GHz)

MPI2007 license: 13 Test date: Jan-2010
Test sponsor: Intel Corporation Hardware Availability: Sep-2008
Tested by: Pavel Shelepugin Software Availability: Sep-2009

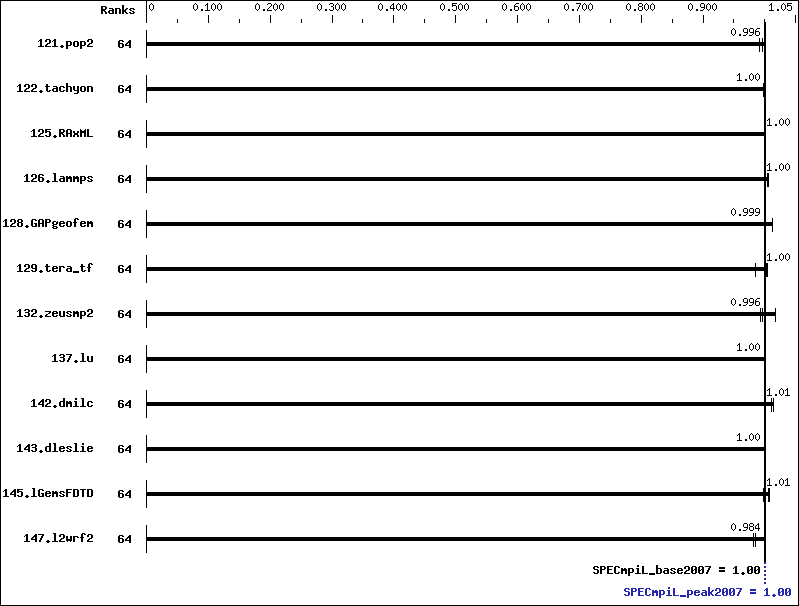

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 64 3927 0.991 3907 0.996 3892 1.00  64 3927 0.991 3907 0.996 3892 1.00
122.tachyon 64 1944 1.00  1949 0.997 1945 1.00  64 1944 1.00  1949 0.997 1945 1.00
125.RAxML 64 2918 1.00  2920 1.00  2918 1.00  64 2918 1.00  2920 1.00  2918 1.00
126.lammps 64 2443 1.01  2449 1.00  2448 1.00  64 2443 1.01  2449 1.00  2448 1.00
128.GAPgeofem 64 5941 0.999 5938 0.999 5865 1.01  64 5941 0.999 5938 0.999 5865 1.01
129.tera_tf 64 1096 1.00  1115 0.985 1095 1.00  64 1096 1.00  1115 0.985 1095 1.00
132.zeusmp2 64 2134 0.993 2128 0.996 2083 1.02  64 2134 0.993 2128 0.996 2083 1.02
137.lu 64 4195 1.00  4203 1.00  4202 1.00  64 4195 1.00  4203 1.00  4202 1.00
142.dmilc 64 3630 1.01  3632 1.01  3645 1.01  64 3630 1.01  3632 1.01  3645 1.01
143.dleslie 64 3100 1.00  3101 1.00  3097 1.00  64 3100 1.00  3101 1.00  3097 1.00
145.lGemsFDTD 64 4422 0.998 4385 1.01  4381 1.01  64 4422 0.998 4385 1.01  4381 1.01
147.l2wrf2 64 8353 0.982 8196 1.00  8336 0.984 64 8353 0.982 8196 1.00  8336 0.984
Hardware Summary
Type of System: Homogeneous
Compute Node: Atlantis Node
Interconnect: Gigabit Ethernet
File Server Node: Panasas Fileserver
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 64
Total Threads: 64
Total Memory: 128 GB
Base Ranks Run: 64
Minimum Peak Ranks: 64
Maximum Peak Ranks: 64
Software Summary
C Compiler: Intel C++ Compiler 11.1.035 for Linux
C++ Compiler: Intel C++ Compiler 11.1.035 for Linux
Fortran Compiler: Intel Fortran Compiler 11.1.035 for Linux
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 3.2.2 for Linux
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Atlantis Node

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: Intel
Model: SR1560SF
CPU Name: Intel Xeon X5482
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: 1600 MHz FSB
CPU MHz: 3200
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (FBDIMM 8x2-GB 667 MHz)
Disk Subsystem: Seagate Barracuda ES 250 GB ST3250620NS
Other Hardware: None
Adapter: Intel (ESB2) 82563EB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel (ESB2) 82563EB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: None
Operating System: RedHat EL 5 Update 2, kernel 2.6.18-92
Local File System: Linux/ext2
Shared File System: NFS
System State: Multi-User
Other Software: PBS Pro 8.0

Node Description: Panasas Fileserver

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Panasas
Model: ActiveStor 3050
CPU Name: --
CPU(s) orderable: 1-2 chips
Chips enabled: 1
Cores enabled: 1
Cores per chip: 1
Threads per core: 1
CPU Characteristics: --
CPU MHz: 0
Primary Cache: None
Secondary Cache: None
L3 Cache: None
Other Cache: None
Memory: 1 MB
Disk Subsystem: 64 disks, 250GB/disk, 16TB total, 4 Shelves
Other Hardware: None
Adapter: --
Number of Adapters: 1
Slot Type: --
Data Rate: 1Gbps Ethernet
Ports Used: 16
Interconnect Type: Ethernet
Software
Adapter: --
Adapter Driver: --
Adapter Firmware: N/A
Operating System: 3.0.7.c-241513.8
Local File System: PanFS
Shared File System: DirectFlow
System State: Multi-User
Other Software: None

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Cisco
Model: Cisco Catalyst 4506
Switch Model: Cisco Catalyst 4506
Number of Switches: 1
Number of Ports: 144
Data Rate: 1Gbps Ethernet
Firmware: --
Topology: Star
Primary Use: MPI traffic, FS traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpirun command was used to start MPI jobs. This command starts
   an independent ring of mpd daemons, launches an MPI job, and shuts
   down the mpd ring upon the job termination.
   The mpirun command automatically detects if an MPI job is submitted
   in a session allocated using a job scheduler (like PBS Pro). In this
   case, the mpirun command extracts the host list from the respective
   environment and uses these nodes automatically.

 PBS Pro was used for job submission. It has no impact on performance.
   Can be found at: http://www.altair.com

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK

Base Optimization Flags

C benchmarks:

 -O2

C++ benchmarks:

126.lammps:  -O2

Fortran benchmarks:

 -O2

Benchmarks using both Fortran and C:

 -O2

Peak Optimization Flags

C benchmarks:

122.tachyon:  basepeak = yes
125.RAxML:  basepeak = yes
142.dmilc:  basepeak = yes

C++ benchmarks:

126.lammps:  basepeak = yes

Fortran benchmarks:

129.tera_tf:  basepeak = yes
137.lu:  basepeak = yes
143.dleslie:  basepeak = yes
145.lGemsFDTD:  basepeak = yes

Benchmarks using both Fortran and C:

121.pop2:  basepeak = yes
128.GAPgeofem:  basepeak = yes
132.zeusmp2:  basepeak = yes
147.l2wrf2:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.20100202.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.20100202.xml.
