| MPI2007 license: | 13 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Dec-2007 |
| Tested by: | Pavel Shelepugin | Software Availability: | Aug-2008 |

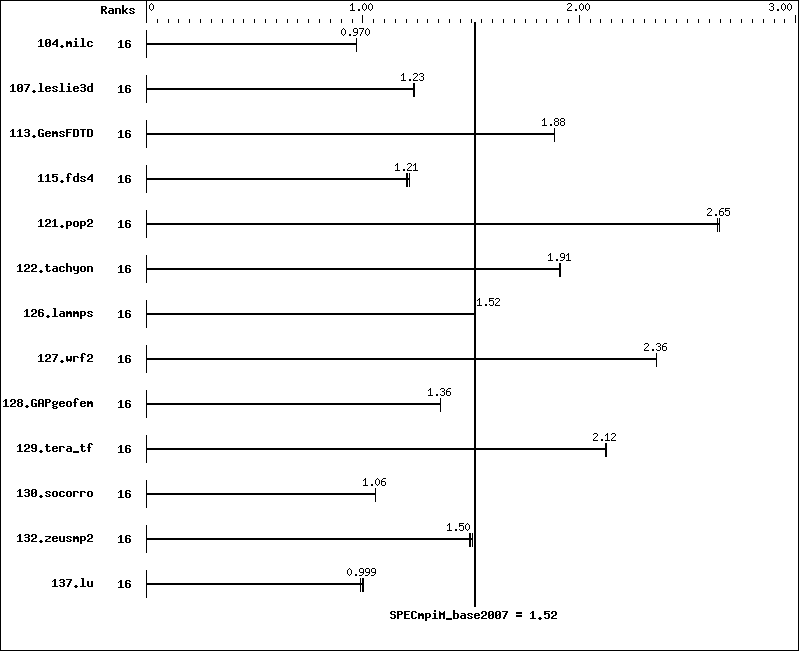

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 104.milc | 16 | 1614 | 0.970 | 1614 | 0.969 | 1612 | 0.971 | |||||||
| 107.leslie3d | 16 | 4230 | 1.23 | 4236 | 1.23 | 4221 | 1.24 | |||||||
| 113.GemsFDTD | 16 | 3347 | 1.88 | 3349 | 1.88 | 3343 | 1.89 | |||||||
| 115.fds4 | 16 | 1606 | 1.21 | 1618 | 1.21 | 1622 | 1.20 | |||||||
| 121.pop2 | 16 | 1566 | 2.64 | 1560 | 2.65 | 1559 | 2.65 | |||||||
| 122.tachyon | 16 | 1464 | 1.91 | 1464 | 1.91 | 1463 | 1.91 | |||||||
| 126.lammps | 16 | 1923 | 1.52 | 1922 | 1.52 | 1922 | 1.52 | |||||||
| 127.wrf2 | 16 | 3308 | 2.36 | 3310 | 2.36 | 3311 | 2.35 | |||||||
| 128.GAPgeofem | 16 | 1522 | 1.36 | 1521 | 1.36 | 1521 | 1.36 | |||||||
| 129.tera_tf | 16 | 1306 | 2.12 | 1303 | 2.12 | 1305 | 2.12 | |||||||
| 130.socorro | 16 | 3609 | 1.06 | 3610 | 1.06 | 3610 | 1.06 | |||||||
| 132.zeusmp2 | 16 | 2079 | 1.49 | 2070 | 1.50 | 2062 | 1.50 | |||||||
| 137.lu | 16 | 3713 | 0.990 | 3659 | 1.00 | 3678 | 0.999 | |||||||
| Hardware Summary | |
|---|---|
| Type of System: | Homogeneous |
| Compute Node: | Endeavor Node |
| Interconnects: | IB Switch Gigabit Ethernet |
| File Server Node: | Panasas Fileserver |
| Total Compute Nodes: | 2 |
| Total Chips: | 4 |
| Total Cores: | 16 |
| Total Threads: | 16 |
| Total Memory: | 32 GB |
| Base Ranks Run: | 16 |
| Minimum Peak Ranks: | -- |
| Maximum Peak Ranks: | -- |
| Software Summary | |
|---|---|
| C Compiler: | Intel C++ Compiler 10.1 for Linux (10.1.018) |
| C++ Compiler: | Intel C++ Compiler 10.1 for Linux (10.1.018) |
| Fortran Compiler: | Intel Fortran Compiler 10.1 for Linux (10.1.018) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| MPI Library: | Intel MPI Library 3.1 for Linux (3.1.038) |
| Other MPI Info: | None |
| Pre-processors: | No |
| Other Software: | Intel MPI Library 3.1 for Linux Multi-Purpose Daemon (MPD) |
Node Description: Endeavor Node
| Hardware | |
|---|---|
| Number of nodes: | 2 |
| Uses of the node: | compute |
| Vendor: | Intel |
| Model: | SR1560SF |
| CPU Name: | Intel Xeon CPU E5462 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 8 |
| Cores per chip: | 4 |
| Threads per core: | 1 |
| CPU Characteristics: | 1600 MHz FSB |
| CPU MHz: | 2800 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (FBDIMM 16x1-GB 667 MHz) |
| Disk Subsystem: | Seagate Barracuda ES 250 GB ST3250620NS |
| Other Hardware: | None |
| Adapter: | Intel (ESB2) 82563EB Dual-Port Gigabit Ethernet Controller |
| Number of Adapters: | 1 |
| Slot Type: | PCI-Express x8 |
| Data Rate: | 1Gbps Ethernet |
| Ports Used: | 1 |
| Interconnect Type: | Ethernet |
| Adapter: | Mellanox MHGH28-XTC |
| Number of Adapters: | 1 |
| Slot Type: | PCIe x16 Gen2 |
| Data Rate: | InfiniBand 4x DDR |
| Ports Used: | 1 |
| Interconnect Type: | InfiniBand |
| Software | |
|---|---|
| Adapter: | Intel (ESB2) 82563EB Dual-Port Gigabit Ethernet Controller |
| Adapter Driver: | e1000 |
| Adapter Firmware: | None |
| Adapter: | Mellanox MHGH28-XTC |
| Adapter Driver: | OFED 1.3.1 |
| Adapter Firmware: | 2.5.0 |
| Operating System: | RedHat EL 4 Update 4 |
| Local File System: | Linux/ext3 |
| Shared File System: | DirectFlow |
| System State: | Multi-User |
| Other Software: | PBS Pro 8.0 |
Node Description: Panasas Fileserver
| Hardware | |
|---|---|
| Number of nodes: | 1 |
| Uses of the node: | fileserver |
| Vendor: | Panasas |
| Model: | ActiveStor 3050 |
| CPU Name: | -- |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 1 |
| Cores enabled: | 1 |
| Cores per chip: | 1 |
| Threads per core: | 1 |
| CPU Characteristics: | -- |
| CPU MHz: | 0 |
| Primary Cache: | None |
| Secondary Cache: | None |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 1 MB |
| Disk Subsystem: | 140 disks, 250GB/disk, 35TB total, 7 Shelves |
| Other Hardware: | None |
| Adapter: | -- |
| Number of Adapters: | 1 |
| Slot Type: | -- |
| Data Rate: | 1Gbps Ethernet |
| Ports Used: | 4 |
| Interconnect Type: | Ethernet |
| Software | |
|---|---|
| Adapter: | -- |
| Adapter Driver: | -- |
| Adapter Firmware: | N/A |
| Operating System: | 2.3.7.a-195733.1 |
| Local File System: | PanFS |
| Shared File System: | DirectFlow |
| System State: | Multi-User |
| Other Software: | None |
Interconnect Description: IB Switch
| Hardware | |
|---|---|
| Vendor: | Cisco |
| Model: | Cisco SFS 7024D |
| Switch Model: | Cisco SFS 7024D |
| Number of Switches: | 1 |
| Number of Ports: | 288 |
| Data Rate: | InfiniBand 4x DDR |
| Firmware: | 4.1.1.1.11 |
| Topology: | Single switch |
| Primary Use: | MPI traffic |
Interconnect Description: Gigabit Ethernet
| Hardware | |
|---|---|
| Vendor: | Cisco |
| Model: | Cisco Catalyst 4510 |
| Switch Model: | Cisco Catalyst 4510 |
| Number of Switches: | 1 |
| Number of Ports: | 332 |
| Data Rate: | 1Gbps Ethernet |
| Firmware: | -- |
| Topology: | Star |
| Primary Use: | Cluster File System |
General Notes
Required alternate sources: 129.tera_tf: fixbuffer Optional alternate sources: 104.milc: calloc 113.GemsFDTD: maxprocandstop
Base Compiler Invocation
C benchmarks:
| mpiicc |
C++ benchmarks:
| 126.lammps: | mpiicpc |
Fortran benchmarks:
| mpiifort |
Benchmarks using both Fortran and C:
| mpiicc mpiifort |
Base Portability Flags
| 121.pop2: | -DSPEC_MPI_CASE_FLAG |
| 126.lammps: | -DMPICH_IGNORE_CXX_SEEK |
| 127.wrf2: | -DSPEC_MPI_CASE_FLAG -DSPEC_MPI_LINUX |
| 130.socorro: | -DSPEC_EIGHT_BYTE_LONG |
