| MPI2007 license: | 4 | Test date: | Jun-2008 |
|---|---|---|---|
| Test sponsor: | SGI | Hardware Availability: | Feb-2008 |
| Tested by: | SGI | Software Availability: | Apr-2008 |

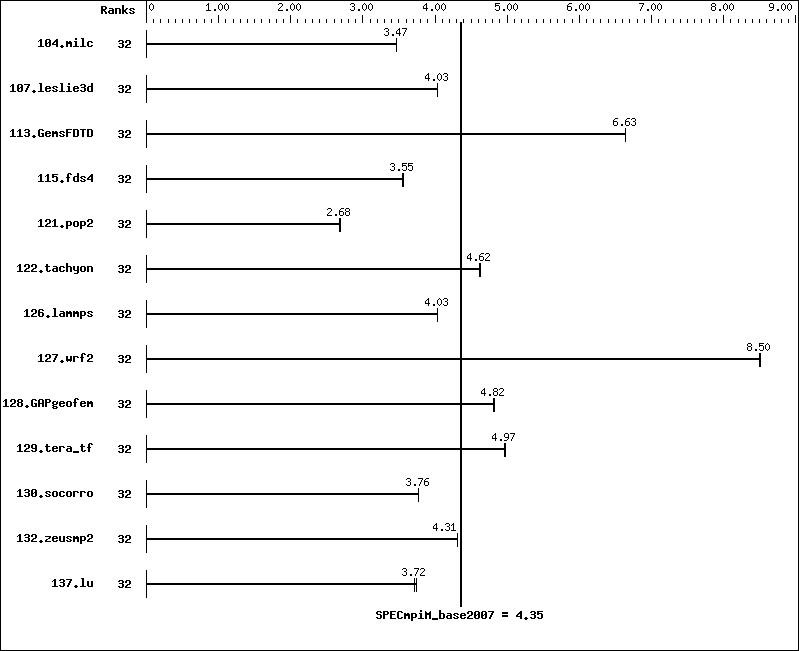

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 104.milc | 32 | 452 | 3.47 | 452 | 3.47 | |||||||||
| 107.leslie3d | 32 | 1295 | 4.03 | 1296 | 4.03 | |||||||||
| 113.GemsFDTD | 32 | 951 | 6.63 | 950 | 6.64 | |||||||||
| 115.fds4 | 32 | 548 | 3.56 | 550 | 3.55 | |||||||||
| 121.pop2 | 32 | 1536 | 2.69 | 1541 | 2.68 | |||||||||
| 122.tachyon | 32 | 605 | 4.62 | 604 | 4.63 | |||||||||
| 126.lammps | 32 | 722 | 4.04 | 723 | 4.03 | |||||||||
| 127.wrf2 | 32 | 917 | 8.50 | 915 | 8.52 | |||||||||
| 128.GAPgeofem | 32 | 429 | 4.82 | 429 | 4.82 | |||||||||
| 129.tera_tf | 32 | 557 | 4.97 | 557 | 4.97 | |||||||||
| 130.socorro | 32 | 1014 | 3.76 | 1014 | 3.76 | |||||||||
| 132.zeusmp2 | 32 | 719 | 4.31 | 720 | 4.31 | |||||||||
| 137.lu | 32 | 982 | 3.74 | 989 | 3.72 | |||||||||
| Software Summary | |
|---|---|
| C Compiler: | Intel C Compiler for Linux Version 10.1, Build 20080312 |
| C++ Compiler: | Intel C++ Compiler for Linux Version 10.1, Build 20080312 |
| Fortran Compiler: | Intel Fortran Compiler for Linux Version 10.1, Build 20080312 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| MPI Library: | Intel MPI 3.1.038 |
| Other MPI Info: | OFED 1.3 |
| Pre-processors: | None |
| Other Software: | None |
Node Description: SGI Altix XE 320 Compute Node
| Hardware | |
|---|---|
| Number of nodes: | 8 |
| Uses of the node: | compute |
| Vendor: | SGI |
| Model: | SGI Altix XE 320 (Intel Xeon X5272, 3.4 GHz) |
| CPU Name: | Intel Xeon X5272 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 4 |
| Cores per chip: | 2 |
| Threads per core: | 1 |
| CPU Characteristics: | Dual Core, 3.4 GHz |
| CPU MHz: | 3392 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8*2GB PC2-6400 CL5-5-5 FB-DIMMs) |
| Disk Subsystem: | None |
| Other Hardware: | None |
| Adapter: | Mellanox MT25204 InfiniHost III Lx IB DDR (PCIe x8 Gen1 2.5 GT/s) |
| Number of Adapters: | 1 |
| Slot Type: | PCIe x8 Gen1 |
| Data Rate: | InfiniBand 4x DDR |
| Ports Used: | 1 |
| Interconnect Type: | InfiniBand |
| Software | |
|---|---|
| Adapter: | Mellanox MT25204 InfiniHost III Lx IB DDR (PCIe x8 Gen1 2.5 GT/s) |
| Adapter Driver: | OFED-1.3 |
| Adapter Firmware: | 1.2.0 |
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1 Kernel 2.6.16.46-0.12-smp |
| Local File System: | NFSv3 |
| Shared File System: | NFSv3 IPoIB |
| System State: | Multi-user, run level 3 |
| Other Software: | SGI ProPack 5 for Linux Service Pack 5 |
Node Description: SGI InfiniteStorage NAS/SAN
| Hardware | |
|---|---|
| Number of nodes: | 1 |
| Uses of the node: | fileserver |
| Vendor: | SGI |
| Model: | SGI Altix 450 Density System (Itanium 2 Processor 9030 1.6GHz/8M) |
| CPU Name: | Dual-Core Intel Itanium 2 9030 |
| CPU(s) orderable: | 1-38 chips |
| Chips enabled: | 2 |
| Cores enabled: | 4 |
| Cores per chip: | 2 |
| Threads per core: | 1 |
| CPU Characteristics: | 533 MHz FSB |
| CPU MHz: | 1594 |
| Primary Cache: | 16 KB I + 16 KB D on chip per core |
| Secondary Cache: | 1 MB I + 256 KB D on chip per core |
| L3 Cache: | 4 MB I+D on chip per core |
| Other Cache: | None |
| Memory: | 48 GB (24*2GB DDR2-400 DIMMS) |
| Disk Subsystem: | 9.3 TB RAID 5 64 x 146 GB FibreChannel (Seagate Cheetah 15000 rpm) |
| Other Hardware: | None |
| Adapter: | Mellanox MT25208 InfiniHost III Ex (PCIe x8 Gen1 2.5 GT/s) |
| Number of Adapters: | 2 |
| Slot Type: | PCIe x8 Gen1 |
| Data Rate: | InfiniBand 4x DDR |
| Ports Used: | 2 |
| Interconnect Type: | InfiniBand |
| Software | |
|---|---|
| Adapter: | Mellanox MT25208 InfiniHost III Ex (PCIe x8 Gen1 2.5 GT/s) |
| Adapter Driver: | OFED-1.3 |
| Adapter Firmware: | 5.3.0 |
| Operating System: | SUSE Linux Enterprise Server 10 (ia64) SP1 Kernel 2.6.16.54-0.2.5-default |
| Local File System: | xfs |
| Shared File System: | -- |
| System State: | Multi-user, run level 3 |
| Other Software: | SGI ProPack 5 for Linux Service Pack 5 |
Interconnect Description: InfiniBand (MPI)
| Hardware | |
|---|---|
| Vendor: | Voltaire |
| Model: | MT25204 InfiniHost III Lx |
| Switch Model: | Voltaire ISR 9024D-M |
| Number of Switches: | 1 |
| Number of Ports: | 24 |
| Data Rate: | InfiniBand 4x DDR |
| Firmware: | 3.4.5 |
| Topology: | Single switch |
| Primary Use: | MPI traffic |
Interconnect Description: InfiniBand (I/O)
| Hardware | |
|---|---|
| Vendor: | Voltaire |
| Model: | MT25204 InfiniHost III Lx |
| Switch Model: | Voltaire ISR 9024D-M |
| Number of Switches: | 1 |
| Number of Ports: | 24 |
| Data Rate: | InfiniBand 4x DDR |
| Firmware: | 3.4.5 |
| Topology: | Single switch |
| Primary Use: | I/O traffic |
General Notes
Required alternate sources: 129.tera_tf: fixbuffer
Base Compiler Invocation
C benchmarks:
| mpiicc |
C++ benchmarks:
| 126.lammps: | mpiicpc |
Fortran benchmarks:
| mpiifort |
Benchmarks using both Fortran and C:
| mpiicc mpiifort |
Base Portability Flags
| 121.pop2: | -DSPEC_MPI_CASE_FLAG |
| 126.lammps: | -DMPICH_IGNORE_CXX_SEEK |
| 127.wrf2: | -DSPEC_MPI_CASE_FLAG -DSPEC_MPI_LINUX |
