SPEC Seal of Reviewal SPECmail2008 Result
Copyright © 2008 Standard Performance Evaluation Corporation
Sun Microsystems Sun Java System Messaging Server 6.2 JES4 SPECmail2008 sessions/hour = 15,868
SPEC license # 6 Tested by:
Sun Microsystems
Test date:
Dec-2008
Hardware Avail:
Jul-2008
Software Avail:
Sep-2006

15,868 SPECmail2008 sessions per hour is equivalent to 3,300 SPECmail_MSEnt2008 users.

Detail Summary | General Notes

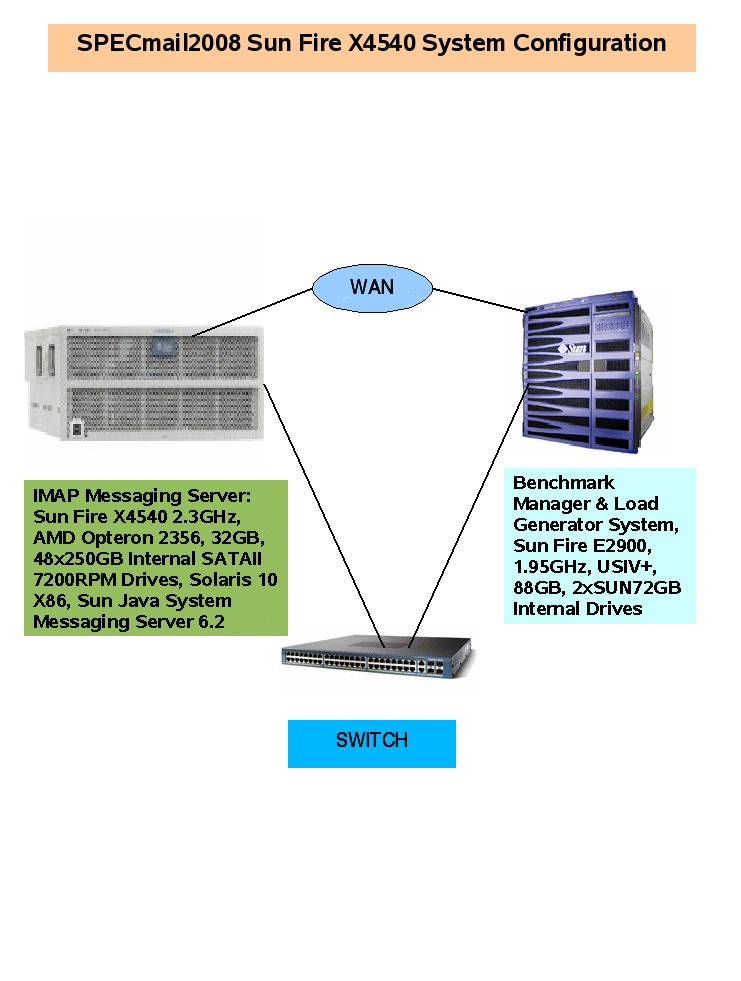

System configurations: SMTP+IMAP+LDAP Server | Load Generator | Configuration diagram


Summary Results
Function Response
time limit
(seconds)
Required
Percentage
Compliant
Percentage Compliant
100%
SMTP Connect 5 >95% 100.00%
SMTP Data 5 >95% 100.00%
IMAP APPEND 5 >95% 100.00%
IMAP Connect 5 >95% 100.00%
IMAP EXPUNGE 5 >95% 98.82%
IMAP FETCH_NUM_BODYALL 5 >95% 98.27%
IMAP FETCH_RANGE_ENVELOPE_BODYPEEK_HEADERFIELDS_FLAGS_INTERNALDATE_RFC822SIZE_UID 5 >95% 100.00%
IMAP LIST 5 >95% 100.00%
IMAP LSUB_NULL_WILDCARD 5 >95% 100.00%
IMAP SELECT_FOLDER 5 >95% 100.00%
IMAP SELECT_INBOX 5 >95% 100.00%
IMAP STORE_NUM_SET_FLAGS_DELETED 5 >95% 100.00%
IMAP UID_STORE_NUM_SET_FLAGS_DELETED 5 >95% 100.00%
IMAP UID_FETCH_RANGE_UID_BODYPEEK_HEADERFIELDS_FLAGS_RFC822SIZE 5 >95% 98.33%
IMAP UID_STORE_NUM_SET_FLAGS_DELETED 5 >95% 100.00%
Error Rate NA <1% 0.00%

SMTP+IMAP+LDAP Server (1 system)
Software
SMTP,IMAP,LDAP Software: Sun Java System Messaging Server 6.2 JES4 Operating System: Solaris10[TM] X86 5/08 Operating Environment
Availability: Jan-2006 File System: zfs
Hardware
Vendor: Sun Microsystems CPU: AMD Opteron 2356
Model Name: Sun Fire X4540 CPU MHz: 2300
Availability: Jul-2008 CPUs Enabled: 8
Disk Subsystem: 48x250GB SATAII, 7200RPM Internal hot-swappable disk drives for a total of max 12 TB of raw storage SW RAID enabled by RAID-Z in Solaris ZFS Primary Cache: 64KB(D) + 64KB(I) on chip, per core
Memory (MB): 32768 Secondary Cache: 2 MB I+D on chip per chip, 512KB per core
Network: 1 Sun[TM] Gigaswift Ethernet onboard Controller, 1Gb/s Other Cache: 2MB L3 cache per processor
# of Systems: 1 Other: N/A
Notes / Tuning Information
This Mailserver host is the single node SMTP+IMAP+LDAP server
Notes/Tuning Information
The Mailserver is configured with 46x250GB internal SATAII disk drives with SUN ZFS and 8xZPOOLs of ZFS volumes configuring LDAP server, Mailstore, LOG, and Queue
*SMTP+IMAP+LDAP Tuning only, not any installation steps
**Dispatcher Tunings
MIN_PROCS=50
MAX_PROCS=150
MIN_CONNS=30
MAX_CONNS=50
MAX_HANDSOFFS=100
**Job Controller Tuning
IMS_POOL job_limit=12
MAX_MESSAGES=1000000
service.imap.numprocesses=6
store.dbcachesize=640000000
store.dbtmpdir=/tmp/mboxlist
nsslapd-dbcachesize=3221225472
service.authcachesize=500000
service.authcachettl=7200

Load Generator (1 system)
Software
JVM: Java(TM) 2 Runtime Environment, Standard Edition (build 1.5.0_01-b08) ((no JIT)) Operating System: Solaris 5.10
Availability: Sep-2006 File System: ufs
Hardware
Vendor: Sun MIcrosystems CPU: UltraSPARC IV+
Model Name: Sun Fire E2900 CPU MHz: 1950
Availability: Jul-2006 CPUs Enabled: 22
Disk Subsystem: 2 x 72GB Primary Cache: 64KBD + 32KBI on chip
Memory (MB): 88GB Secondary Cache: 16MB external cache
Network: Onboard One Gigabit Ethernet Other Cache: 32MB shared External cache
# of Systems: 1 Other: N/A
Notes / Tuning Information
Benchmark Manager+Load Generator+SMTP Sink
Notes/Tuning Information

General Notes / Tuning Information
*Following are the OS Tunings only for all the Servers and Clients, not any installation steps
**set rlim_fd_max=1048576: Hard limit on the open file descripters for a single process
**set autoup=600: Controls the frequency in seconds of entire physical memory to be scanned for dirty pages
**set tune_t_fsflushr=1:Reduces fsflush daemon overhead
**set ip:ip_squeue_fanout=1:
**set ip:ip_squeue_bind = 0:
**set tcp:tcp_conn_hash_size = 16384
*Following are the NETWORK Configurations and Tunings
**All the network connections and the routing are resolved using UNIX host file
**/usr/sbin/ndd -set /dev/tcp tcp_recv_hiwat 400000
**/usr/sbin/ndd -set /dev/tcp tcp_xmit_hiwat 400000
**/usr/sbin/ndd -set /dev/tcp tcp_conn_req_max_q 16384
**/usr/sbin/ndd -set /dev/tcp tcp_conn_req_max_q0 16384
**/usr/sbin/ndd -set /dev/tcp tcp_max_buf 4194304
**/usr/sbin/ndd -set /dev/tcp tcp_cwnd_max 2097152
**/usr/sbin/ndd -set /dev/tcp tcp_smallest_anon_port 8192
**/usr/sbin/ndd -set /dev/tcp tcp_keepalive_interval 60000
**/usr/sbin/ndd -set /dev/tcp tcp_ip_abort_interval 60000
**/usr/sbin/ndd -set /dev/tcp tcp_naglim_def 1
**/usr/sbin/ndd -set /dev/tcp tcp_mss_min 108
**/usr/sbin/ndd -set /dev/ip ip_respond_to_echo_broadcast 0
**/usr/sbin/ndd -set /dev/ip ip_forward_directed_broadcasts 0
**/usr/sbin/ndd -set /dev/ip ip_strict_dst_multihoming 1
**/usr/sbin/ndd -set /dev/ip ip_forwarding 0
**/usr/sbin/ndd -set /dev/ip ip_forward_src_routed 0
**/usr/sbin/ndd -set /dev/tcp tcp_time_wait_interval 60000
**All total 6 Java load generator interfaces were configured on the E2900 client at the 1200-1205 ports for all IMAP and SMTP users, 1 Java load generator instance was configured on the 1100 port for the SMTP sink. Following Java options were used for all the load generators:
**** java -d64 -Xms4096m -Xmx4096m -XX:+AggressiveHeap
The Benchmark runs through a private network between the Load Generators and the SUT via a Gigabit Ethernet Switch
Sun Microsystems, Inc.: Sun Fire X4540
Sun Microsystems, Inc.: Sun Java[TM] System Messaging Server 6.2 JES4


For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright © 2008 Standard Performance Evaluation Corporation

First published at SPEC.org on 05-Jan-2009

Benchmark run on Mon Dec 01 10:06:00 EST 2008 by SPECimap v1.0.718.b (200805301202)
Report generated on Mon Jan 05 16:20:42 EST 2009 by SPECimap v1.0 (200806181834)
