SPECjbb2015 Report for jbb2015-20260521-01711 : 224298 max-jOPS ; 119256 critical-jOPS

SUT Description

Hardware hw_1
Name	TR2210 H6
Vendor	TAEJIN T&S
Vendor URL	https://tjtns.co.kr/
Available	Jan-2025
Model	TR2210 H6
Form Factor	2U
CPU Name	Intel(R) Xeon(R) 6527P
CPU Characteristics	24-Core, 3.0GHz, 144MB L3 Cache (Turbo Boost Technology up to 4.20 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	48
Cores Per Chip	24
Threads Per System	96
Threads Per Core	2
Version	1.3.2
CPU Frequency (MHz)	3000
Primary Cache	64KB(I)+48KB(D) per core
Secondary Cache	2MB(I+D) per core
Tertiary Cache	144MB(I+D) on chip per chip
Other Cache	None
Disk	1x 3.5TB NVMe, 4x 2.7TB Disk
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	2Rx4 PC5-38400 ECC Registered
# and type of Network Interface Cards (NICs)	4 x 10 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1500W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux 9.7
Vendor	Red Hat
Vendor URL	https://www.redhat.com/
Version	5.14.0-611.5.1.el9_7.x86_64
Available	Nov-2025
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 26.0.1
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot(TM) 64-Bit Server VM, version 26.0.1
Available	Sep-2026
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	None
Notes	BIOS Configuration: Dell Controlled Turbo Setting to Enabled Hardware Prefetcher set to Enabled UPI Prefetch set to Enabled LLc Prefetch set to Enabled

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	ulimit -n 1024000 echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag echo 10 > /proc/sys/vm/swappiness echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning	numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -Xms28g -Xmx28g -Xmn27g -XX:ParallelGCThreads=21
Tuning	numactl used to affinitize each Backend JVM to a specific CPU set, eg: Group 1: numactl --physcpubind=0,2,4,6,8,10,12,14,16,18,20,22,24,26,28,30,32,34,36,38,40,42,44,46 --localalloc Group 2: numactl --physcpubind=1,3,5,7,9,11,13,15,17,19,21,23,25,27,29,31,33,35,37,39,41,43,45,47 --localalloc Group 3: numactl --physcpubind=48,50,52,54,56,58,60,62,64,66,68,70,72,74,76,78,80,82,84,86,88,90,92,94 --localalloc Group 4: numactl --physcpubind=49,51,53,55,57,59,61,63,65,67,69,71,73,75,77,79,81,83,85,87,89,91,93,95 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning	numactl used to affinitize each TxInjector JVM to a specific CPU set, eg: Group 1: numactl --physcpubind=0,2,4,6,8,10,12,14,16,18,20,22,24,26,28,30,32,34,36,38,40,42,44,46 --localalloc Group 2: numactl --physcpubind=1,3,5,7,9,11,13,15,17,19,21,23,25,27,29,31,33,35,37,39,41,43,45,47 --localalloc Group 3: numactl --physcpubind=48,50,52,54,56,58,60,62,64,66,68,70,72,74,76,78,80,82,84,86,88,90,92,94 --localalloc Group 4: numactl --physcpubind=49,51,53,55,57,59,61,63,65,67,69,71,73,75,77,79,81,83,85,87,89,91,93,95 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	221458	224298	227137	229976	232815

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	55364	95586	140540	171772	188807	119256

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	2839 / 5678	- / 2839	- / 2839	- / 2839	- / 2839	- / 2839
1000us	119247 / 107890	5678 / 8518	2839 / 5678	2839 / 5678	- / 2839	- / 2839
5000us	207262 / 210102	193066 / 195905	133443 / 124925	90855 / 88016	36910 / 39749	- / 2839
10000us	210102 / 212941	201584 / 204423	161835 / 164674	133443 / 136282	53945 / 56784	2839 / 5678
25000us	210102 / 212941	204423 / 207262	190227 / 193066	176031 / 178870	99372 / 93694	2839 / 5678
50000us	212941 / 215780	207262 / 210102	198745 / 201584	187388 / 190227	139121 / 141960	22714 / 5678
75000us	212941 / 215780	207262 / 210102	198745 / 201584	195905 / 198745	170353 / 173192	56784 / 14196
100000us	212941 / 215780	207262 / 210102	204423 / 207262	198745 / 201584	187388 / 190227	110729 / 65302
200000us	215780 / 218619	210102 / 212941	207262 / 210102	204423 / 207262	204423 / 207262	170353 / 173192
500000us	218619 / 221458	215780 / 218619	210102 / 212941	210102 / 212941	207262 / 210102	201584 / 204423
1000000us	224298 / -	218619 / 221458	215780 / 218619	215780 / 218619	215780 / 218619	207262 / 210102

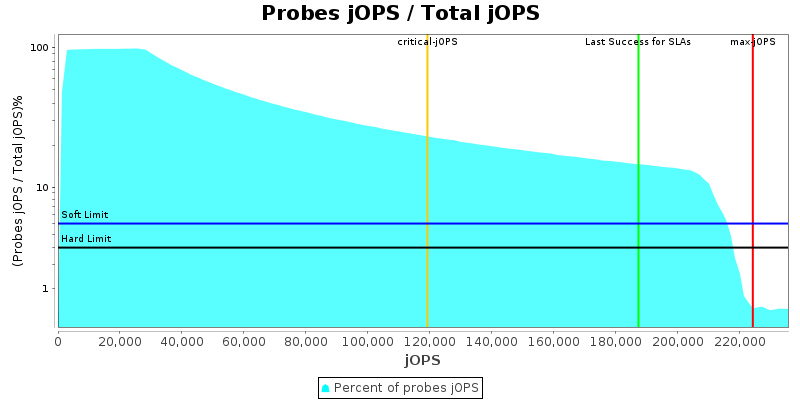

Number of probes

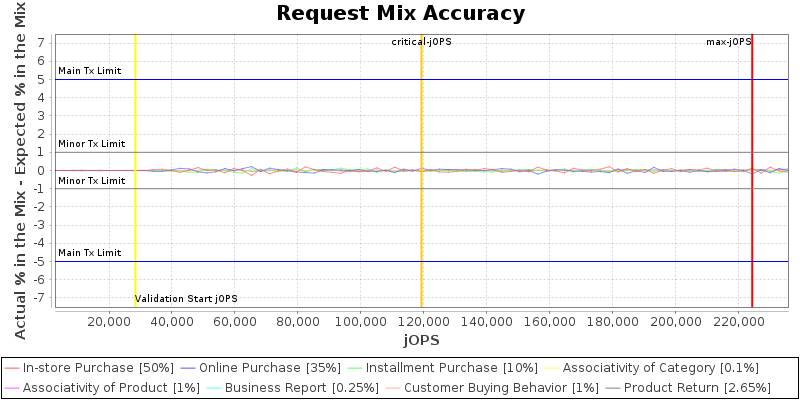

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

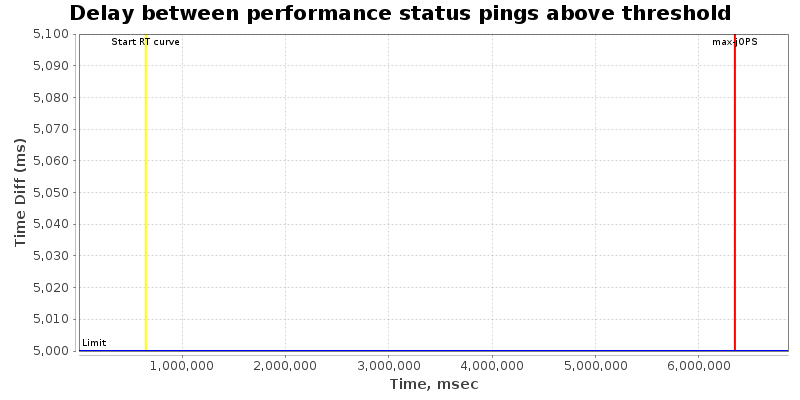

Delay between performance status pings during RT Curve (Response-Throughput Curve)

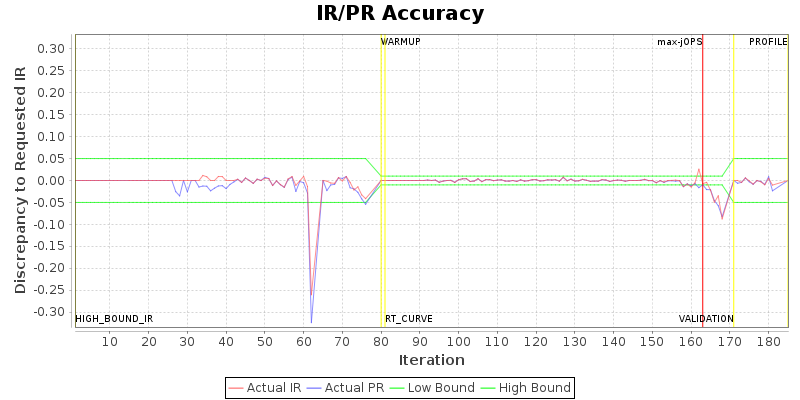

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.rtcurve.start	0.0	0.0
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	96	{Tier1=248, Tier2=8, Tier3=50}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	96	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 283921 IR

High-bound (settled) is 236668 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

TAEJIN T&S TR2210 H6	224298 SPECjbb2015-MultiJVM max-jOPS 119256 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Telecommunications Technology Association	Test Sponsor: Telecommunications Technology Association	Test location: TTA, Seongnam-city, Korea	Test date: May 19, 2026
SPEC license #: A83	Hardware Availability: Jan-2025	Software Availability: Apr-2026	Publication: Thu Jun 11 14:31:42 EDT 2026

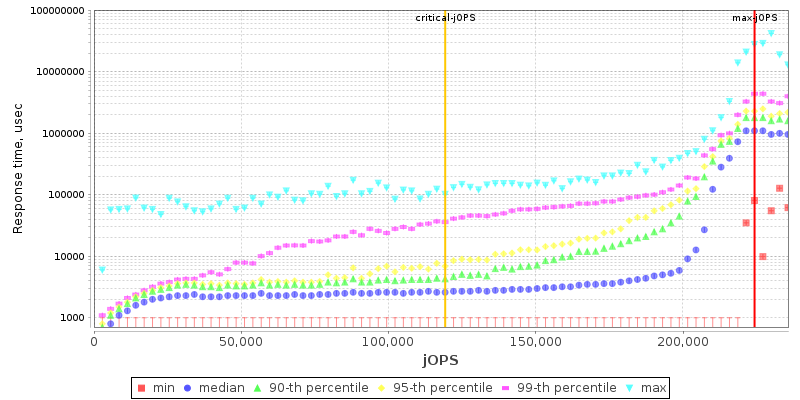

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
