SPECjbb2015 Report for jbb2015-20260513-01698 : 651446 max-jOPS ; 418762 critical-jOPS

SUT Description

Hardware hw_1
Name	Hyper SuperServer SYS-112HA-TN
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Jun-2026
Model	X14SBH-AP
Form Factor	1U
CPU Name	Intel Xeon 6990E+
CPU Characteristics	288 Core, 2.20 GHz, 576 MB L3 Cache (Turbo Boost Technology up to 3.20 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	288
Cores Per Chip	288
Threads Per System	288
Threads Per Core	1
Version	1.5b (05/04/2026)
CPU Frequency (MHz)	2200
Primary Cache	64 KB(I) + 32 KB(D) per core
Secondary Cache	288 MB (I+D) on chip per chip, 4 MB shared / 4 cores
Tertiary Cache	576 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB M.2 NVMe SSD
File System	xfs
Memory Amount (GB)	1152
# and size of DIMM(s)	12 x 96 GB
Memory Details	96 GB 2Rx4 PC5-8000B-R
# and type of Network Interface Cards (NICs)	2 x 1Gbit NICs
Power Supply Quantity and Rating (W)	2 x PWS-1K24A-1R
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux 9.6
Vendor	Red Hat
Vendor URL	https://www.redhat.com/
Version	5.14.0-570.12.1.el9_6.x86_64
Available	May-2025
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 26.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 26.0.1
Available	Apr-2026
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Workload Profile=HPC
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(9), jvm_TxInjector_1(9)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance sysctl net.core.wmem_max=12582912 sysctl net.core.rmem_max=12582912 sysctl net.ipv4.tcp_rmem='10240 87380 12582912' sysctl net.ipv4.tcp_wmem='10240 87380 12582912' sysctl net.core.netdev_max_backlog=655560 sysctl net.core.somaxconn=32768 sysctl net.ipv4.tcp_no_metrics_save=1 systemctl stop systemd-update-utmp-runlevel.service echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 450 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 45000*nodes > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages echo 0 > /proc/sys/kernel/sched_autogroup_enabled ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000 ulimit -n 819200 UserTasksMax=970000 DefaultTasksMax=970000 echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 9 > /sys/kernel/debug/sched/nr_migrate echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=32 -XX:+UseCompactObjectHeaders
Tuning	Used numactl to affinitize each Backend JVM to physical cores in a NUMA node. Group1: numactl --physcpubind=0-31 --localalloc Group2:numactl --physcpubind=32-63 --localalloc Group3:numactl --physcpubind=64-95 --localalloc Group4:numactl --physcpubind=96-127 --localalloc Group5: numactl --physcpubind=128-159 --localalloc Group6:numactl --physcpubind=160-191 --localalloc Group7:numactl --physcpubind=192-223 --localalloc Group8:numactl --physcpubind=224-255 --localalloc Group9: numactl --physcpubind=256-287 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize each Injector JVM to physical cores in a NUMA node. Group1: numactl --physcpubind=0-31 --localalloc Group2:numactl --physcpubind=32-63 --localalloc Group3:numactl --physcpubind=64-95 --localalloc Group4:numactl --physcpubind=96-127 --localalloc Group5: numactl --physcpubind=128-159 --localalloc Group6:numactl --physcpubind=160-191 --localalloc Group7:numactl --physcpubind=192-223 --localalloc Group8:numactl --physcpubind=224-255 --localalloc Group9: numactl --physcpubind=256-287 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	643782	651446	659110	666774	674438

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	295067	364043	448348	501997	532653	418762

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	15328 / 22992	7664 / 15328	- / 7664	- / 7664	- / 7664	- / 7664
1000us	505829 / 513493	30656 / 38320	22992 / 30656	15328 / 22992	15328 / 22992	- / 7664
5000us	597797 / 605462	551813 / 559477	436852 / 444516	306563 / 314227	191602 / 199266	15328 / 7664
10000us	597797 / 605462	559477 / 567141	482836 / 490500	413860 / 421524	291235 / 298899	15328 / 7664
25000us	605462 / 613126	582469 / 590133	536485 / 544149	498165 / 505829	360211 / 367875	15328 / 7664
50000us	613126 / 620790	590133 / 597797	551813 / 559477	528821 / 536485	444516 / 452180	168610 / 38320
75000us	613126 / 620790	597797 / 605462	559477 / 567141	544149 / 551813	498165 / 505829	245250 / 38320
100000us	620790 / 628454	597797 / 605462	567141 / 574805	551813 / 559477	528821 / 536485	344883 / 237586
200000us	628454 / 636118	613126 / 620790	582469 / 590133	574805 / 582469	559477 / 567141	490500 / 498165
500000us	643782 / 651446	628454 / 636118	613126 / 620790	605462 / 613126	597797 / 605462	567141 / 574805
1000000us	651446 / -	651446 / -	636118 / 643782	636118 / 643782	628454 / 636118	605462 / 613126

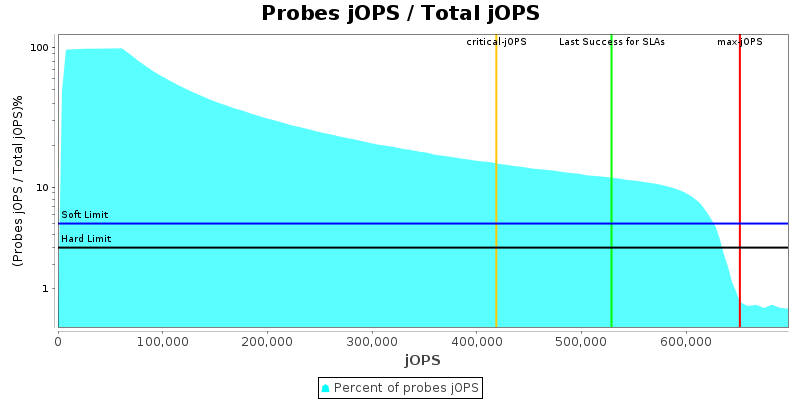

Number of probes

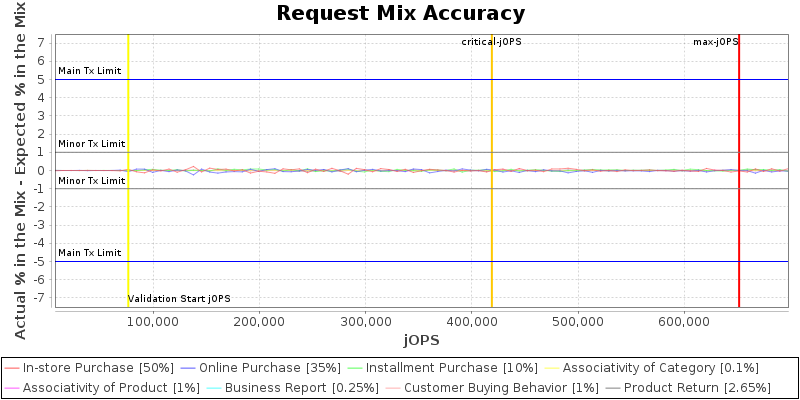

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

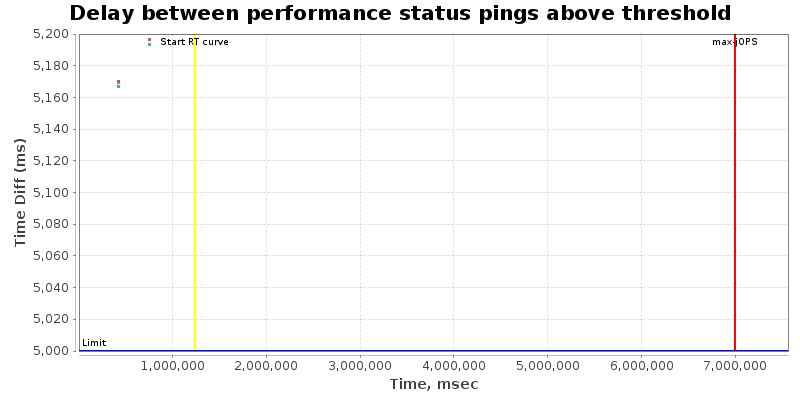

Delay between performance status pings during RT Curve (Response-Throughput Curve)

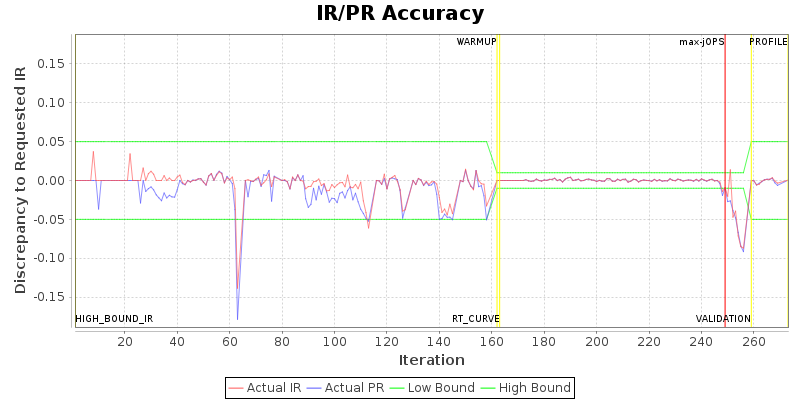

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.host	localhost	localhost
specjbb.controller.maxir.maxFailedPoints	3	5
specjbb.controller.port	24000	24000
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	288	{Tier1=288, Tier2=5, Tier3=32}
specjbb.group.count	1	9
specjbb.mapreducer.pool.size	288	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 766407 IR

High-bound (settled) is 681783 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Supermicro Hyper SuperServer SYS-112HA-TN	651446 SPECjbb2015-MultiJVM max-jOPS 418762 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: New Taipei City, Taiwan	Test date: May 7, 2026
SPEC license #: 001176	Hardware Availability: Jun-2026	Software Availability: May-2026	Publication: Thu Jun 4 13:15:51 EDT 2026

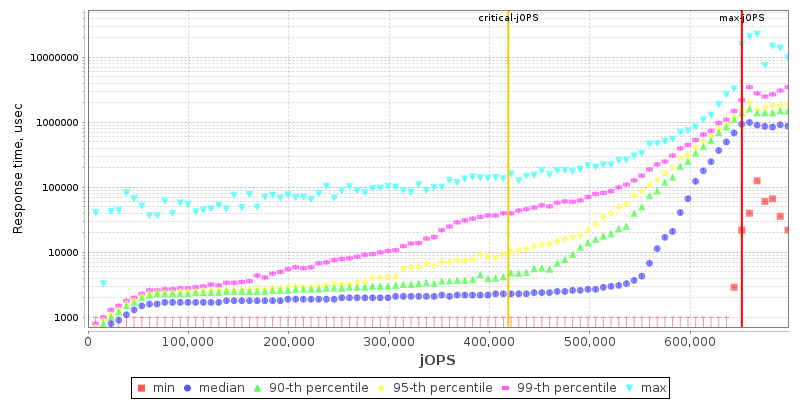

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 9) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
