SPECjbb2015 Report for jbb2015-20260429-01694 : 261207 max-jOPS ; 206238 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro WIO A+ Server AS -1115SV-WTNRT
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	May-2026
Model	H13SVW-NT
Form Factor	1U
CPU Name	AMD EPYC 8535P
CPU Characteristics	64 core, 2.0GHz, 256MB L3 Cache (Max. Boost Clock up to 4.5GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	2.0 03/23/2026
CPU Frequency (MHz)	2000
Primary Cache	32KB(I)+48KB(D) per core
Secondary Cache	1MB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.84 TB NVMe PCIe Gen5.0
File System	btrfs
Memory Amount (GB)	384
# and size of DIMM(s)	6 x 64GB
Memory Details	64GB 2Rx4 DDR5 RDIMM 6400 MT/s
# and type of Network Interface Cards (NICs)	1 x 1 GbE NIC
Power Supply Quantity and Rating (W)	2 x 800w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP7
Vendor	SUSE
Vendor URL	https://www.suse.com
Version	6.4.0-150700.53.34-default
Available	Jun-2025
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 26.0.1
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 26.0.1
Available	Apr-2026
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS2 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable Determinism Control = Manual Determinism Enable = Power TDP Control = Manual TDP = 210 Package Power Limit Control = Manual Package Power Limit = 210
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 150000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 350000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms83g -Xmx83g -Xmn80g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=80 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=100 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning	Used numactl to affinitize two Backend JVMs to a NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=1 --localalloc Group4: numactl --cpunodebind=1 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize two Transaction Injector JVMs to a NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=1 --localalloc Group4: numactl --cpunodebind=1 --localalloc
Notes	None

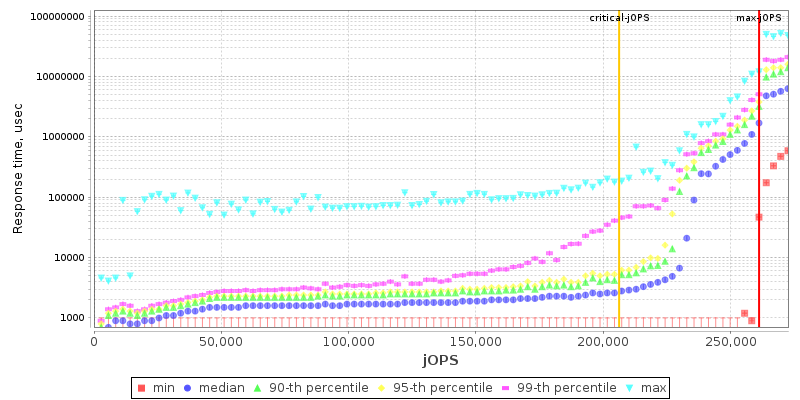

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	258368	261207	264047	266886	269725

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	180289	194485	211521	222878	225717	206238

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	25553 / 8518	2839 / 5678	- / 2839	- / 2839	- / 2839	- / 2839
1000us	193066 / 195905	25553 / 28392	2839 / 5678	2839 / 5678	2839 / 5678	- / 2839
5000us	232815 / 235654	227137 / 229976	204423 / 207262	198745 / 195905	141960 / 144800	14196 / 11357
10000us	235654 / 238494	229976 / 232815	224298 / 227137	221458 / 224298	181709 / 178870	14196 / 11357
25000us	241333 / 244172	232815 / 235654	227137 / 229976	224298 / 227137	193066 / 195905	14196 / 11357
50000us	241333 / 244172	232815 / 235654	227137 / 229976	224298 / 227137	210102 / 212941	14196 / 11357
75000us	247011 / 249850	232815 / 235654	227137 / 229976	227137 / 229976	221458 / 224298	124925 / 11357
100000us	249850 / 252690	235654 / 238494	227137 / 229976	227137 / 229976	224298 / 227137	164674 / 22714
200000us	252690 / 255529	235654 / 238494	229976 / 232815	229976 / 232815	227137 / 229976	207262 / 201584
500000us	258368 / 261207	247011 / 249850	235654 / 238494	235654 / 238494	229976 / 232815	227137 / 212941
1000000us	261207 / -	255529 / 258368	247011 / 249850	247011 / 249850	241333 / 244172	235654 / 232815

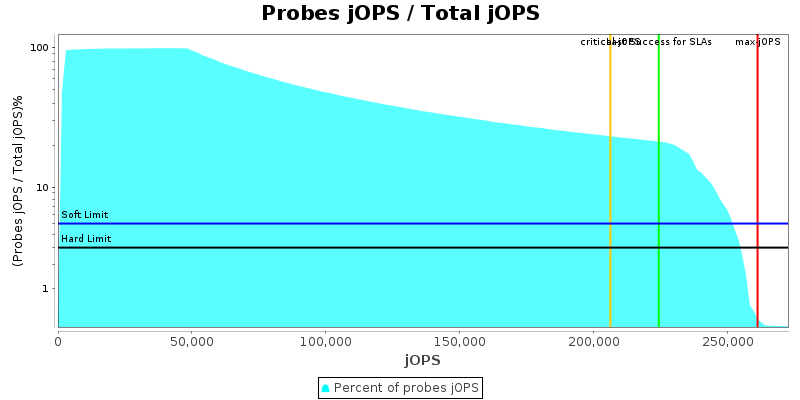

Number of probes

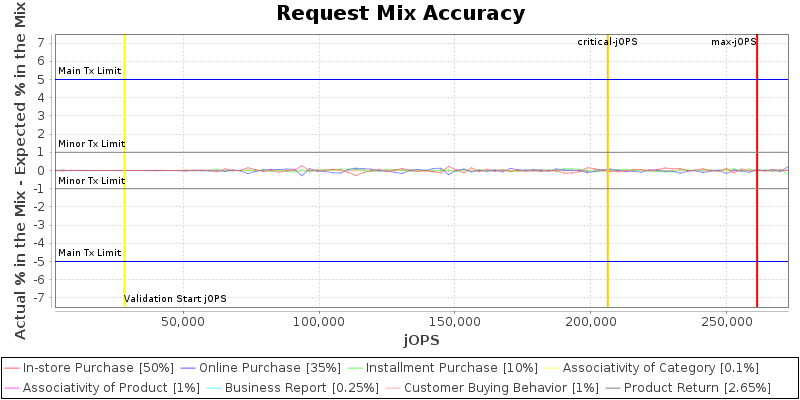

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

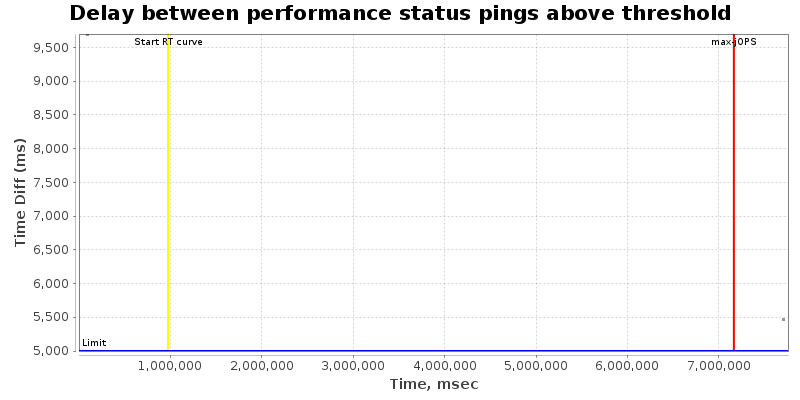

Delay between performance status pings during RT Curve (Response-Throughput Curve)

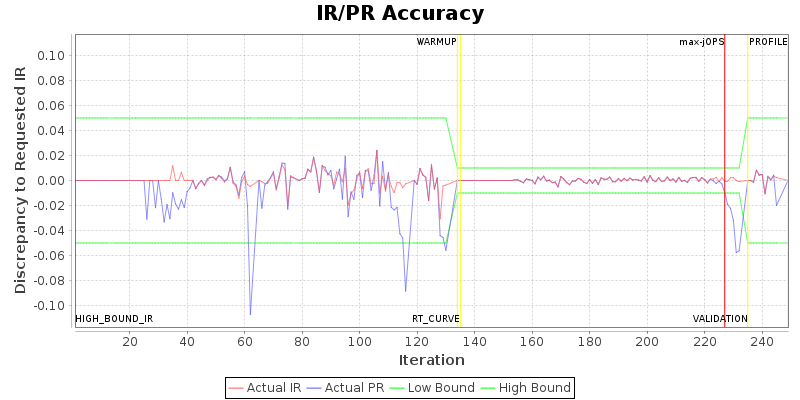

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1
specjbb.comm.connect.selector.runner.count	0	4	0	0	0	0	0	0	0	0
specjbb.controller.handshake.period	5000	200000
specjbb.controller.handshake.timeout	600000	900000
specjbb.customerDriver.threads	64	{probe=120, saturate=120, service=70}
specjbb.forkjoin.workers	128	{Tier1=90, Tier2=1, Tier3=12}
specjbb.group.count	1	4
specjbb.heartbeat.period	10000	20000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	128	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 283921 IR

High-bound (settled) is 274827 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Supermicro WIO A+ Server AS -1115SV-WTNRT	261207 SPECjbb2015-MultiJVM max-jOPS 206238 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: April 29, 2026
SPEC license #: 001176	Hardware Availability: May-2026	Software Availability: Apr-2026	Publication: Tue May 19 18:03:46 EDT 2026
