SPECjbb2015 Report for jbb2015-20260228-01669 : 1287425 max-jOPS ; 1092700 critical-jOPS

SUT Description

Hardware hw_1
Name	H3C UniServer R6900 G7
Vendor	New H3C Technologies Co., Ltd.
Vendor URL	https://www.h3c.com/
Available	Jan-2026
Model	H3C UniServer R6900 G7
Form Factor	4U
CPU Name	Intel(R) Xeon(R) 6788P
CPU Characteristics	86 Core, 2.0 GHz, 336 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	344
Cores Per Chip	86
Threads Per System	688
Threads Per Core	2
Version	7.00.22P11
CPU Frequency (MHz)	2000
Primary Cache	64 KB(I)+48 KB(D) on chip per core
Secondary Cache	2 MB (I+D) on chip per core
Tertiary Cache	336 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.2 TB NVMe SSD
File System	xfs
Memory Amount (GB)	4096
# and size of DIMM(s)	32 x 128 GB
Memory Details	128 GB 2Rx4 PC5-7200B(running at 6400)
# and type of Network Interface Cards (NICs)	4 x 1 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 2000W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 25.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 25.0.1
Available	Oct-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS tuning Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Performance Latency Optimized Mode=Enabled Hardware Prefetch=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 1024000 cpupower frequency-set -g performance echo 56000000 > /sys/kernel/debug/sched/latency_ns echo 750 > /sys/kernel/debug/sched/migration_cost_ns echo 180000 > /sys/kernel/debug/sched/min_granularity_ns echo 12 > /sys/kernel/debug/sched/nr_migrate echo 970000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=2m
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms480g -Xmx480g -Xmn478g -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=2m -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -XX:ParallelGCThreads=86
Tuning	numactl used to affinitize one Backend JVM to each NUMA node, eg: Group1:numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=4 --localalloc Group6:numactl --cpunodebind=5 --localalloc Group7:numactl --cpunodebind=6 --localalloc Group8:numactl --cpunodebind=7 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=2m
Tuning	numactl used to affinitize one TxInjector JVM to each NUMA node, eg: Group1:numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=4 --localalloc Group6:numactl --cpunodebind=5 --localalloc Group7:numactl --cpunodebind=6 --localalloc Group8:numactl --cpunodebind=7 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	1270485	1287425	1304365	1321304	1338244

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	940159	1092617	1126497	1143436	1177316	1092700

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	33880 / 50819	- / 16940	- / 16940	- / 16940	- / 16940	- / 16940
1000us	1270485 / 1253545	33880 / 50819	16940 / 33880	16940 / 33880	- / 16940	- / 16940
5000us	1287425 / -	1270485 / 1287425	1134967 / 1151906	1084147 / 1101087	745351 / 643712	33880 / 50819
10000us	1287425 / -	1287425 / -	1185786 / 1202726	1134967 / 1151906	931689 / 948629	101639 / 67759
25000us	1287425 / -	1287425 / -	1219666 / 1236605	1185786 / 1202726	1101087 / 1084147	169398 / 67759
50000us	1287425 / -	1287425 / -	1253545 / 1270485	1219666 / 1202726	1134967 / 1118027	220217 / 186338
75000us	1287425 / -	1287425 / -	1253545 / 1270485	1219666 / 1236605	1168846 / 1118027	609833 / 321856
100000us	1287425 / -	1287425 / -	1270485 / 1287425	1253545 / 1270485	1168846 / 1185786	779231 / 525134
200000us	1287425 / -	1287425 / -	1270485 / 1287425	1270485 / 1287425	1219666 / 1202726	1033328 / 677592
500000us	1287425 / -	1287425 / -	1270485 / 1287425	1270485 / 1287425	1270485 / 1287425	1185786 / 1202726
1000000us	1287425 / -	1287425 / -	1287425 / -	1287425 / -	1287425 / -	1253545 / 1270485

Number of probes

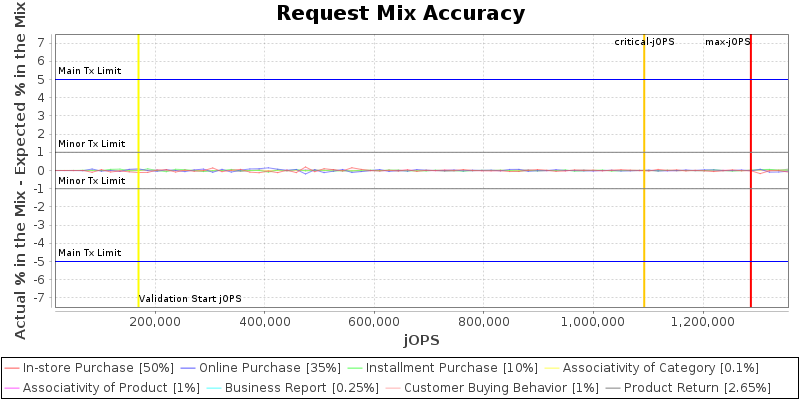

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

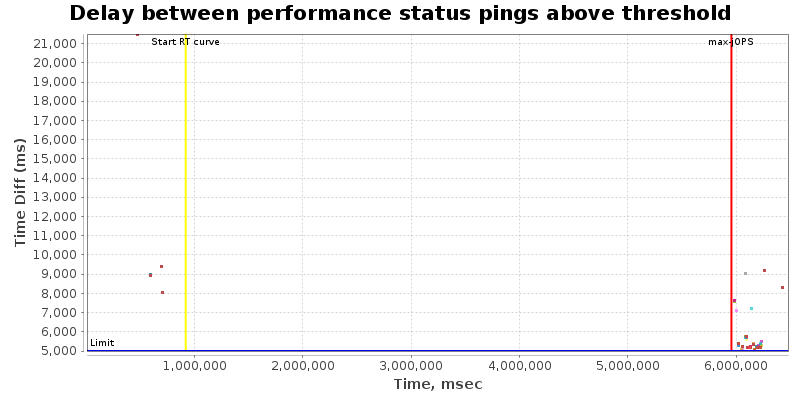

Delay between performance status pings during RT Curve (Response-Throughput Curve)

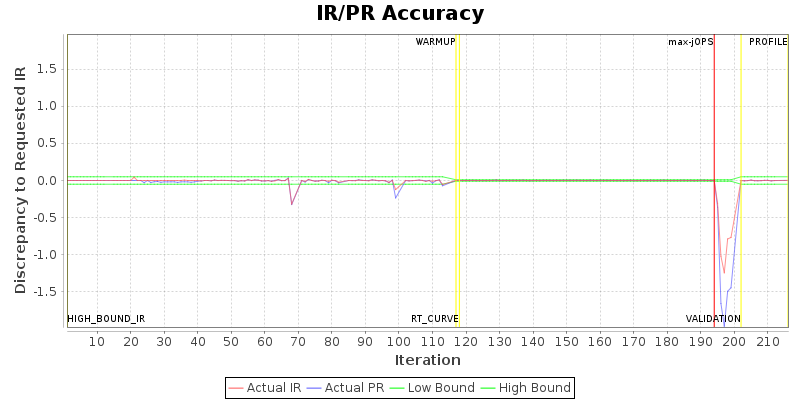

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	300	120	96	120	96	120	96	120	96	120	96	120	96	120	96	120	96
specjbb.comm.connect.selector.runner.count	0	8	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.comm.connect.worker.pool.max	256	256	60	60	60	60	60	60	60	60	60	60	60	60	60	60	60	60
specjbb.comm.connect.worker.pool.min	1	1	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24
specjbb.customerDriver.threads	64	{probe=70, saturate=69, service=94}
specjbb.forkjoin.workers	688	{Tier1=140, Tier2=1, Tier3=9}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	688	64
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1693980 IR

High-bound (settled) is 1412935 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

New H3C Technologies Co., Ltd. H3C UniServer R6900 G7	1287425 SPECjbb2015-MultiJVM max-jOPS 1092700 SPECjbb2015-MultiJVM critical-jOPS
Tested by: New H3C Technologies Co., Ltd.	Test Sponsor: New H3C Technologies Co., Ltd.	Test location: Hangzhou, China	Test date: Feb 28, 2026
SPEC license #: 9066	Hardware Availability: Jan-2026	Software Availability: Oct-2025	Publication: Thu Mar 19 14:21:50 EDT 2026

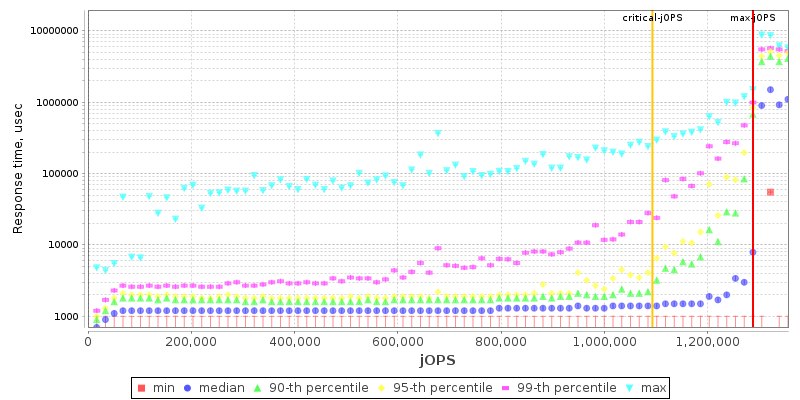

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 8) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
