SPECjbb2015 Report for jbb2015-20250430-01609 : 711087 max-jOPS ; 462411 critical-jOPS

SUT Description

Hardware hw_1
Name	KR2280V3(KR2280-X3-A0-R0-00)
Vendor	Kaytus Systems Pte. Ltd.
Vendor URL	https://www.kaytus.com/
Available	May-2025
Model	KR2280V3(KR2280-X3-A0-R0-00)
Form Factor	2U
CPU Name	Intel Xeon 6787P
CPU Characteristics	86 Core, 2.0 GHz, 336 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	172
Cores Per Chip	86
Threads Per System	344
Threads Per Core	2
Version	02.03.01
CPU Frequency (MHz)	2000
Primary Cache	64 KB(I)+48 KB(D)on chip per core
Secondary Cache	2 MB (I+D) on chip per core
Tertiary Cache	336 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 1.92TB NVMe SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	16 x 64 GB 2Rx4 PC5-88/64B-H, running at 8000MHz
# and type of Network Interface Cards (NICs)	1 x 10 GbE 2 ports OCP3.0 PCIe NIC
Power Supply Quantity and Rating (W)	2 x 1300W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 24.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 24.0.1
Available	Apr-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 131072 echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 9 > /sys/kernel/debug/sched/nr_migrate echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms29g -Xmx29g -Xmn27g -XX:+UseParallelGC -XX:+UseTransparentHugePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -XX:ParallelGCThreads=43
Tuning	numactl used to affinitize two Backend JVMs to one NUMA node Group1:numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=0 --localalloc Group6:numactl --cpunodebind=1 --localalloc Group7:numactl --cpunodebind=2 --localalloc Group8:numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize two TxInjector JVMs to one NUMA node Group1:numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=0 --localalloc Group6:numactl --cpunodebind=1 --localalloc Group7:numactl --cpunodebind=2 --localalloc Group8:numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	702913	711087	719260	727433	735607

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	306503	396410	502664	576225	600745	462411

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	8173 / 16347	- / 8173	- / 8173	- / 8173	- / 8173	- / 8173
1000us	596659 / 604832	24520 / 32694	8173 / 16347	8173 / 16347	- / 8173	- / 8173
5000us	662046 / 670220	596659 / 604832	425017 / 433191	367803 / 375977	253376 / 228855	8173 / 16347
10000us	670220 / 678393	629353 / 637526	539445 / 547618	498578 / 506751	302416 / 310590	8173 / 16347
25000us	678393 / 686566	645699 / 653873	588486 / 596659	547618 / 555792	392324 / 400497	8173 / 16347
50000us	686566 / 694740	662046 / 670220	604832 / 613006	588486 / 596659	498578 / 506751	179815 / 24520
75000us	686566 / 694740	662046 / 670220	613006 / 621179	604832 / 613006	572139 / 580312	359630 / 40867
100000us	686566 / 694740	670220 / 678393	629353 / 637526	613006 / 621179	596659 / 604832	392324 / 40867
200000us	686566 / 694740	678393 / 686566	653873 / 662046	637526 / 645699	621179 / 629353	572139 / 563965
500000us	711087 / -	686566 / 694740	678393 / 686566	670220 / 678393	662046 / 670220	629353 / 637526
1000000us	711087 / -	711087 / -	694740 / 702913	686566 / 694740	686566 / 694740	662046 / 670220

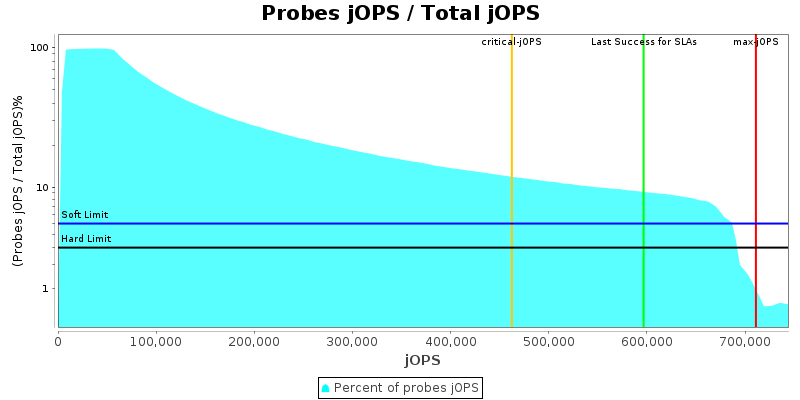

Number of probes

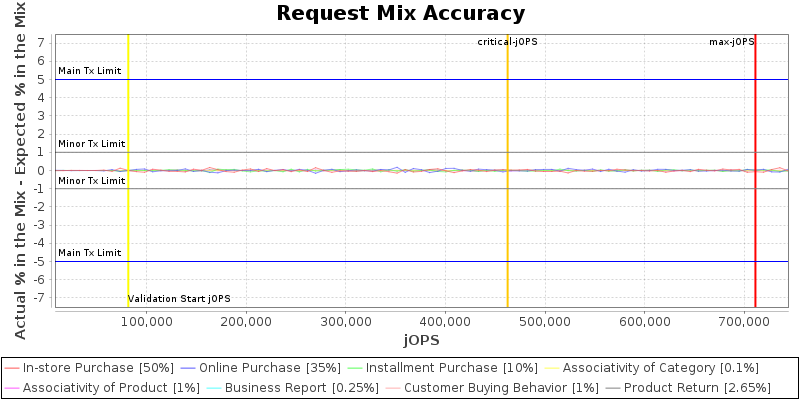

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

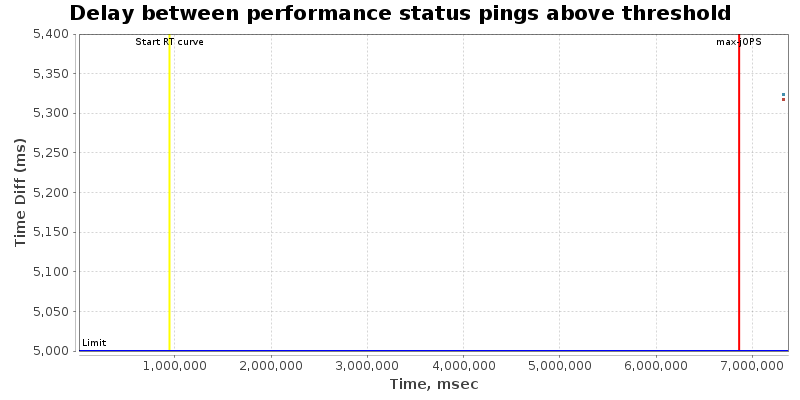

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	344	{Tier1=257, Tier2=3, Tier3=36}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	344	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 817341 IR

High-bound (settled) is 744849 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Kaytus Systems Pte. Ltd. KR2280V3(KR2280-X3-A0-R0-00)	711087 SPECjbb2015-MultiJVM max-jOPS 462411 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Kaytus Systems Pte. Ltd.	Test Sponsor: Kaytus Systems Pte. Ltd.	Test location: Singapore	Test date: Apr 19, 2025
SPEC license #: 6865	Hardware Availability: May-2025	Software Availability: Apr-2025	Publication: Thu May 15 13:58:09 EDT 2025


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 8) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
