SPECjbb2015
Copyright © 2015-2025 Standard Performance Evaluation Corporation
Dell Inc. PowerEdge R470 268239 SPECjbb2015-Composite max-jOPS
208889 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Apr 2,2025
SPEC license #: 6573 Hardware Availability: Dec-2024 Software Availability: Jan-2025 Publication: Thu May 1 12:37:21 EDT 2025
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

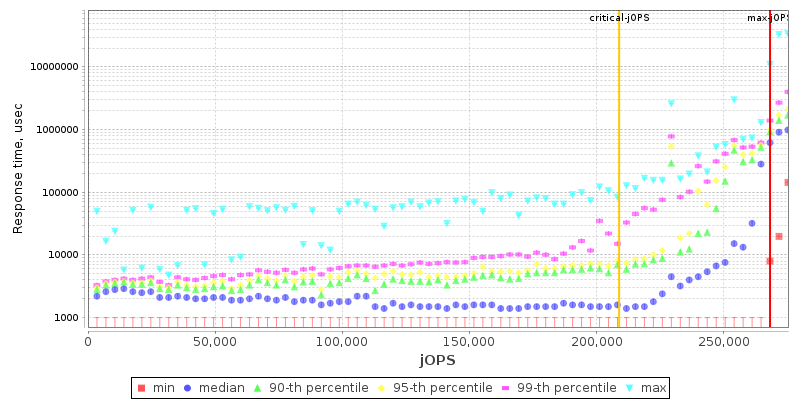

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttps://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores144
Total Threads144
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameDell Inc. PowerEdge R470
VendorDell Inc.
Vendor URLhttps://www.dell.com/
AvailableDec-2024
ModelPowerEdge R470
Form Factor1U Rack
CPU NameIntel Xeon 6780E
CPU Characteristics144 core, 2.20 GHz, 108 MB L3 Cache (Turbo boost Technology up to 3.00GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System144
Cores Per Chip144
Threads Per System144
Threads Per Core1
Version1.1.3
CPU Frequency (MHz)2200
Primary Cache64 KB (I) + 32 KB (D) per core
Secondary Cache4 MB (I+D) per core
Tertiary Cache108 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1TB NVMe SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)8 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-8, populated)
# and type of Network Interface Cards (NICs)1 x 1 Gbit NIC
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP6
VendorSUSE
Vendor URLhttps://www.suse.com/
Version6.4.0-150600.21-default
AvailableJun-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 23.0.2
VendorOracle
Vendor URLhttps://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 23.0.2
AvailableJan-2025
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
    System Under Test: BIOS Default
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 819200 > /proc/sys/vm/max_map_count
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms235g -Xmx235g -Xmn230g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=144 -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 261180 264709 268239 271768 275298
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 171767 205885 217062 224120 231179 208889
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3529 - / 3529 - / 3529 - / 3529 - / 3529 - / 3529
1000us 247062 / 3529 - / 3529 - / 3529 - / 3529 - / 3529 - / 3529
5000us 261180 / 264709 240003 / 243533 172944 / 176473 148237 / 102354 91766 / 67060 31765 / 3529
10000us 264709 / 268239 250592 / 254121 225885 / 229415 218827 / 222356 183532 / 165885 60001 / 3529
25000us 264709 / 268239 257651 / 261180 243533 / 229415 236474 / 229415 208238 / 201179 95295 / 3529
50000us 264709 / 268239 261180 / 264709 243533 / 229415 236474 / 229415 215297 / 218827 169414 / 17647
75000us 264709 / 268239 261180 / 264709 247062 / 229415 243533 / 229415 222356 / 225885 197650 / 148237
100000us 264709 / 268239 261180 / 264709 247062 / 229415 243533 / 229415 232944 / 229415 208238 / 201179
200000us 264709 / 268239 261180 / 264709 250592 / 229415 247062 / 229415 243533 / 229415 236474 / 229415
500000us 268239 / - 264709 / 268239 261180 / 264709 261180 / 229415 250592 / 229415 243533 / 229415
1000000us 268239 / - 268239 / - 268239 / - 268239 / - 264709 / 268239 261180 / 229415

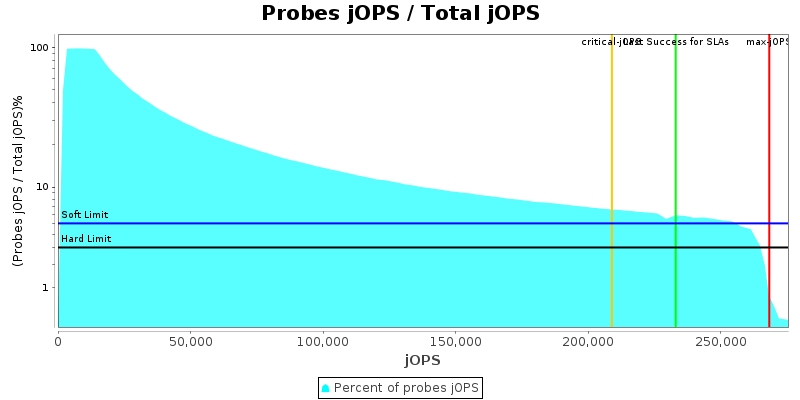

Number of probes
Probes jOPS / Total jOPS

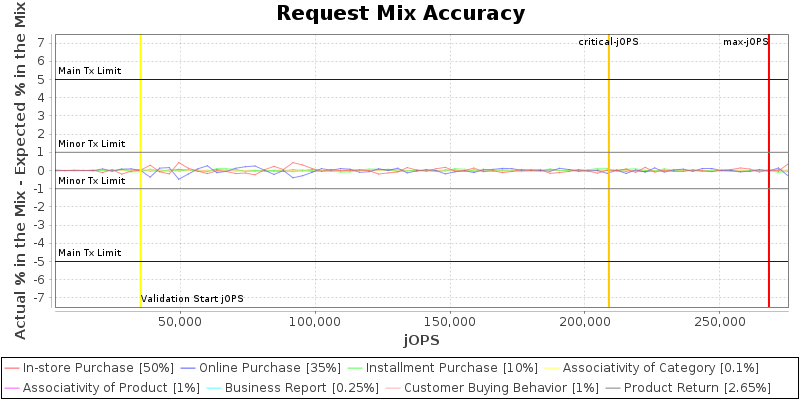

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

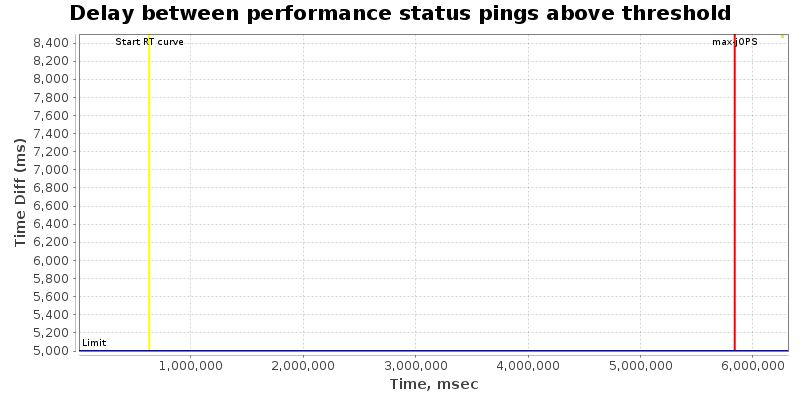

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

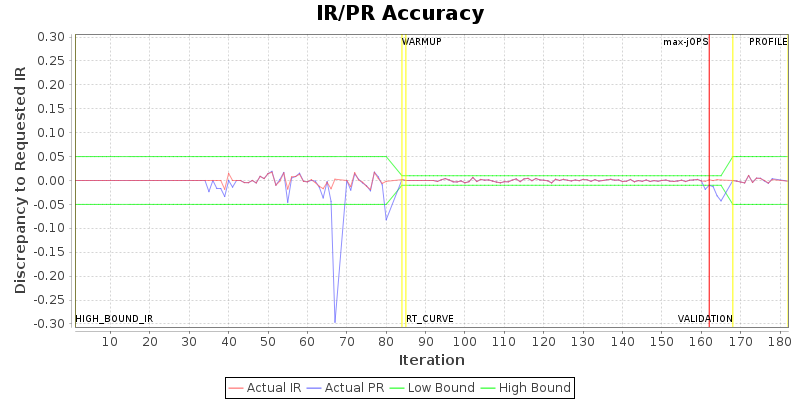

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 256
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 69
specjbb.forkjoin.workers 144 {Tier1=113, Tier2=56, Tier3=19}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 144 16
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 352946 IR
High-bound (settled) is 294155 IR
Copyright © 2015-2025 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]
