SPECjbb2015 Report for jbb2015-20250319-01563 : 1085277 max-jOPS ; 1021190 critical-jOPS

SUT Description

Hardware hw_1
Name	RS720A-E13-RS8U
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Mar-2025
Model	RS720A-E13-RS8U
Form Factor	2U
CPU Name	AMD EPYC 9965
CPU Characteristics	192 Core, 2.25 GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	384
Cores Per Chip	192
Threads Per System	768
Threads Per Core	2
Version	0502
CPU Frequency (MHz)	2250
Primary Cache	32 KB(I) + 48 KB(D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	384 MB (I+D) per chip
Other Cache	None
Disk	1 x 4.0 TB PCIe NVMe SSD
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 3200W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 23.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 23.0.2
Available	Jan-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	RS521A-E12-RS12U
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Oct-2024
Model	RS521A-E12-RS12U
Form Factor	2U
CPU Name	AMD EPYC 9655
CPU Characteristics	96 Core, 2.60 GHz, 384 MB L3 Cache (Max Boost Clock up to 4.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	96
Cores Per Chip	96
Threads Per System	192
Threads Per Core	2
Version	0402
CPU Frequency (MHz)	2600
Primary Cache	32 KB (I) + 48 KB (D) on chip per core
Secondary Cache	1 MB (I+D) on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.2 TB PCIe NVMe SSD
File System	xfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R, running at 5200 MT/s
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 23.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 23.0.2
Available	Jan-2025
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SVM Mode = Disabled SR-IOV Support = Disabled Engine Boost = Aggressive NUMA nodes per socket = NPS2 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 500 PPT Control = Manual PPT = 500 Determinism Control = Manual Determinism Slider = Power 4 Link xGMI max speed = 32Gbps 3 Link xGMI max speed = 32Gbps APBDIS = 1 Global C-state Control = Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(12)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 300000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms119g -Xmx119g -Xmn117g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=48 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning	Used numactl to affinitize three Backend JVMs to one NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SVM Mode = Disabled SR-IOV Support = Disabled Engine Boost = Aggressive NUMA nodes per socket = NPS4 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400 Determinism Control = Manual Determinism Slider = Power ACPI SRAT L3 Cache as NUMA Domain = Enabled APBDIS = 1 Global C-state Control = Disable
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(12)
OS Image Description	os_2
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 300000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 32 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize each TxInjector JVM to one NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc numactl --cpunodebind=8 --localalloc numactl --cpunodebind=9 --localalloc numactl --cpunodebind=10 --localalloc numactl --cpunodebind=11 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	1060038	1072657	1085277	1097896	1110516

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	914913	978011	1053728	1085277	1085277	1021190

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	214531 / 227151	25239 / 37858	- / 12619	- / 12619	- / 12619	- / 12619
1000us	946462 / 845506	315487 / 290248	75717 / 88336	63097 / 75717	37858 / 50478	- / 12619
5000us	1085277 / -	1085277 / -	946462 / 959082	832887 / 845506	656214 / 555258	- / 12619
10000us	1085277 / -	1085277 / -	1085277 / -	1072657 / 1085277	908604 / 921223	- / 12619
25000us	1085277 / -	1085277 / -	1085277 / -	1085277 / -	971701 / 984321	- / 12619
50000us	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1047418 / 1060038	492160 / 12619
75000us	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1085277 / -	694072 / 12619
100000us	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1085277 / -	870745 / 12619
200000us	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1047418 / 12619
500000us	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1085277 / -
1000000us	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1085277 / -	1085277 / -

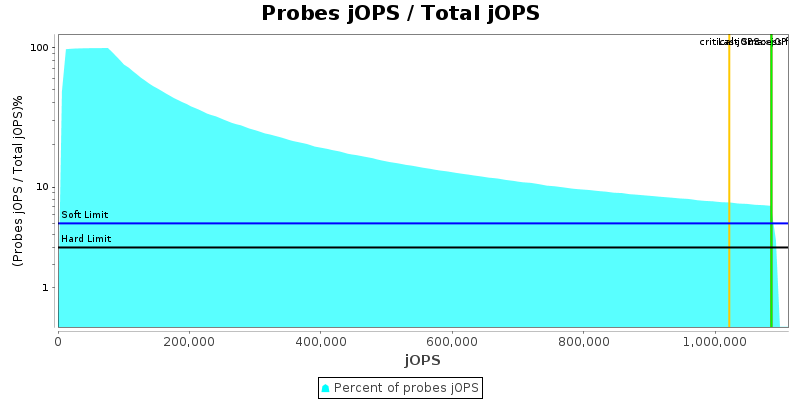

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

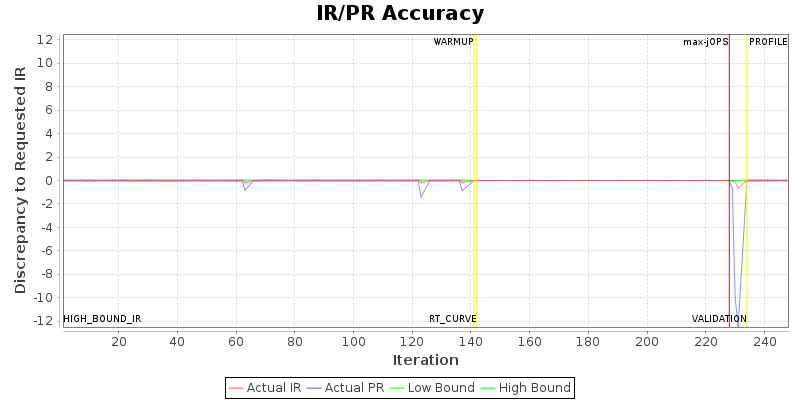

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	256	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.worker.pool.min	1	1	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24	24
specjbb.controller.host	localhost	192.168.0.23
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	192	{Tier1=140, Tier2=1, Tier3=8}
specjbb.group.count	1	12
specjbb.heartbeat.period	10000	400000
specjbb.heartbeat.threshold	100000	4000000
specjbb.mapreducer.pool.size	192	6
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1261950 IR

High-bound (settled) is 1193585 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

ASUSTeK Computer Inc. RS720A-E13-RS8U	1085277 SPECjbb2015-Distributed max-jOPS 1021190 SPECjbb2015-Distributed critical-jOPS
Tested by: ASUSTeK Computer Inc.	Test Sponsor: ASUSTeK Computer Inc.	Test location: Taipei, Taiwan	Test date: Mar 18, 2025
SPEC license #: 9016	Hardware Availability: Mar-2025	Software Availability: Jan-2025	Publication: Thu Apr 3 14:21:10 EDT 2025
