SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
IEIT Systems Co., Ltd. NF5180G7 279312 SPECjbb2015-MultiJVM max-jOPS
210840 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd. Test Sponsor: IEIT Systems Co., Ltd. Test location: Jinan, China Test date: Jun 3, 2024
SPEC license #: 3358 Hardware Availability: Dec-2023 Software Availability: Apr-2024 Publication: Fri Jun 28 09:26:09 EDT 2024
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIEIT Systems Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameNF5180G7
VendorIEIT Systems Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
AvailableDec-2023
ModelNF5180G7
Form Factor1U
CPU NameIntel Xeon Gold 6538Y+
CPU Characteristics32 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
Version06.02.02
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache2 MB (I+D) on chip per core
Tertiary Cache60 MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details16 x 32 GB 2Rx8 PC5-5600B-R
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 21.0.3
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 21.0.3
AvailableApr-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Memory Patrol Scrub=Disabled
  • Power Performance Tuning=BIOS Controls EPB
  • ENERGY_PERF_BIAS_CFG mode=Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 131072
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=2m -Xms100g -Xmx100g -Xmn97g -XX:UseAVX=0 -XX:ParallelGCThreads=32
Tuning numactl used to affinitize each Backend JVM to one NUMA node, eg:
  • Group1:numactl --cpunodebind=0 --localalloc
  • Group2:numactl --cpunodebind=1 --localalloc
  • Group3:numactl --cpunodebind=2 --localalloc
  • Group4:numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m
Tuning numactl used to affinitize each TxInjector JVM to one NUMA node, eg:
  • Group1:numactl --cpunodebind=0 --localalloc
  • Group2:numactl --cpunodebind=1 --localalloc
  • Group3:numactl --cpunodebind=2 --localalloc
  • Group4:numactl --cpunodebind=3 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 275906 279312 282719 286125 289531
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 151578 199265 223109 246953 250359 210840
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 6812 / 10219 3406 / 6812 - / 3406 - / 3406 - / 3406 - / 3406
1000us 190750 / 177125 13625 / 17031 6812 / 10219 6812 / 10219 6812 / 10219 - / 3406
5000us 265687 / 269094 258875 / 262281 221406 / 224812 197562 / 177125 115812 / 112406 20437 / 10219
10000us 269094 / 272500 262281 / 265687 245250 / 248656 224812 / 228219 149875 / 153281 20437 / 10219
25000us 269094 / 272500 262281 / 265687 255469 / 258875 255469 / 252062 197562 / 200969 20437 / 10219
50000us 269094 / 272500 262281 / 265687 255469 / 258875 255469 / 258875 221406 / 224812 20437 / 10219
75000us 269094 / 272500 262281 / 265687 255469 / 258875 255469 / 258875 245250 / 248656 91969 / 34062
100000us 269094 / 272500 262281 / 265687 258875 / 262281 255469 / 258875 248656 / 252062 109000 / 47687
200000us 272500 / 275906 265687 / 269094 258875 / 262281 258875 / 262281 255469 / 252062 245250 / 221406
500000us 275906 / 279312 269094 / 272500 262281 / 265687 258875 / 262281 258875 / 262281 255469 / 252062
1000000us 279312 / - 275906 / 279312 272500 / 275906 272500 / 269094 265687 / 269094 258875 / 262281
Number of probes
Probes jOPS / Total jOPS

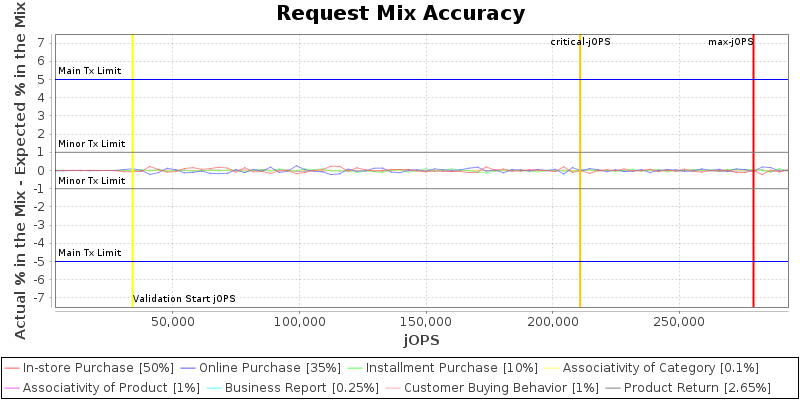

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

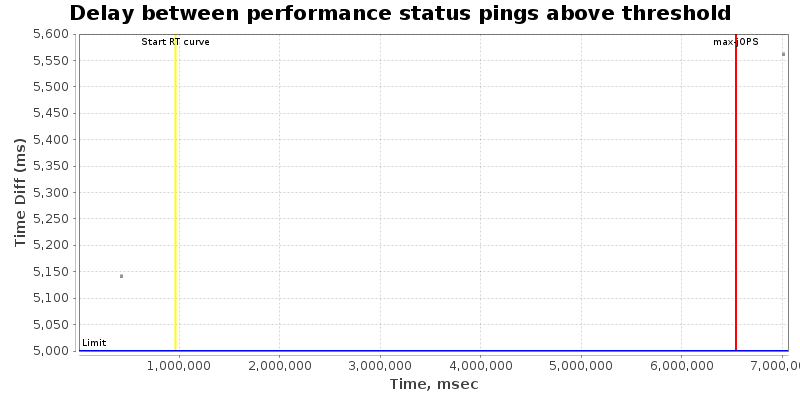

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 232
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 81
specjbb.comm.connect.worker.pool.min 1 24
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 128 {Tier1=180, Tier2=6, Tier3=20}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 128 223
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 340625 IR
High-bound (settled) is 296700 IR
