SPECjbb2015 Report for jbb2015-20240611-01288 : 391485 max-jOPS ; 155366 critical-jOPS

SUT Description

Hardware hw_1
Name	R620 G50
Vendor	Nettrix
Vendor URL	https://www.nettrix.com.cn
Available	Dec-2023
Model	R620 G50
Form Factor	2U
CPU Name	Intel(R) Xeon(R) Platinum 8580 CPU @ 2.0GHz
CPU Characteristics	60Core, 2.0GHz, 300MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	NNH1041261
CPU Frequency (MHz)	2000
Primary Cache	32 KB I + 48 KB D on chip per core
Secondary Cache	2 MB I+D on chip per core
Tertiary Cache	300 MB I+D on chip per chip
Other Cache	None
Disk	1 x 16 TB SATA HDD (7200 rpm)
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	16 x 64GB-Samsung-DDR5-5600-2Rx4
# and type of Network Interface Cards (NICs)	2 x 25 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1300W
Other Hardware	1 x OCP with 2 x 25 Gbit NICs
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP5
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150500.53-default
Available	Jun-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.11
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 17.0.11
Available	Apr-2024
Bitness	64
Notes	Note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	SNC = Enable SNC2 (2-clusters) Patrol Scrub = Disabled Enable Monitor MWAIT = Disabled Enhanced Halt State (C1E) = Disabled Hardware Prefetcher = Disabled Adjacent Cache Prefetch = Disabled XPT Prefetch = Disabled KTI Prefetch = Disabled LLC Prefetch = Disabled Intel VT for Directed I/O (VT-d) = Disabled SR-IOV Support = Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 128 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 819200 > /proc/sys/vm/max_map_count echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-server -Xms115g -Xmx115g -Xmn95g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=120 -XX:+UseHugeTLBFS -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning	numactl used to interleave the controller amongst all available nodes, eg: numactl --cpunodebind=0-3 --interleave=0-3
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	382785	387135	391485	395835	400184

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	76122	123970	184868	216186	240031	155366

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	295788 / 265340	8700 / 13049	4350 / 8700	4350 / 8700	- / 4350	- / 4350
1000us	378435 / 382785	295788 / 278389	117445 / 121795	73947 / 47848	17399 / 21749	- / 4350
5000us	387135 / 391485	347986 / 352336	208792 / 204442	160944 / 156594	56548 / 60898	4350 / 8700
10000us	391485 / -	356686 / 361036	247940 / 234891	191393 / 195742	73947 / 78297	26099 / 8700
25000us	391485 / -	361036 / 365386	260990 / 265340	208792 / 204442	126145 / 121795	95696 / 8700
50000us	391485 / -	369736 / 365386	278389 / 282739	243590 / 234891	182693 / 187043	95696 / 8700
75000us	391485 / -	374085 / 378435	295788 / 287089	260990 / 256640	243590 / 204442	95696 / 21749
100000us	391485 / -	374085 / 378435	304488 / 308838	282739 / 287089	247940 / 204442	134845 / 108746
200000us	391485 / -	387135 / 391485	343637 / 347986	321887 / 308838	295788 / 265340	260990 / 130495
500000us	391485 / -	391485 / -	387135 / 365386	378435 / 365386	369736 / 265340	343637 / 234891
1000000us	391485 / -	391485 / -	391485 / -	391485 / -	391485 / 365386	374085 / 287089

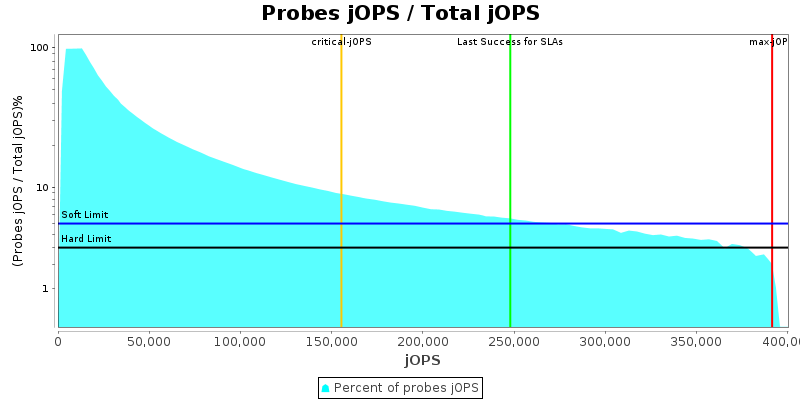

Number of probes

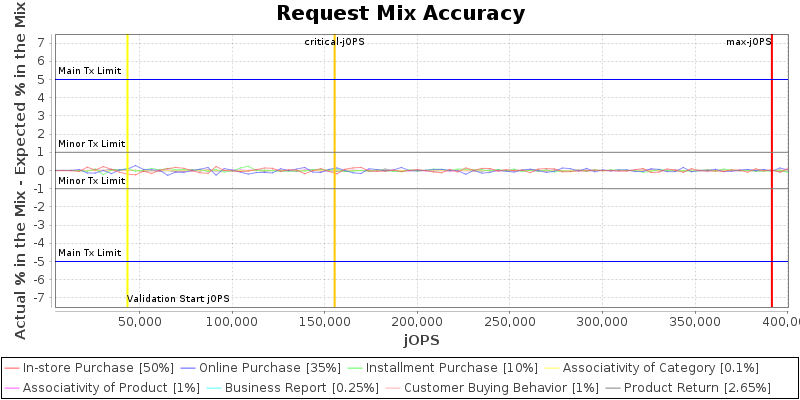

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

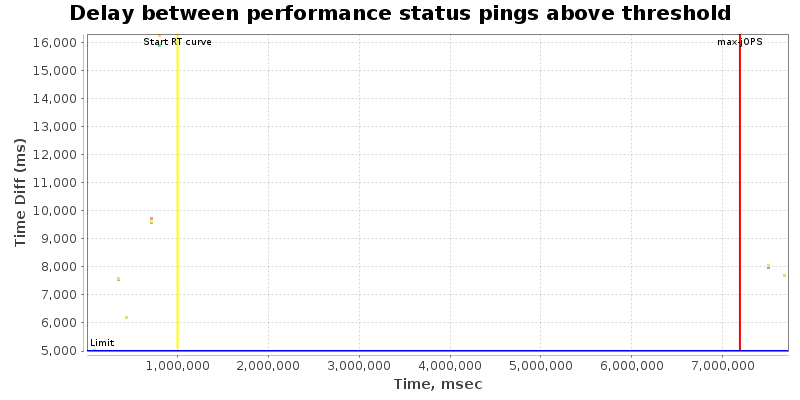

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.warmup.step	0.1	0.2
specjbb.customerDriver.threads	64	69
specjbb.forkjoin.workers	240	{Tier1=113, Tier2=56, Tier3=20}
specjbb.group.count	1	2
specjbb.mapreducer.pool.size	240	16

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 434983 IR

High-bound (settled) is 421310 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Nettrix R620 G50	391485 SPECjbb2015-Composite max-jOPS 155366 SPECjbb2015-Composite critical-jOPS
Tested by: Nettrix	Test Sponsor: Nettrix	Test location: Beijing, China	Test date: May 27, 2024
SPEC license #: 6138	Hardware Availability: Dec-2023	Software Availability: Apr-2024	Publication: Fri Jun 28 09:26:09 EDT 2024
