SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Supermicro A+ Server AS -1015A-MT 63882 SPECjbb2015-Composite max-jOPS
50276 SPECjbb2015-Composite critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: Apr 17, 2024
SPEC license #: 001176 Hardware Availability: Jun-2023 Software Availability: Feb-2024 Publication: Tue May 21 12:56:31 EDT 2024
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores16
Total Threads32
Total Memory Amount (GB)64
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameA+ Server AS -1015A-MT
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableJun-2023
ModelH13SAE-MF
Form Factor1U
CPU NameAMD EPYC 4584PX
CPU Characteristics16 Core, 4.2 GHz, 128 MB L3 Cache (Max. Boost Clock up to 5.7GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System16
Cores Per Chip16
Threads Per System32
Threads Per Core32
Versionv1.2a (02/15/2024)
CPU Frequency (MHz)4200
Primary Cache512 KB(I) + 512 KB(D) per core
Secondary Cache16 MB (I+D) per core
Tertiary Cache128 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 900GB NVMe PCIe Gen3.0
File Systemxfs
Memory Amount (GB)64
# and size of DIMM(s)2 x 32 GB
Memory Details32 GB 2Rx4 PC5-5200
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)1 x 500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameUbuntu 24.04.3
VendorUbuntu
Vendor URLhttps://www.ubuntu.com
Versionv5.15.0-78-generic
AvailableAug-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JDK v21.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 21.0.2
AvailableJan-2024
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 50000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 100000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms44g -Xmx44g -Xmn40g -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=1 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=32 -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:+UseTransparentHugePages
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 63172 63882 64592 65302 66011
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 28835 42730 63882 63882 63882 50276
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9227 / 9937 1420 / 2129 - / 710 - / 710 - / 710 - / 710
1000us 63882 / - 6388 / 7098 3549 / 4259 2839 / 3549 1420 / 2129 - / 710
5000us 63882 / - 63882 / - 60333 / 38329 52525 / 33361 20584 / 21294 4259 / 2129
10000us 63882 / - 63882 / - 63882 / - 60333 / 59623 31941 / 26972 4969 / 2129
25000us 63882 / - 63882 / - 63882 / - 63882 / - 44008 / 37619 4969 / 2129
50000us 63882 / - 63882 / - 63882 / - 63882 / - 63882 / - 4969 / 2129
75000us 63882 / - 63882 / - 63882 / - 63882 / - 63882 / - 7808 / 5678
100000us 63882 / - 63882 / - 63882 / - 63882 / - 63882 / - 24843 / 18455
200000us 63882 / - 63882 / - 63882 / - 63882 / - 63882 / - 63882 / 21294
500000us 63882 / - 63882 / - 63882 / - 63882 / - 63882 / - 63882 / -
1000000us 63882 / - 63882 / - 63882 / - 63882 / - 63882 / - 63882 / -

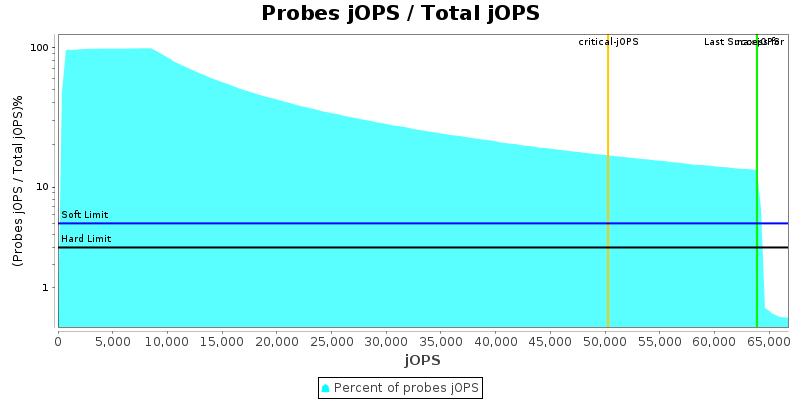

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

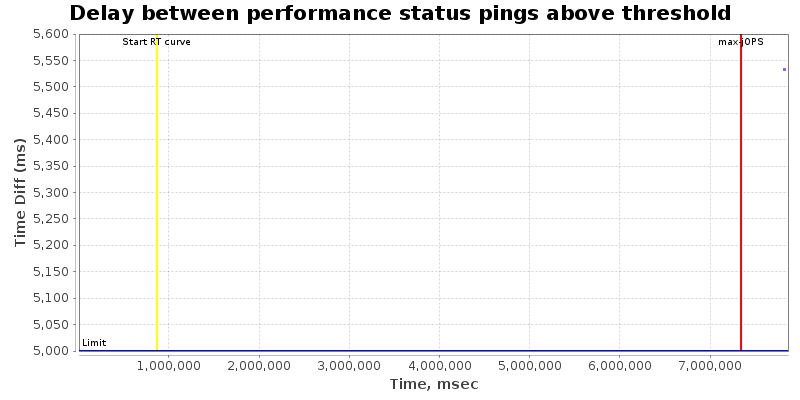

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

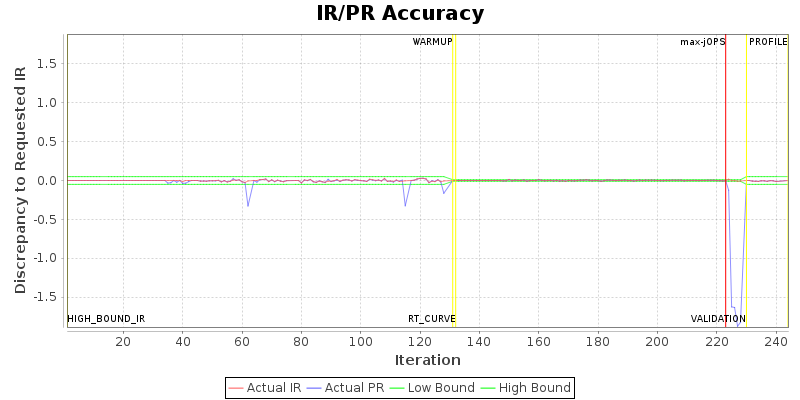

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 1024
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 900000
specjbb.comm.connect.timeouts.write 60000 900000
specjbb.comm.connect.worker.pool.max 256 1024
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 900000
specjbb.customerDriver.threads 64 {probe=85, saturate=512, service=64}
specjbb.forkjoin.workers 32 {Tier1=128, Tier2=8, Tier3=10}
specjbb.group.count 1 1
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 900000
specjbb.mapreducer.pool.size 32 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 70980 IR
High-bound (settled) is 68707 IR
