SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
IEIT Systems Co., Ltd. NF5180G7 119247 SPECjbb2015-MultiJVM max-jOPS
80807 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd. Test Sponsor: IEIT Systems Co., Ltd. Test location: Jinan, China Test date: Mar 25, 2024
SPEC license #: 3358 Hardware Availability: Dec-2023 Software Availability: Jan-2024 Publication: Thu Apr 25 10:21:01 EDT 2024
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)

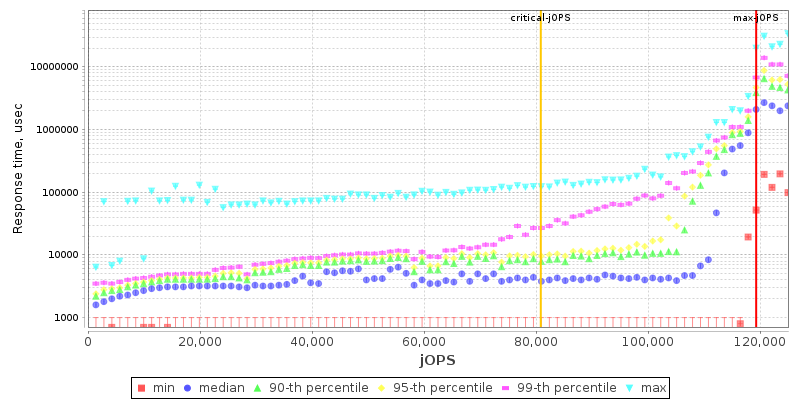

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIEIT Systems Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameNF5180G7
VendorIEIT Systems Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
AvailableDec-2023
ModelNF5180G7
Form Factor1U
CPU NameIntel Xeon Gold 5512U
CPU Characteristics28 Core, 2.10 GHz, 52.5 MB L3 Cache (Turbo Boost Technology up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
Version05.13.00
CPU Frequency (MHz)2100
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache2 MB (I+D) on chip per core
Tertiary Cache52.5 MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)256
# and size of DIMM(s)8 x 32GB
Memory Details8 x 32 GB 2Rx8 PC5-5600B-R
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 21.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 21.0.2
AvailableJan-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Memory Patrol Scrub=Disabled
  • Power Performance Tuning=BIOS Controls EPB
  • ENERGY_PERF_BIAS_CFG mode=Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • ulimit -n 131072
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=2m -Xms100g -Xmx100g -Xmn97g -XX:UseAVX=0 -XX:ParallelGCThreads=28
Tuning numactl used to affinitize each Backend JVM to one NUMA node, eg:
  • Group1:numactl --cpunodebind=0 --localalloc
  • Group2:numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m
Tuning numactl used to affinitize each TxInjector JVM to one NUMA node, eg:
  • Group1:numactl --cpunodebind=0 --localalloc
  • Group2:numactl --cpunodebind=1 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 117828 119247 120667 122086 123506
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 49359 77369 90145 97243 102922 80807
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1420 - / 1420 - / 1420 - / 1420 - / 1420 - / 1420
1000us - / 1420 - / 1420 - / 1420 - / 1420 - / 1420 - / 1420
5000us 113569 / 114988 107890 / 42588 28392 / 29812 28392 / 24133 28392 / 22714 - / 1420
10000us 113569 / 114988 110730 / 112149 99373 / 92275 85177 / 66722 62463 / 45428 9937 / 2839
25000us 113569 / 114988 110730 / 112149 106471 / 107890 102212 / 103632 78079 / 76659 9937 / 2839
50000us 113569 / 114988 112149 / 113569 106471 / 107890 105051 / 106471 89435 / 90855 9937 / 2839
75000us 113569 / 114988 112149 / 113569 107890 / 109310 105051 / 106471 96533 / 97953 41169 / 11357
100000us 113569 / 114988 112149 / 113569 107890 / 109310 106471 / 107890 102212 / 103632 66722 / 11357
200000us 114988 / 116408 112149 / 113569 109310 / 110730 109310 / 110730 105051 / 106471 102212 / 99373
500000us 117828 / 119247 114988 / 116408 113569 / 114988 112149 / 113569 110730 / 112149 107890 / 109310
1000000us 117828 / 119247 117828 / 119247 116408 / 117828 116408 / 117828 113569 / 114988 110730 / 112149

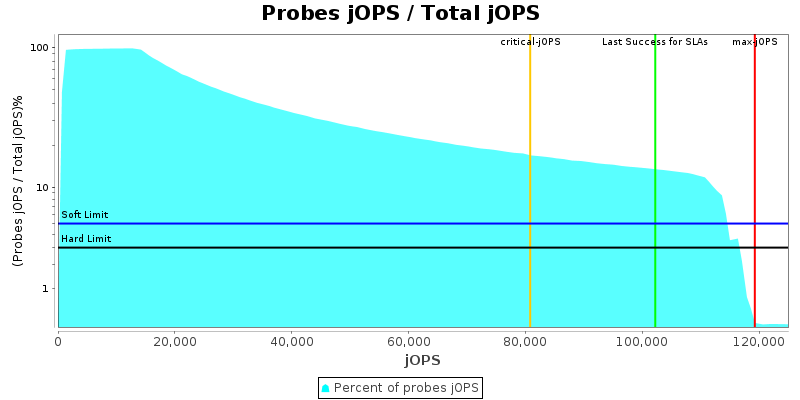

Number of probes
Probes jOPS / Total jOPS

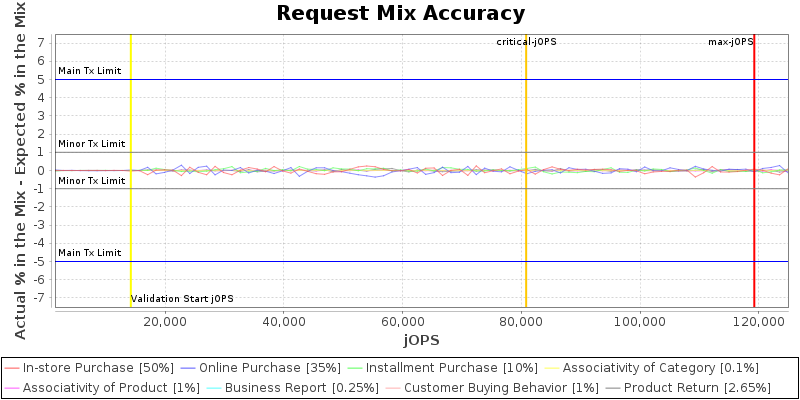

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

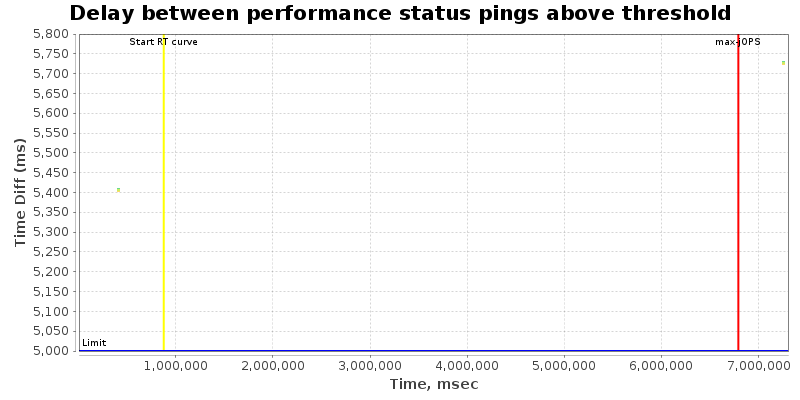

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

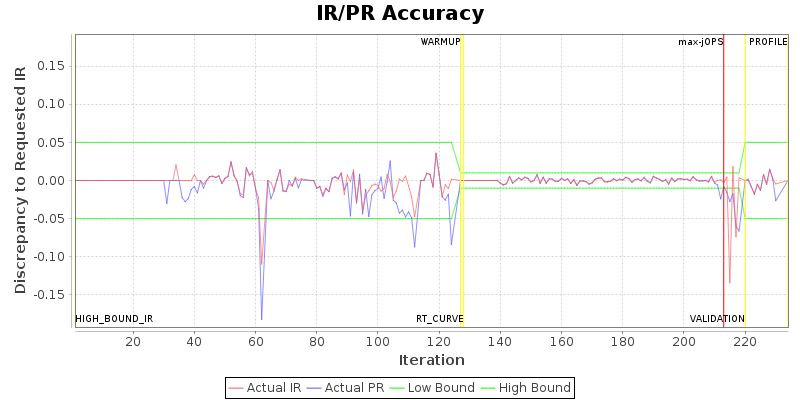

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 232
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 81
specjbb.comm.connect.worker.pool.min 1 24
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 56 {Tier1=70, Tier2=1, Tier3=18}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 56 223
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 141961 IR
High-bound (settled) is 129375 IR
Copyright © 2015-2024 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
