SPECjbb2015 Report for jbb2015-20240401-01239 : 1379857 max-jOPS ; 1264990 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SD535 V3
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	May-2024
Model	ThinkSystem SD535 V3
Form Factor	2U
CPU Name	AMD EPYC 9684X
CPU Characteristics	96 core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	4
Chips Per System	4
Cores Per System	384
Cores Per Chip	96
Threads Per System	768
Threads Per Core	2
Version	QPE103H
CPU Frequency (MHz)	2550
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	1MB (I+D) on chip per core
Tertiary Cache	1152MB (I+D) on chip per chip
Other Cache	None
Disk	4 x 1.92TB M.2 NVME SSD
File System	NTFS
Memory Amount (GB)	3072
# and size of DIMM(s)	48 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	4 x 10/25 GbE OCP NIC
Power Supply Quantity and Rating (W)	2 x 2700W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2022 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 21H2(OS Build 20348.2342)
Available	Mar-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 22
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 22
Available	Mar-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR665 V3
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Dec-2023
Model	ThinkSystem SR665 V3
Form Factor	2U
CPU Name	AMD EPYC 9684X
CPU Characteristics	96 core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	KAE117M
CPU Frequency (MHz)	2550
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	1MB (I+D) on chip per core
Tertiary Cache	1152MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	3072
# and size of DIMM(s)	24 x 128 GB
Memory Details	128 GB 2S2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2022 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 21H2(OS Build 20348.2342)
Available	Mar-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 22
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 22
Available	Mar-2024
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Choose Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS2 L2 Stream HW Prefetcher set to Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(24)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -Xnoclassgc -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32
Tuning	Affinitized three Backend JVMs to one memory node in every node in SUT. start /b /NODE 0 start /b /NODE 0 start /b /NODE 0 start /b /NODE 1 start /b /NODE 1 start /b /NODE 1
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Choose Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS4 L2 Stream HW Prefetcher set to Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(24)
OS Image Description	os_2
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms10g -Xmx10g -Xmn8g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms4g -Xmx4g -Xmn3g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None

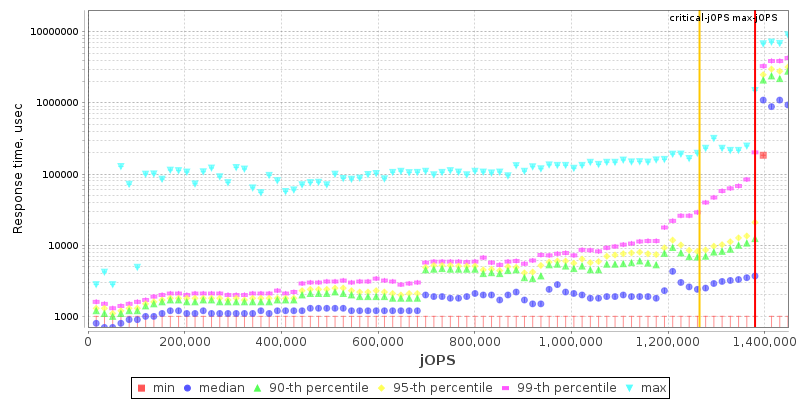

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	1362822	1379857	1396892	1413927	1430963

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	1098775	1218021	1303198	1354304	1371339	1264990

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	51106 / 68141	- / 17035	- / 17035	- / 17035	- / 17035	- / 17035
1000us	1260610 / 1209504	136282 / 153317	51106 / 17035	- / 17035	- / 17035	- / 17035
5000us	1379857 / -	1379857 / -	1056187 / 953975	919905 / 715481	681411 / 698446	102212 / 68141
10000us	1379857 / -	1379857 / -	1345786 / 1362822	1294680 / 1209504	1090257 / 1107293	102212 / 68141
25000us	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1209504 / 1226539	102212 / 68141
50000us	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1294680 / 1311716	102212 / 68141
75000us	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1345786 / 1362822	494023 / 68141
100000us	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1362822 / 1379857	868799 / 68141
200000us	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1362822 / 1379857	1260610 / 1277645
500000us	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1362822 / 1379857
1000000us	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1379857 / -	1362822 / 1379857

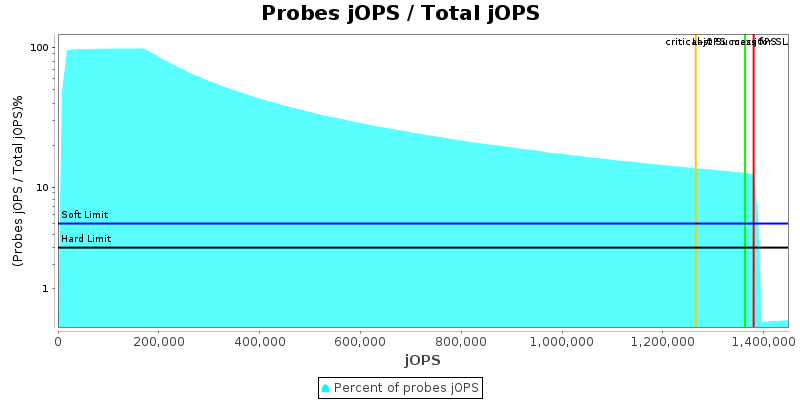

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

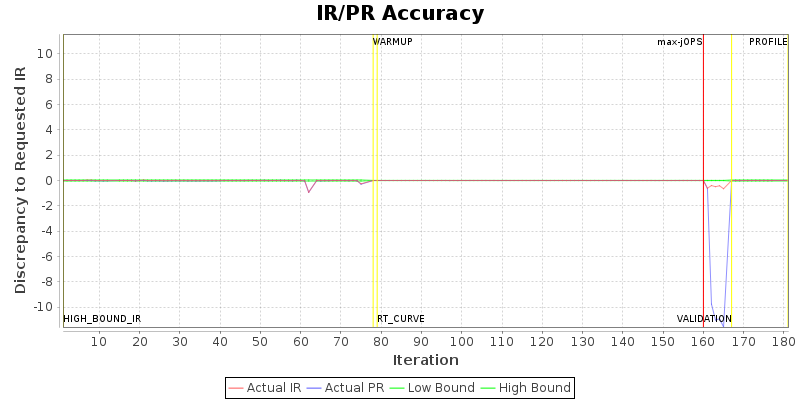

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64
specjbb.comm.connect.selector.runner.count	0	0	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	60	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45	45
specjbb.comm.connect.worker.pool.min	1	10	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30	30
specjbb.controller.host	localhost	192.168.5.6
specjbb.customerDriver.threads	64	{probe=72, saturate=140}
specjbb.forkjoin.workers	48	{Tier1=72, Tier2=1, Tier3=5}
specjbb.group.count	1	24
specjbb.mapreducer.pool.size	48	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1703527 IR

High-bound (settled) is 1420006 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SD535 V3	1379857 SPECjbb2015-Distributed max-jOPS 1264990 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Mar 30, 2024
SPEC license #: 9017	Hardware Availability: May-2024	Software Availability: Mar-2024	Publication: Thu Apr 25 10:18:08 EDT 2024
