xFusion FusionServer 1288H V7 505379 SPECjbb2015-MultiJVM max-jOPS
254434 SPECjbb2015-MultiJVM critical-jOPS
Tested by: xFusion Test Sponsor: xFusion Test location: Shenzhen, China Test date: Feb 20, 2024
SPEC license #: 6488 Hardware Availability: Jan-2023 Software Availability: Jan-2024 Publication: Thu Mar 7 11:29:29 EST 2024
Benchmark Results Summary

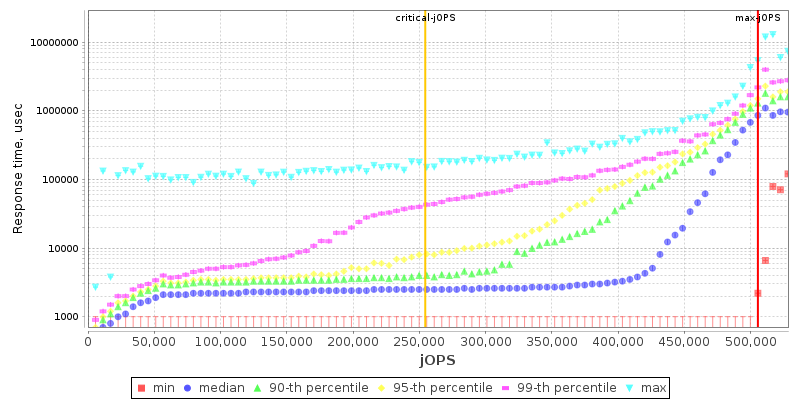

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorxFusion
Vendor URLhttp://xfusion.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores120
Total Threads240
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer 1288H V7
VendorxFusion
Vendor URLhttp://xfusion.com/
AvailableJan-2023
ModelFusionServer 1288H V7
Form Factor1U
CPU NameIntel Xeon Platinum 8490H
CPU Characteristics60 Core, 1.9 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System120
Cores Per Chip60
Threads Per System240
Threads Per Core2
Version2.00.55 released Mar-2023
CPU Frequency (MHz)1900
Primary Cache32KB(I)+ 48KB(D) per core
Secondary Cache2MB (I+D) per core
Tertiary Cache112.5MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960 GB SATA SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details16 x 32 GB 2Rx8 PC5-4800B-R;
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 2000W
Other Hardware1x Intel E810-XXVDA2OCP3G Dual Port 25GbE Network Adapter
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 9.0 (Plow)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version5.14.0-70.22.1.el9_0.x86_64
AvailableAug-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.10
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 17.0.10
AvailableJan-2024
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Performance Profile Set to Performance
  • SNC Set to Enabled SNC4 (4-clusters)
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • ulimit -n 131072
  • cpupower frequency-set -g performance
  • echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us
  • echo 0 > /proc/sys/kernel/sched_child_runs_first
  • echo 16000000 > /sys/kernel/debug/sched/latency_ns
  • echo 1000 > /sys/kernel/debug/sched/migration_cost_ns
  • echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns
  • echo 9 > /sys/kernel/debug/sched/nr_migrate
  • echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms
  • echo 1000000 > /proc/sys/kernel/sched_rt_period_us
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/sched_schedstats
  • echo 1 > /sys/kernel/debug/sched/tunable_scaling
  • echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns
  • echo 3000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages
  • echo 300 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=30 -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=99 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 499701 505379 511058 516736 522415
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 167513 207262 269725 320831 354901 254434
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 11357 / 17035 5678 / 11357 - / 5678 - / 5678 - / 5678 - / 5678
1000us 210102 / 215780 22714 / 28392 11357 / 17035 11357 / 17035 5678 / 11357 - / 5678
5000us 465630 / 471309 420203 / 425881 306635 / 312313 210102 / 198745 96533 / 102212 17035 / 11357
10000us 471309 / 476987 431560 / 437238 335027 / 340705 289599 / 295278 164674 / 170353 17035 / 11357
25000us 476987 / 482666 448595 / 454274 386133 / 391811 352062 / 357740 204423 / 210102 17035 / 11357
50000us 482666 / 488344 459952 / 465630 408846 / 414525 374776 / 380454 266886 / 272564 17035 / 11357
75000us 482666 / 488344 465630 / 471309 414525 / 420203 391811 / 397489 317992 / 323670 17035 / 11357
100000us 482666 / 488344 465630 / 471309 425881 / 431560 408846 / 414525 352062 / 357740 124925 / 11357
200000us 488344 / 494023 476987 / 482666 454274 / 459952 442917 / 448595 425881 / 420203 306635 / 295278
500000us 505379 / - 488344 / 494023 476987 / 482666 471309 / 476987 465630 / 471309 431560 / 437238
1000000us 505379 / - 505379 / - 494023 / 499701 494023 / 499701 488344 / 494023 471309 / 476987

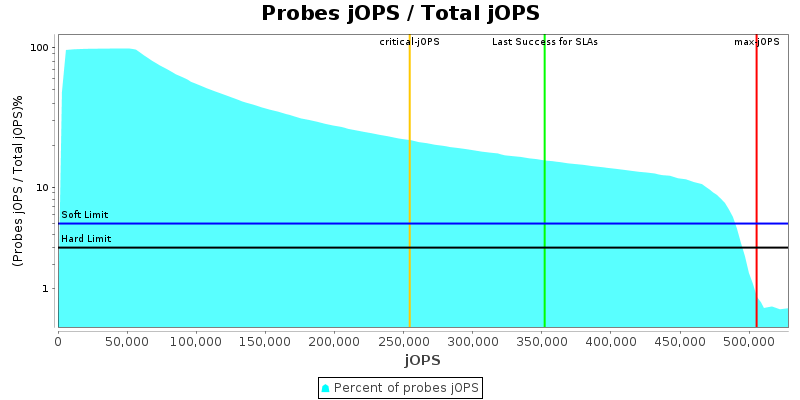

Probes jOPS / Total jOPS

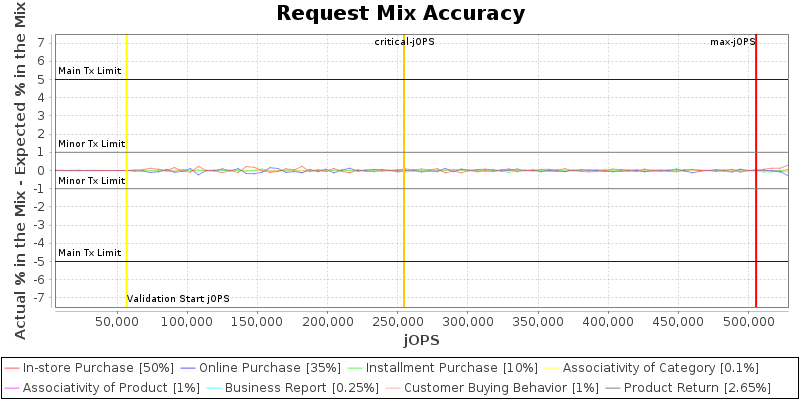

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

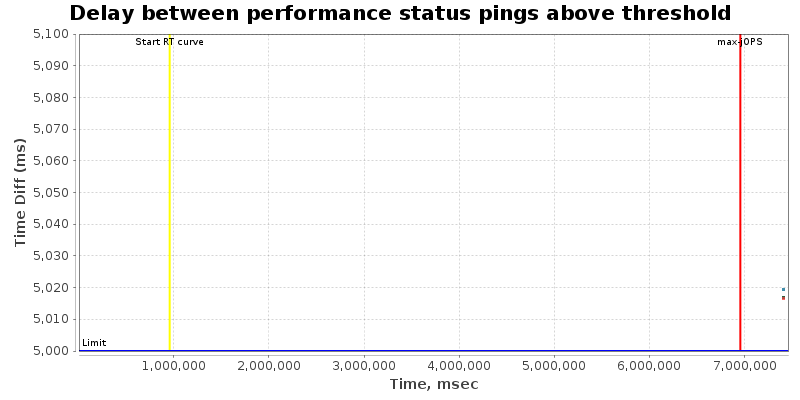

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 232
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 6000000
specjbb.comm.connect.timeouts.read 60000 6000000
specjbb.comm.connect.timeouts.write 60000 6000000
specjbb.comm.connect.worker.pool.max 256 81
specjbb.comm.connect.worker.pool.min 1 24
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 240 {Tier1=234, Tier2=7, Tier3=30}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 240 223
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 567842 IR
High-bound (settled) is 526333 IR
