Supermicro SuperServer SYS-741GE-TNRT 312502 SPECjbb2015-MultiJVM max-jOPS
159906 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: Jan 12, 2024
SPEC license #: 001176 Hardware Availability: Dec-2023 Software Availability: Dec-2023 Publication: Fri Feb 16 13:52:30 EST 2024
Benchmark Results Summary

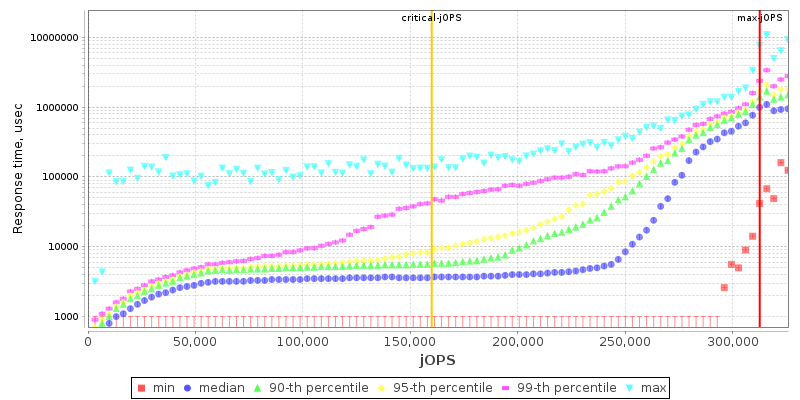

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSuperServer SYS-741GE-TNRT
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableDec-2023
ModelX13DEG-QT
Form Factor2U
CPU NameIntel Xeon Gold 6548Y+
CPU Characteristics32 Core, 2.50 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 4.10 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
Version2.1 12/12/2023
CPU Frequency (MHz)2500
Primary Cache32 KB(I) + 48 KB(D) per core
Secondary Cache2 MB (I+D) per core
Tertiary Cache60 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB M.2 NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 2Rx4 PC5-5600B-R
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameUbuntu 22.04.3 LTS server-amd64
VendorUbuntu
Vendor URLhttps://ubuntu.com/
Version5.15.0-89-generic
AvailableAug-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.9
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.9
AvailableOct-2023
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • Intel HT Technology=Enable
  • Hardware Prefetcher=Enabled
  • Turbo Mode=Enable
  • SNC=SNC2 Enable
  • Power Performance Tuning=BIOS Controls EPB
  • ENERGY_PERF_BIAS_CFG mode=Extreme Performance

Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning

  • tuned-adm profile throughput-performance

  • ulimit -n 1024000
  • echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us
  • echo 0 > /proc/sys/kernel/sched_child_runs_first
  • echo 56000000 > /sys/kernel/debug/sched/latency_ns
  • echo 1000 > /sys/kernel/debug/sched/migration_cost_ns
  • echo 16000000 > /sys/kernel/debug/sched/min_granularity_ns
  • echo 9 > /sys/kernel/debug/sched/nr_migrate
  • echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms
  • echo 1000000 > /proc/sys/kernel/sched_rt_period_us
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/sched_schedstats
  • echo 1 > /sys/kernel/debug/sched/tunable_scaling
  • echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns
  • echo 3000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages
  • echo 8000 > /sys/kernel/mm/hugepages/hugepages-2048kb/nr_hugepages
  • systemctl stop systemed-update-utmp-runlevel.service
  • echo 274877906944 > /proc/sys/kernel/shmmax
  • echo 274877906944 > /proc/sys/kernel/shmall

Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2

Tuning

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all

Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1G -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms29g -Xmx29g -Xmn27g -XX:UseAVX=0 -XX:ParallelGCThreads=24 -XX:+UseHugeTLBFS

Tuning

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

    • Group1: numactl --physcpubind=0-7,64-71 --localalloc
    • Group2:numactl --physcpubind=8-15,72-79 --localalloc
    • Group3:numactl --physcpubind=16-23,80-87 --localalloc
    • Group4:numactl --physcpubind=24-31,88-95 --localalloc
    • Group5: numactl --physcpubind=32-39,96-103 --localalloc
    • Group6:numactl --physcpubind=40-47,104-111 --localalloc
    • Group7:numactl --physcpubind=48-55,112-119 --localalloc
    • Group8:numactl --physcpubind=56-63,120-127 --localalloc

Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2

Tuning

Used numactl to affinitize each Injector JVM to physical cores in a NUMA node.

    • Group1: numactl --physcpubind=0-7,64-71 --localalloc
    • Group2:numactl --physcpubind=8-15,72-79 --localalloc
    • Group3:numactl --physcpubind=16-23,80-87 --localalloc
    • Group4:numactl --physcpubind=24-31,88-95 --localalloc
    • Group5: numactl --physcpubind=32-39,96-103 --localalloc
    • Group6:numactl --physcpubind=40-47,104-111 --localalloc
    • Group7:numactl --physcpubind=48-55,112-119 --localalloc
    • Group8:numactl --physcpubind=56-63,120-127 --localalloc

Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 309212 312502 315791 319081 322370
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 106908 133224 166119 199014 222040 159906
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 6579 / 9868 3289 / 6579 - / 3289 - / 3289 - / 3289 - / 3289
1000us 46053 / 49342 13158 / 16447 9868 / 13158 6579 / 9868 3289 / 6579 - / 3289
5000us 269738 / 273028 236843 / 240133 98685 / 101974 72369 / 75658 49342 / 52632 6579 / 9868
10000us 273028 / 276317 250001 / 253291 200659 / 203948 167764 / 171053 105264 / 108553 6579 / 9868
25000us 276317 / 279607 263159 / 266449 233554 / 236843 217106 / 220396 131580 / 134869 6579 / 9868
50000us 279607 / 282896 269738 / 273028 246712 / 250001 230264 / 233554 164474 / 167764 6579 / 9868
75000us 279607 / 282896 269738 / 273028 253291 / 256580 243422 / 246712 200659 / 197369 6579 / 9868
100000us 282896 / 286186 273028 / 276317 256580 / 259870 250001 / 253291 220396 / 223685 95395 / 9868
200000us 292765 / 296054 279607 / 282896 269738 / 273028 266449 / 269738 256580 / 259870 200659 / 187501
500000us 309212 / 312502 299344 / 302633 286186 / 289475 286186 / 289475 279607 / 282896 266449 / 259870
1000000us 312502 / - 312502 / - 305923 / 309212 305923 / 309212 302633 / 305923 282896 / 286186

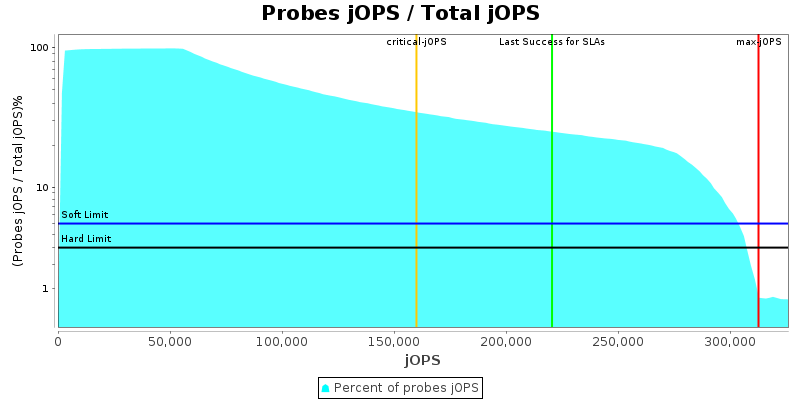

Probes jOPS / Total jOPS

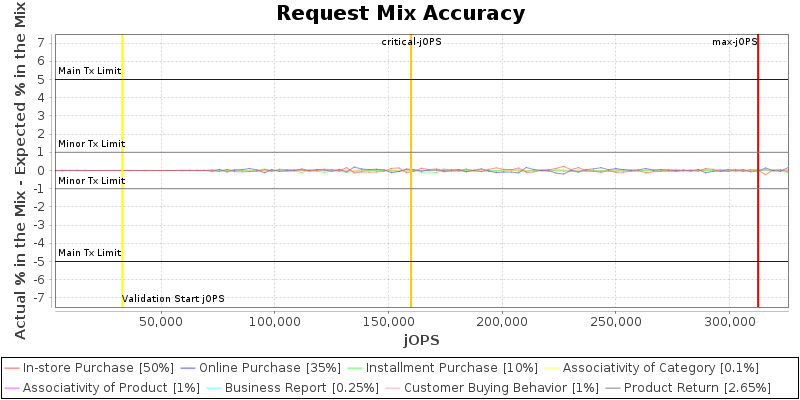

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

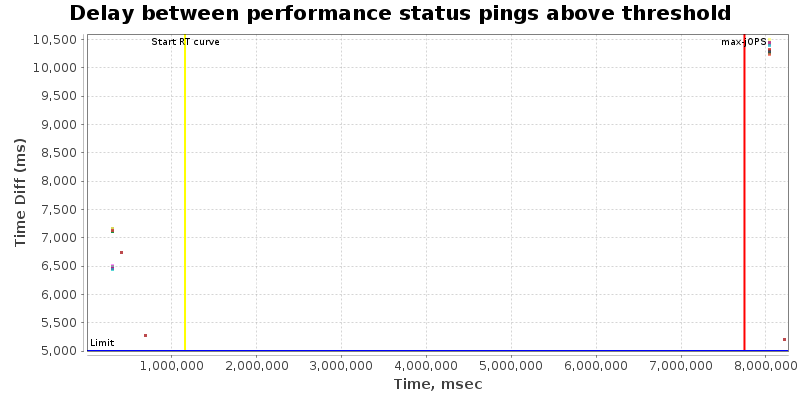

Delay between status pings

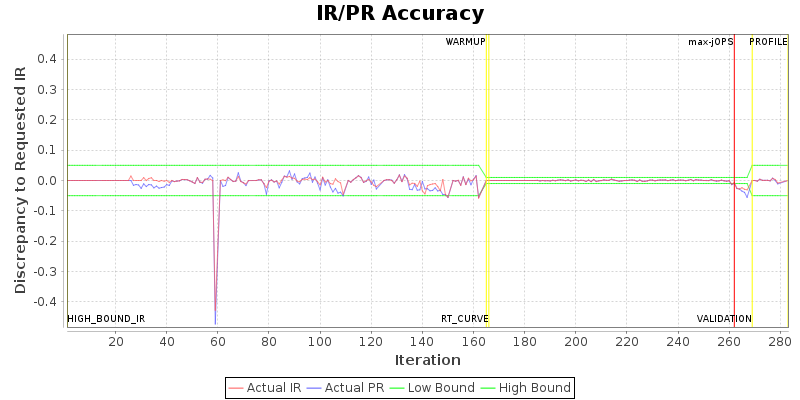

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 232
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 81
specjbb.comm.connect.worker.pool.min 1 24
specjbb.controller.host localhost localhost
specjbb.controller.port 24000 24000
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 128 {Tier1=310, Tier2=7, Tier3=32}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 128 223
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 328949 IR
High-bound (settled) is 326982 IR
