SPECjbb2015 Report for jbb2015-20231213-01208 : 558626 max-jOPS ; 273767 critical-jOPS

SUT Description

Hardware hw_1
Name	RS720-E11-RS12U
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Dec-2023
Model	RS720-E11-RS12U
Form Factor	2U
CPU Name	Intel Xeon Platinum 8592+
CPU Characteristics	64 Core, 1.90 GHz, 320 MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	2001
CPU Frequency (MHz)	1900
Primary Cache	32 KB (I) + 48 KB (D) on chip per core
Secondary Cache	2 MB (I+D) per core
Tertiary Cache	320 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 1.6 TB PCIE NVMe SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.9
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.9
Available	Oct-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Engine Boost = Aggressive SNC = Enable SNC2 (2-clusters) Patrol Scrub = Disabled SR-IOV Support = Disabled DCU Streamer Prefetching = Disabled ENERGY_PERF_BIAS_CFG mode = Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	tuned-adm profile throughput-performance cpupower frequency-set -g performance systemctl stop systemd-update-utmp-runlevel.service ulimit -n 1024000 echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 56000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 300 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=99 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=32
Tuning	Used numactl to affinitize each Backend JVM to 16 Cores / 32 Threads numactl --physcpubind=0-15,128-143 --localalloc numactl --physcpubind=16-31,144-159 --localalloc numactl --physcpubind=32-47,160-175 --localalloc numactl --physcpubind=48-63,176-191 --localalloc numactl --physcpubind=64-79,192-207 --localalloc numactl --physcpubind=80-95,208-223 --localalloc numactl --physcpubind=96-111,224-239 --localalloc numactl --physcpubind=112-127,240-255 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning	Used numactl to affinitize each TxInjector JVM to 16 Cores / 32 Threads numactl --physcpubind=0-15,128-143 --localalloc numactl --physcpubind=16-31,144-159 --localalloc numactl --physcpubind=32-47,160-175 --localalloc numactl --physcpubind=48-63,176-191 --localalloc numactl --physcpubind=64-79,192-207 --localalloc numactl --physcpubind=80-95,208-223 --localalloc numactl --physcpubind=96-111,224-239 --localalloc numactl --physcpubind=112-127,240-255 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	551813	558626	565438	572251	579063

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	126031	235031	316781	384907	425782	273767

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 6813	- / 6813	- / 6813	- / 6813	- / 6813	- / 6813
1000us	- / 6813	- / 6813	- / 6813	- / 6813	- / 6813	- / 6813
5000us	510938 / 517751	463251 / 470063	34063 / 40875	20438 / 27250	- / 6813	- / 6813
10000us	517751 / 524563	476876 / 483688	272500 / 279313	224813 / 231625	122625 / 129438	- / 6813
25000us	524563 / 531376	497313 / 504126	442813 / 449626	401938 / 408751	231625 / 238438	- / 6813
50000us	524563 / 531376	504126 / 510938	456438 / 463251	422376 / 429188	313375 / 320188	- / 6813
75000us	531376 / 538188	510938 / 517751	476876 / 483688	449626 / 456438	381501 / 388313	102188 / 27250
100000us	531376 / 538188	517751 / 524563	483688 / 490501	470063 / 476876	422376 / 429188	190750 / 40875
200000us	545001 / 551813	524563 / 531376	504126 / 510938	497313 / 504126	476876 / 483688	374688 / 327000
500000us	551813 / 558626	545001 / 551813	524563 / 531376	517751 / 524563	510938 / 517751	476876 / 483688
1000000us	558626 / -	551813 / 558626	545001 / 551813	545001 / 551813	531376 / 538188	510938 / 517751

Number of probes

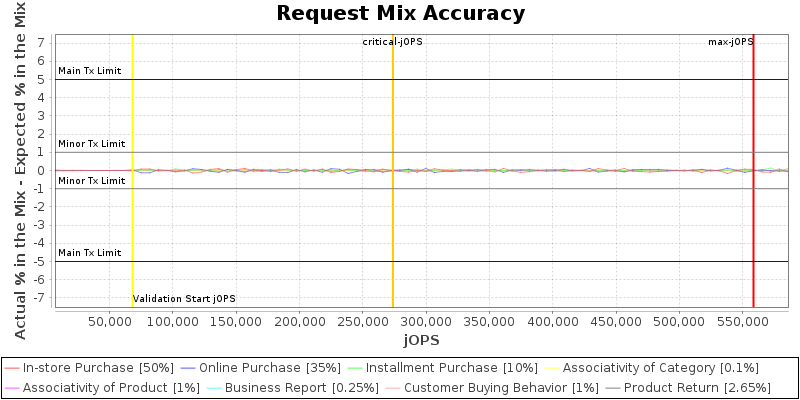

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

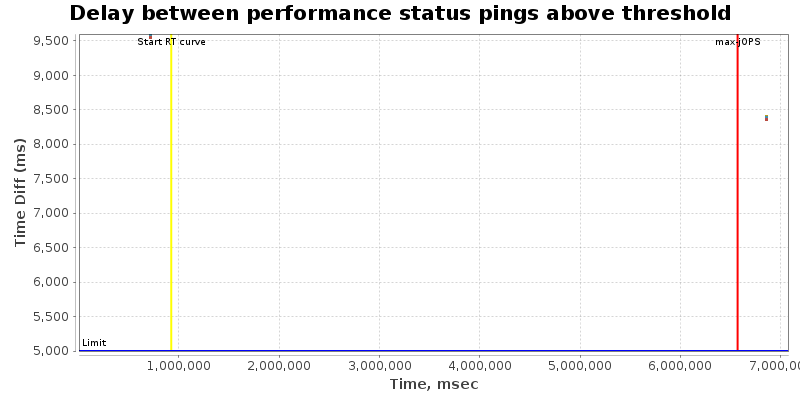

Delay between performance status pings during RT Curve (Response-Throughput Curve)

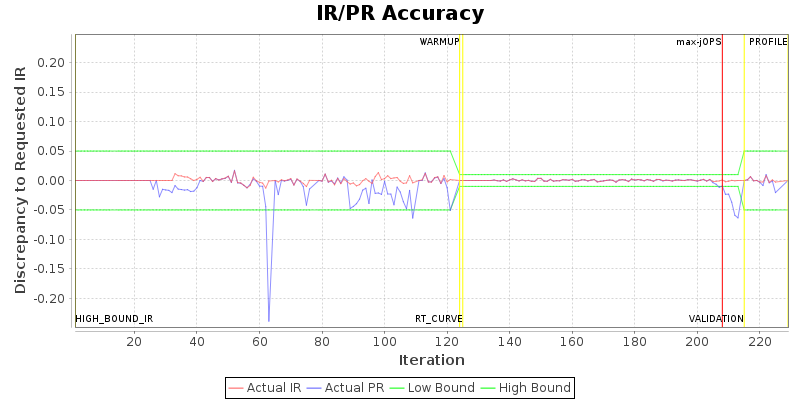

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	232	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	81	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	24	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	256	{Tier1=234, Tier2=6, Tier3=32}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	256	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 681251 IR

High-bound (settled) is 589141 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

ASUSTeK Computer Inc. RS720-E11-RS12U	558626 SPECjbb2015-MultiJVM max-jOPS 273767 SPECjbb2015-MultiJVM critical-jOPS
Tested by: ASUSTeK Computer Inc.	Test Sponsor: ASUSTeK Computer Inc.	Test location: Taipei, Taiwan	Test date: Nov 28, 2023
SPEC license #: 9016	Hardware Availability: Dec-2023	Software Availability: Oct-2023	Publication: Thu Jan 11 09:47:33 EST 2024
