SPECjbb2015 Report for jbb2015-20231129-01205 : 545001 max-jOPS ; 298157 critical-jOPS

SUT Description

Hardware hw_1
Name	SuperServer SYS-221H-TNR
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Dec-2023
Model	X13DEM
Form Factor	2U
CPU Name	INTEL XEON PLATINUM 8592+
CPU Characteristics	64 Core, 1.9 GHz, 320MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	2.0 (11/09/2023)
CPU Frequency (MHz)	1900
Primary Cache	32 KB (I) + 48 KB (D) on chip per core
Secondary Cache	2 MB (I+D) on chip per core
Tertiary Cache	320 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960 GB NVMe SSD
File System	ext4
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	64GB 2Rx4 PC5-5600B-R
# and type of Network Interface Cards (NICs)	1x 10 Gbit + 1x 1Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1200W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Ubuntu 22.04.3 LTS
Vendor	Ubuntu
Vendor URL	http://www.ubuntu.com/
Version	5.15.0-88-generic
Available	Aug-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.9
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.9
Available	Oct-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SNC=Enable SNC2(2- Clusters) Power Technology=Custom Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Extreme Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 56000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 16000000 > /sys/kernel/debug/sched/min_granularity_ns echo 9 > /sys/kernel/debug/sched/nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000 echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 8000 > /sys/kernel/mm/hugepages/hugepages-2048kb/nr_hugepages systemctl stop systemed-update-utmp-runlevel.service echo 274877906944 > /proc/sys/kernel/shmmax echo 274877906944 > /proc/sys/kernel/shmall
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1G -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms29g -Xmx29g -Xmn27g -XX:UseAVX=0 -XX:ParallelGCThreads=32 -XX:+UseHugeTLBFS
Tuning	Used numactl to affinitize 2 Backend JVM to physcical cores in a NUMA node Group1: numactl --physcpubind=0-15,128-143 --localalloc Group2:numactl --physcpubind=16-31,144-159 --localalloc Group3:numactl --physcpubind=32-47,160-175 --localalloc Group4:numactl --physcpubind=48-63,176-191 --localalloc Group5: numactl --physcpubind=64-79,192-207 --localalloc Group6:numactl --physcpubind=80-95,208-223 --localalloc Group7:numactl --physcpubind=96-111,224-239 --localalloc Group8:numactl --physcpubind=112-127,240-255 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize 2 Injector JVM to physcical cores in a NUMA node Group1: numactl --physcpubind=0-15,128-143 --localalloc Group2:numactl --physcpubind=16-31,144-159 --localalloc Group3:numactl --physcpubind=32-47,160-175 --localalloc Group4:numactl --physcpubind=48-63,176-191 --localalloc Group5: numactl --physcpubind=64-79,192-207 --localalloc Group6:numactl --physcpubind=80-95,208-223 --localalloc Group7:numactl --physcpubind=96-111,224-239 --localalloc Group8:numactl --physcpubind=112-127,240-255 --localalloc
Notes	None

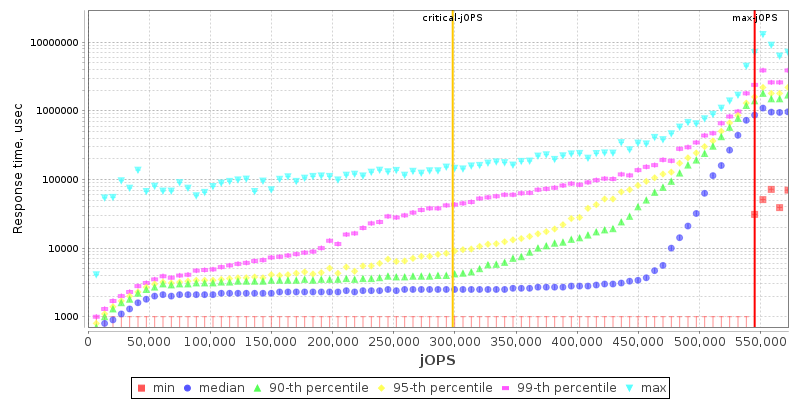

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	538188	545001	551813	558626	565438

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	194156	241844	316781	378094	418969	298157

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	6813 / 13625	- / 6813	- / 6813	- / 6813	- / 6813	- / 6813
1000us	313375 / 238438	20438 / 27250	13625 / 20438	6813 / 13625	6813 / 13625	- / 6813
5000us	504126 / 510938	463251 / 470063	320188 / 327000	218000 / 197563	102188 / 109000	6813 / 13625
10000us	510938 / 517751	476876 / 483688	367876 / 374688	313375 / 320188	190750 / 197563	6813 / 13625
25000us	517751 / 524563	490501 / 497313	436001 / 442813	388313 / 395126	238438 / 245250	6813 / 13625
50000us	517751 / 524563	497313 / 504126	456438 / 463251	415563 / 422376	313375 / 320188	6813 / 13625
75000us	524563 / 531376	504126 / 510938	463251 / 470063	442813 / 449626	374688 / 381501	149875 / 27250
100000us	524563 / 531376	504126 / 510938	476876 / 483688	456438 / 463251	415563 / 422376	204375 / 40875
200000us	531376 / 538188	517751 / 524563	497313 / 504126	483688 / 490501	476876 / 483688	381501 / 367876
500000us	545001 / -	531376 / 538188	517751 / 524563	510938 / 517751	510938 / 517751	476876 / 483688
1000000us	545001 / -	545001 / -	531376 / 538188	531376 / 538188	531376 / 538188	510938 / 517751

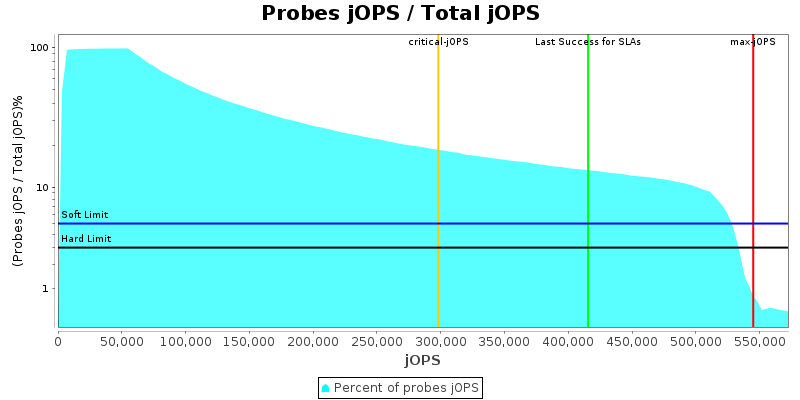

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

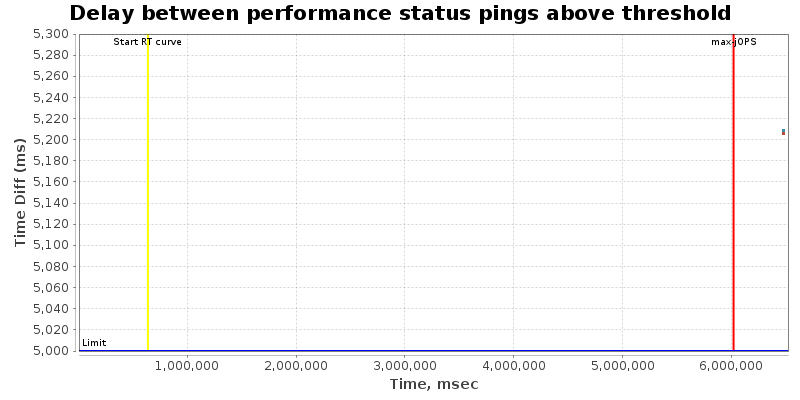

Delay between performance status pings during RT Curve (Response-Throughput Curve)

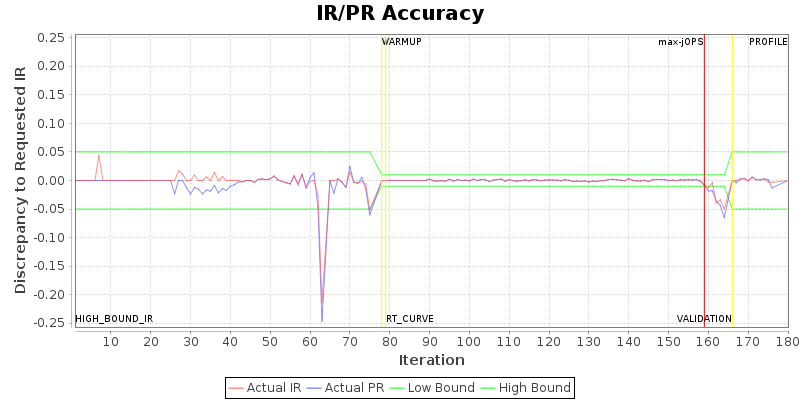

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.host	localhost	localhost
specjbb.controller.port	24000	24000
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	256	{Tier1=224, Tier2=57, Tier3=25}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	256	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 681251 IR

High-bound (settled) is 567842 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Supermicro SuperServer SYS-221H-TNR	545001 SPECjbb2015-MultiJVM max-jOPS 298157 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: Nov 15, 2023
SPEC license #: 001176	Hardware Availability: Dec-2023	Software Availability: Oct-2023	Publication: Thu Dec 14 10:44:19 EST 2023
