Lenovo Global Technology ThinkSystem SR665 V3 823745 SPECjbb2015-MultiJVM max-jOPS
347927 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Nov 14, 2023
SPEC license #: 9017 Hardware Availability: Dec-2023 Software Availability: Oct-2023 Publication: Fri Dec 8 10:24:38 EST 2023
Benchmark Results Summary

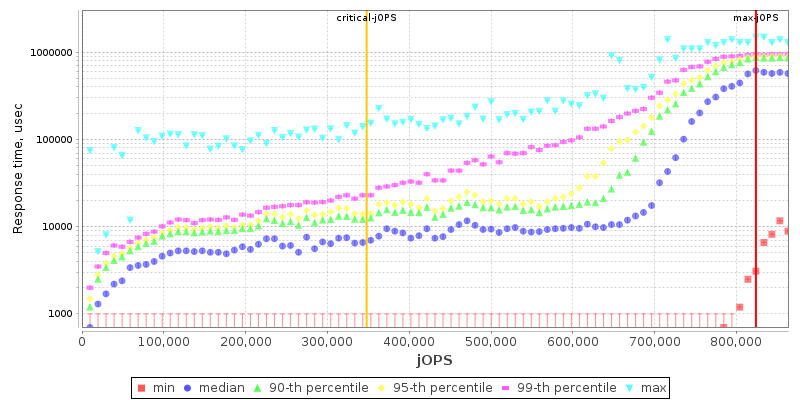

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR665 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableDec-2023
ModelThinkSystem SR665 V3
Form Factor2U
CPU NameAMD EPYC 9684X
CPU Characteristics96 Core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
VersionKAE115K
CPU Frequency (MHz)2550
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache1152MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)3072
# and size of DIMM(s)24 x 128 GB
Memory Details128 GB 2S2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.4974)
AvailableOct-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 21.0.1
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 21.0.1
AvailableOct-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS4
  • L2 Stream HW Prefetcher set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=48 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -Xnoclassgc
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning Affinitize each TxInjector JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 813939 823745 833552 843358 853165
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 93161 357937 465808 544260 603099 347927
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9806 / 19613 - / 9806 - / 9806 - / 9806 - / 9806 - / 9806
1000us 49032 / 58839 9806 / 19613 - / 9806 - / 9806 - / 9806 - / 9806
5000us 696261 / 470712 176517 / 117678 49032 / 58839 49032 / 58839 29419 / 39226 - / 9806
10000us 725680 / 735487 637422 / 460905 205936 / 215743 186323 / 176517 88258 / 98065 29419 / 9806
25000us 735487 / 745293 696261 / 706067 637422 / 647228 598196 / 608002 353034 / 362840 58839 / 9806
50000us 745293 / 755100 715874 / 725680 666841 / 676648 627615 / 637422 460905 / 470712 58839 / 9806
75000us 755100 / 764906 725680 / 735487 676648 / 686454 637422 / 647228 539357 / 549163 58839 / 39226
100000us 764906 / 774713 725680 / 735487 686454 / 696261 666841 / 676648 598196 / 608002 313808 / 68645
200000us 804132 / 813939 745293 / 755100 706067 / 715874 696261 / 706067 666841 / 676648 539357 / 362840
500000us 823745 / - 804132 / 813939 755100 / 764906 745293 / 755100 725680 / 735487 686454 / 647228
1000000us 823745 / - 823745 / - 823745 / - 823745 / - 823745 / - 725680 / 715874

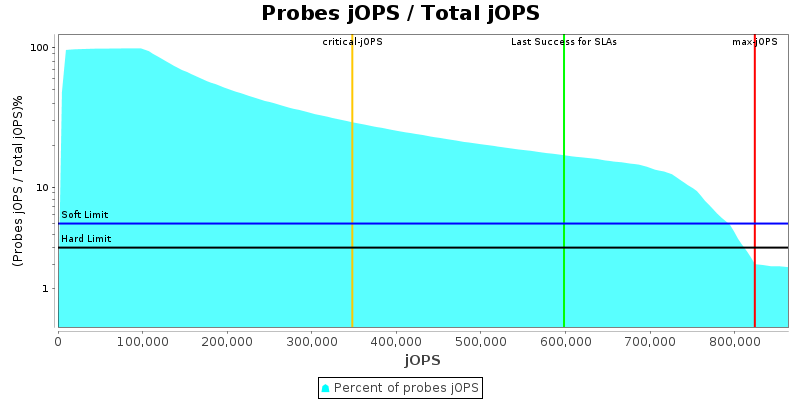

Probes jOPS / Total jOPS

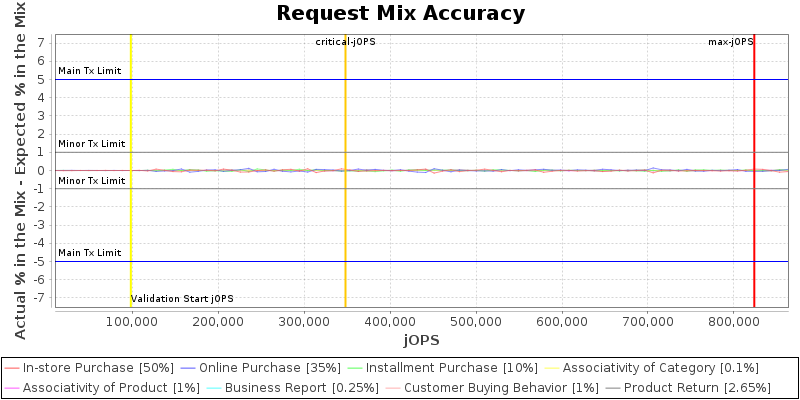

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

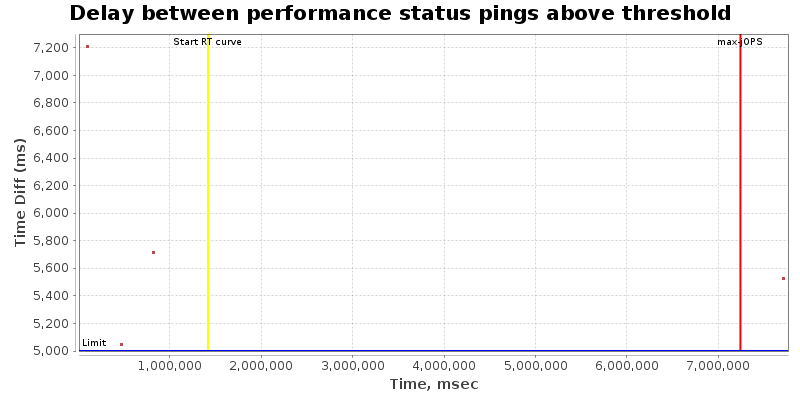

Delay between status pings

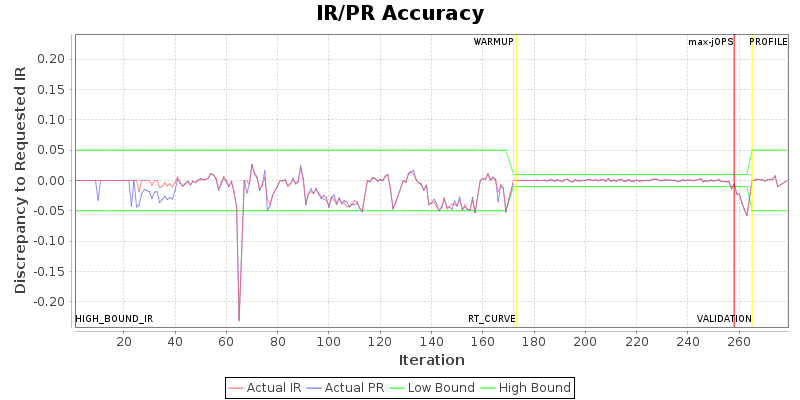

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.worker.pool.max 256 60 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
specjbb.comm.connect.worker.pool.min 1 10 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
specjbb.customerDriver.threads 64 {probe=128, saturate=128, service=128}
specjbb.forkjoin.workers 48 {Tier1=224, Tier2=18, Tier3=28}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 48 12
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 980649 IR
High-bound (settled) is 862802 IR
