SPECjbb2015 Report for jbb2015-20231018-01179 : 505379 max-jOPS ; 247991 critical-jOPS

SUT Description

Hardware hw_1
Name	NF5180G7
Vendor	IEIT Systems Co., Ltd.
Vendor URL	https://www.ieisystem.com/
Available	Oct-2023
Model	NF5180G7
Form Factor	1U
CPU Name	Intel Xeon Platinum 8490H
CPU Characteristics	60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	05.12.00
CPU Frequency (MHz)	1900
Primary Cache	32 KB(I)+48 KB(D)on chip per core
Secondary Cache	2MB (I+D) per core
Tertiary Cache	112.5MB (I+D) on chip per chip
Other Cache	None
Disk	1x 4TB NVMe SSD
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	16 x 32GB
Memory Details	16 x 32 GB 2Rx8 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1300W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 21
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 21
Available	Sep-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning SNC=Enable SNC4 LLC dead line alloc=Disabled Memory Patrol Scrub=Disabled Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 131072 cpupower frequency-set -g performance echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 9 > /sys/kernel/debug/sched/nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 300 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages tuned-adm profile throughput-performance
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=99 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=30
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	494023	499701	505379	511058	516736

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	161835	195905	264046	320831	349223	247991

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	11357 / 17035	5678 / 11357	- / 5678	- / 5678	- / 5678	- / 5678
1000us	215780 / 210102	22714 / 28392	17035 / 22714	11357 / 17035	5678 / 11357	- / 5678
5000us	465630 / 471309	420203 / 425881	312313 / 317992	204423 / 193066	96533 / 102212	11357 / 17035
10000us	471309 / 476987	425881 / 431560	329348 / 335027	289599 / 295278	158996 / 164674	11357 / 17035
25000us	471309 / 476987	448595 / 454274	380454 / 386133	346384 / 352062	193066 / 198745	11357 / 17035
50000us	476987 / 482666	454274 / 459952	403168 / 408846	374776 / 380454	261207 / 266886	11357 / 17035
75000us	476987 / 482666	459952 / 465630	414525 / 420203	380454 / 386133	317992 / 323670	11357 / 17035
100000us	482666 / 488344	465630 / 471309	425881 / 431560	403168 / 408846	346384 / 352062	158996 / 17035
200000us	488344 / 494023	471309 / 476987	448595 / 454274	442917 / 448595	414525 / 420203	312313 / 306635
500000us	499701 / 505379	488344 / 494023	471309 / 476987	471309 / 476987	459952 / 465630	420203 / 425881
1000000us	505379 / -	505379 / -	494023 / 499701	488344 / 494023	488344 / 494023	471309 / 476987

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

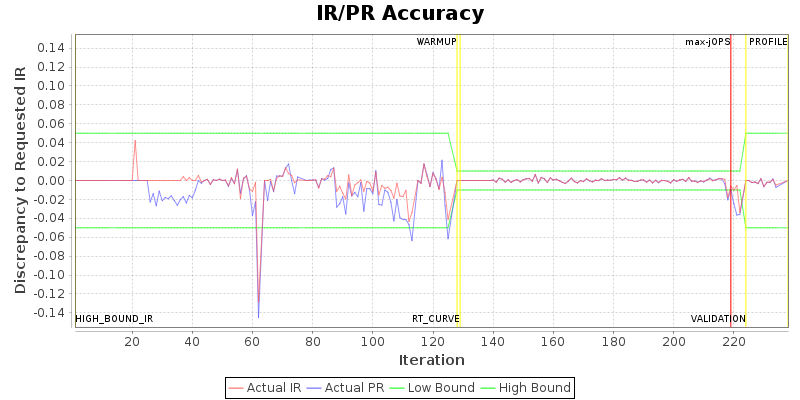

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	240	{Tier1=234, Tier2=7, Tier3=30}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	240	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 567842 IR

High-bound (settled) is 526333 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

IEIT Systems Co., Ltd. NF5180G7	505379 SPECjbb2015-MultiJVM max-jOPS 247991 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd.	Test Sponsor: IEIT Systems Co., Ltd.	Test location: Jinan, China	Test date: Oct 8, 2023
SPEC license #: 3358	Hardware Availability: Oct-2023	Software Availability: Sep-2023	Publication: Thu Nov 2 12:07:05 EDT 2023

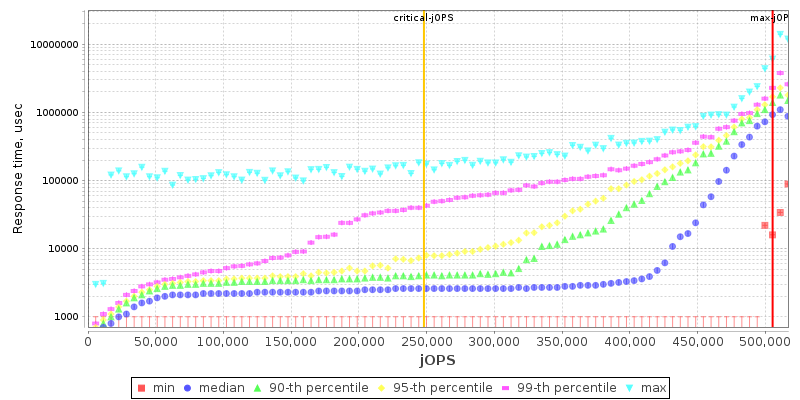

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 8) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
