SPECjbb2015 Report for jbb2015-20230904-01160 : 216077 max-jOPS ; 101463 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge C6615
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Sep-2023
Model	PowerEdge C6615
Form Factor	1U Modular
CPU Name	AMD EPYC 8534P
CPU Characteristics	64 Core, 2.3 GHz, 128MB L3 Cache (Max. Boost Clock up to 3.1GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	1.0.2
CPU Frequency (MHz)	2300
Primary Cache	32 KB (I) + 32 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	128 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x NVME M.2 480GB SSD
File System	xfs
Memory Amount (GB)	192
# and size of DIMM(s)	6 x 32 GB
Memory Details	32 GB 2Rx8 PC5-4800B-R (slots A1-A6 populated)
# and type of Network Interface Cards (NICs)	1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)	2 x 2400
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle JDK v17.0.8
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Logical Processor : Enabled L1 Stream HW Prefetcher : Disabled L2 Stream HW Prefetcher : Disabled MADT Core Enumeration : Linear NUMA Nodes Per Socket : 2 L3 cache as NUMA Domain : Enabled System Profile : Custom Determinism Slider : Power Determinism ACPI CST C2 Latency : 18
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=300 -XX:LoopUnrollLimit=200 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512
Tuning	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,64-71 --localalloc Group2: --physcpubind=8-15,72-79 --localalloc Group3: --physcpubind=16-23,80-87 --localalloc Group4: --physcpubind=24-31,88-95 --localalloc Group5: --physcpubind=32-39,96-103 --localalloc Group6: --physcpubind=40-47,104-111 --localalloc Group7: --physcpubind=48-55,112-119 --localalloc Group8: --physcpubind=56-63,120-127 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize each TxInjector JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,64-71 --localalloc Group2: --physcpubind=8-15,72-79 --localalloc Group3: --physcpubind=16-23,80-87 --localalloc Group4: --physcpubind=24-31,88-95 --localalloc Group5: --physcpubind=32-39,96-103 --localalloc Group6: --physcpubind=40-47,104-111 --localalloc Group7: --physcpubind=48-55,112-119 --localalloc Group8: --physcpubind=56-63,120-127 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	211379	213728	216077	218425	220774

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	69285	85726	106864	123304	137396	101463

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2349	- / 2349	- / 2349	- / 2349	- / 2349	- / 2349
1000us	7046 / 9395	4697 / 7046	- / 2349	- / 2349	- / 2349	- / 2349
5000us	145617 / 147966	65762 / 68111	46973 / 49322	42276 / 44625	37579 / 39927	2349 / 4697
10000us	155012 / 157360	122130 / 124479	86900 / 89249	77506 / 79854	68111 / 70460	9395 / 4697
25000us	159709 / 162058	150314 / 152663	129176 / 131525	119782 / 122130	86900 / 84552	9395 / 4697
50000us	164406 / 166755	157360 / 159709	143268 / 145617	136222 / 138571	105690 / 108038	9395 / 4697
75000us	164406 / 166755	159709 / 162058	150314 / 152663	145617 / 147966	122130 / 124479	9395 / 4697
100000us	169104 / 171452	162058 / 164406	152663 / 155012	150314 / 152663	136222 / 138571	37579 / 4697
200000us	185544 / 180847	169104 / 171452	164406 / 166755	162058 / 164406	157360 / 159709	93946 / 11743
500000us	213728 / 216077	194939 / 197287	183195 / 185544	180847 / 183195	178498 / 180847	155012 / 157360
1000000us	216077 / -	213728 / 216077	209031 / 211379	209031 / 211379	204333 / 206682	176149 / 178498

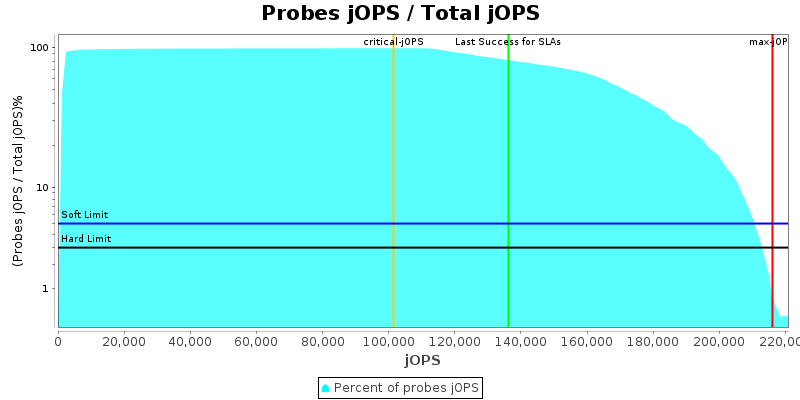

Number of probes

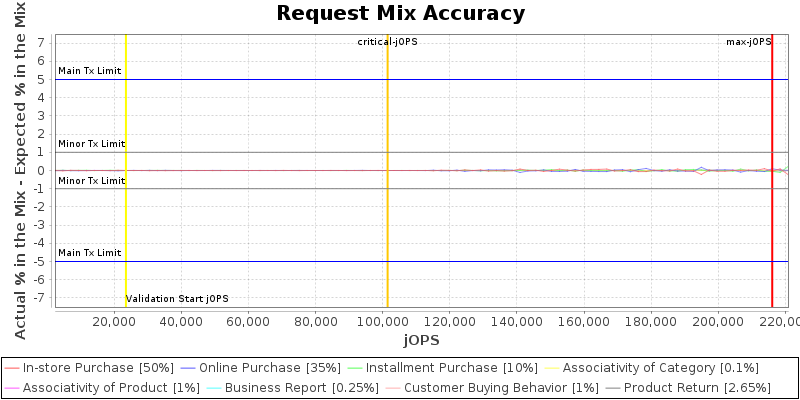

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

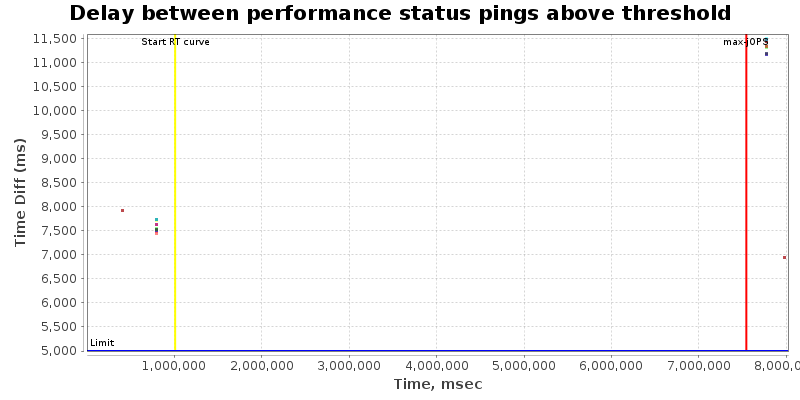

Delay between performance status pings during RT Curve (Response-Throughput Curve)

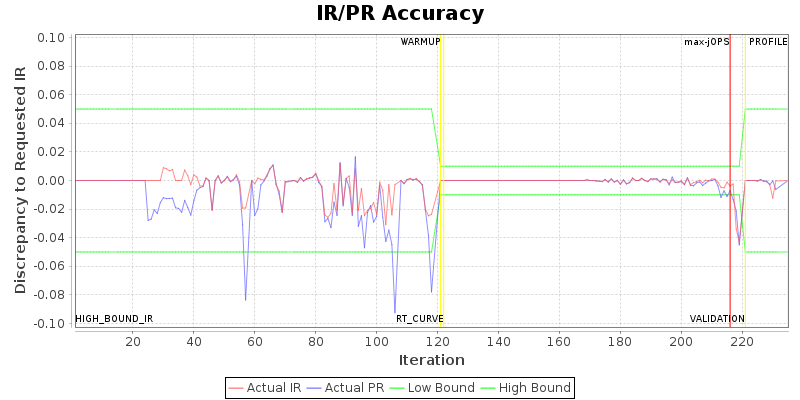

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	256	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200
specjbb.comm.connect.worker.pool.min	1	1	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=140, saturate=110}
specjbb.forkjoin.workers	128	{Tier1=300, Tier2=32, Tier3=50}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	128	16
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 234866 IR

High-bound (settled) is 227505 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Dell Inc. PowerEdge C6615	216077 SPECjbb2015-MultiJVM max-jOPS 101463 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Aug 24,2023
SPEC license #: 6573	Hardware Availability: Sep-2023	Software Availability: Jul-2023	Publication: Tue Sep 26 12:30:28 EDT 2023

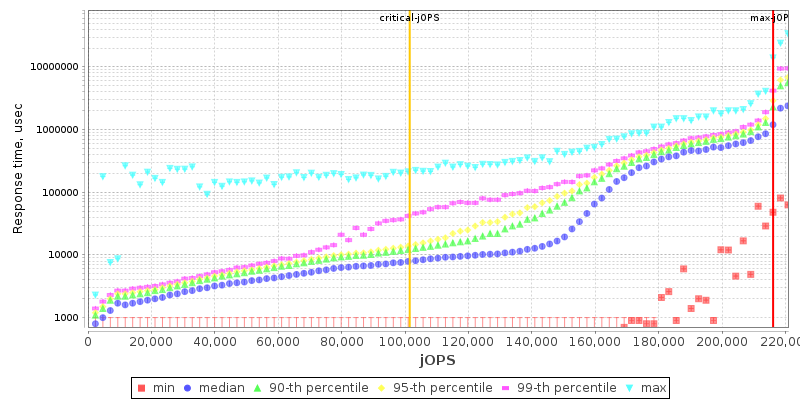

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 8) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
