SPECjbb2015 Report for jbb2015-20230823-01155 : 214961 max-jOPS ; 101759 critical-jOPS

SUT Description

Hardware hw_1
Name	A+ Server AS -1015SV-WTNRT
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Sep-2023
Model	H13SVW-NT
Form Factor	1U
CPU Name	AMD EPYC 8534P
CPU Characteristics	64 Core, 2.3 GHz, 128MB L3 Cache (Max. Boost Clock up to 3.1GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	1.0 (08/08/2023)
CPU Frequency (MHz)	2300
Primary Cache	32 KB(I) + 32 KB(D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	128 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 256GB NVMe PCIe Gen3.0
File System	xfs
Memory Amount (GB)	384
# and size of DIMM(s)	6 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 860W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle JDK v17.0.8
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS2 Determinism Control = Manual Determinism Slider = Disable Performance Determinism L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 225 PPT Control = Manual PPT = 225
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=300 -XX:LoopUnrollLimit=200 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512
Tuning	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,64-71 --localalloc Group2: --physcpubind=8-15,72-79 --localalloc Group3: --physcpubind=16-23,80-87 --localalloc Group4: --physcpubind=24-31,88-95 --localalloc Group5: --physcpubind=32-39,96-103 --localalloc Group6: --physcpubind=40-47,104-111 --localalloc Group7: --physcpubind=48-55,112-119 --localalloc Group8: --physcpubind=56-63,120-127 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize each Injector JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,64-71 --localalloc Group2: --physcpubind=8-15,72-79 --localalloc Group3: --physcpubind=16-23,80-87 --localalloc Group4: --physcpubind=24-31,88-95 --localalloc Group5: --physcpubind=32-39,96-103 --localalloc Group6: --physcpubind=40-47,104-111 --localalloc Group7: --physcpubind=48-55,112-119 --localalloc Group8: --physcpubind=56-63,120-127 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	210387	212674	214961	217248	219535

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	72034	85755	106337	120058	138352	101759

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4574 / 6860	2287 / 4574	- / 2287	- / 2287	- / 2287	- / 2287
1000us	20581 / 22868	9147 / 11434	4574 / 6860	4574 / 6860	2287 / 4574	- / 2287
5000us	150930 / 153217	70891 / 73178	48023 / 50310	45736 / 48023	38876 / 41163	4574 / 6860
10000us	157791 / 160077	132636 / 134922	91473 / 93760	82326 / 84612	70891 / 73178	18295 / 6860
25000us	162364 / 164651	153217 / 155504	132636 / 134922	118915 / 121201	84612 / 86899	18295 / 6860
50000us	164651 / 166938	160077 / 162364	146356 / 148643	137209 / 139496	105194 / 107481	18295 / 6860
75000us	166938 / 169225	162364 / 164651	153217 / 155504	146356 / 148643	118915 / 121201	18295 / 6860
100000us	169225 / 171511	164651 / 166938	157791 / 160077	150930 / 153217	137209 / 139496	18295 / 6860
200000us	178372 / 180659	171511 / 173798	164651 / 166938	164651 / 166938	162364 / 164651	77752 / 13721
500000us	212674 / 214961	196667 / 198953	185232 / 187519	182946 / 185232	178372 / 180659	160077 / 155504
1000000us	214961 / -	212674 / 214961	208101 / 210387	208101 / 210387	205814 / 208101	178372 / 166938

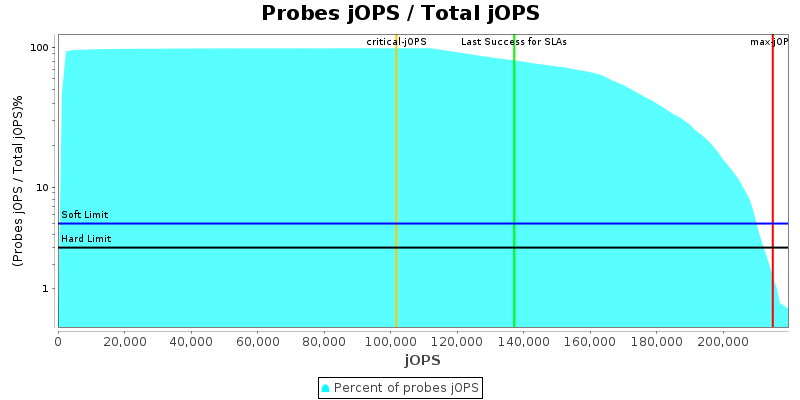

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	256	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200
specjbb.comm.connect.worker.pool.min	1	1	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=140, saturate=110}
specjbb.forkjoin.workers	128	{Tier1=300, Tier2=32, Tier3=50}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	128	16
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 228682 IR

High-bound (settled) is 221371 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Supermicro A+ Server AS -1015SV-WTNRT	214961 SPECjbb2015-MultiJVM max-jOPS 101759 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: Aug 11, 2023
SPEC license #: 001176	Hardware Availability: Sep-2023	Software Availability: Aug-2023	Publication: Wed Sep 20 16:02:40 EDT 2023
