SPECjbb2015 Report for jbb2015-20230814-01150 : 401393 max-jOPS ; 175081 critical-jOPS

SUT Description

Hardware hw_1
Name	QuantaGrid S44NL-1U
Vendor	Quanta Cloud Technology
Vendor URL	http://qct.io
Available	Aug-2023
Model	QuantaGrid S44NL-1U
Form Factor	1U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 core, 2.4GHz, 384MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	96
Cores Per Chip	96
Threads Per System	192
Threads Per Core	2
Version	3A08 released Jun-2023
CPU Frequency (MHz)	2400
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960 GB NVMe SSD
File System	XFS
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64GB 2Rx4 PC5-38400R , running at 4800 MHz
# and type of Network Interface Cards (NICs)	Intel 10 Gigabit Ethernet X710-AT2 2-port
Power Supply Quantity and Rating (W)	1 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.7
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 17.0.7
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	L1 Stream HW Prefetcher : Disabled L2 Stream HW Prefetcher : Disabled NUMA Nodes Per Socket : NPS4 L3 cache as NUMA Domain : Enabled Determinism Slider : Power Determinism ACPI CST C2 Latency : 18 PPT Control : 400
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description	os_1
Tuning	echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 150000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 300000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing UserTasksMax=970000 DefaultTasksMax=970000 echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	"Notes here"
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms30g -Xmx30g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize each Backend JVM to physcical cores in a NUMA node. numactl --physcpubind=0-7,96-103 --localalloc numactl --physcpubind=8-15,104-111 --localalloc numactl --physcpubind=16-23,112-119 --localalloc numactl --physcpubind=24-31,120-127 --localalloc numactl --physcpubind=32-39,128-135 --localalloc numactl --physcpubind=40-47,136-143 --localalloc numactl --physcpubind=48-55,144-151 --localalloc numactl --physcpubind=56-63,152-159 --localalloc numactl --physcpubind=64-71,160-167 --localalloc numactl --physcpubind=72-79,168-175 --localalloc numactl --physcpubind=80-87,176-183 --localalloc numactl --physcpubind=88-95,184-191 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize each Backend JVM to physcical cores in a NUMA node. numactl --physcpubind=0-7,96-103 --localalloc numactl --physcpubind=8-15,104-111 --localalloc numactl --physcpubind=16-23,112-119 --localalloc numactl --physcpubind=24-31,120-127 --localalloc numactl --physcpubind=32-39,128-135 --localalloc numactl --physcpubind=40-47,136-143 --localalloc numactl --physcpubind=48-55,144-151 --localalloc numactl --physcpubind=56-63,152-159 --localalloc numactl --physcpubind=64-71,160-167 --localalloc numactl --physcpubind=72-79,168-175 --localalloc numactl --physcpubind=80-87,176-183 --localalloc numactl --physcpubind=88-95,184-191 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	392943	397168	401393	405618	409843

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	111967	140487	182739	224511	254919	175081

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 4225	- / 4225	- / 4225	- / 4225	- / 4225	- / 4225
1000us	8450 / 12676	4225 / 8450	- / 4225	- / 4225	- / 4225	- / 4225
5000us	299988 / 304214	97179 / 101405	50702 / 54927	46477 / 50702	38027 / 42252	- / 4225
10000us	312664 / 316889	278863 / 283088	160557 / 164782	135206 / 139431	109855 / 114080	- / 4225
25000us	316889 / 321114	299988 / 304214	257737 / 261962	236611 / 232385	143656 / 130981	12676 / 4225
50000us	321114 / 325340	312664 / 316889	283088 / 287313	266187 / 270412	194359 / 147882	12676 / 4225
75000us	325340 / 329565	312664 / 316889	291538 / 295763	283088 / 278863	236611 / 147882	12676 / 4225
100000us	325340 / 329565	321114 / 325340	299988 / 304214	291538 / 295763	266187 / 232385	12676 / 4225
200000us	354916 / 350691	329565 / 333790	321114 / 325340	312664 / 316889	299988 / 295763	169008 / 25351
500000us	392943 / 397168	367592 / 371817	346466 / 350691	346466 / 350691	333790 / 338015	266187 / 130981
1000000us	401393 / -	397168 / 401393	388717 / 392943	388717 / 392943	380267 / 384492	321114 / 147882

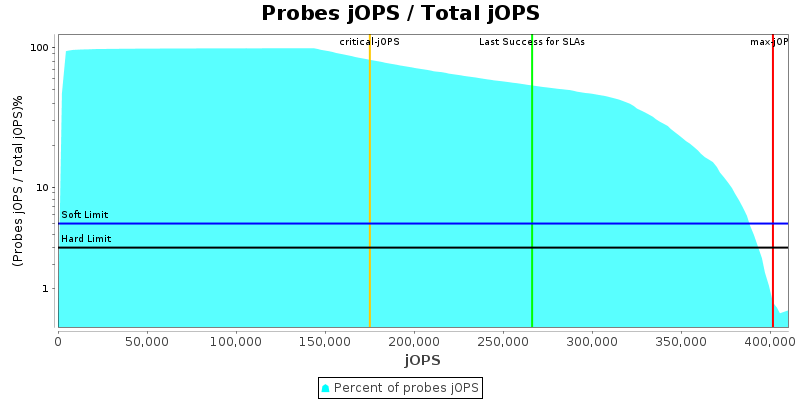

Number of probes

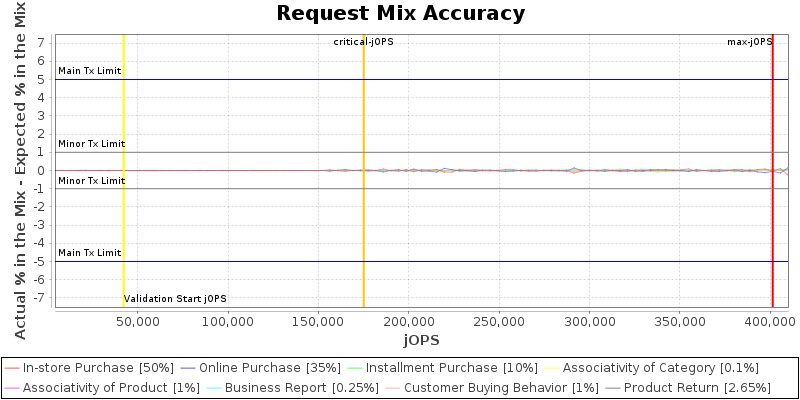

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	150	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180
specjbb.comm.connect.selector.runner.count	0	10	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	150	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180
specjbb.comm.connect.worker.pool.min	1	16	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	900000
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.warmup.step	0.1	0.25
specjbb.customerDriver.threads	64	{probe=120, saturate=180, service=80}
specjbb.forkjoin.workers	192	{Tier1=510, Tier2=15, Tier3=70}
specjbb.group.count	1	12
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	192	10
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 422519 IR

High-bound (settled) is 418185 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Quanta Cloud Technology, QuantaGrid S44NL-1U	401393 SPECjbb2015-MultiJVM max-jOPS 175081 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Quanta Computer Inc.	Test Sponsor: Quanta Computer Inc.	Test location: Taoyuan, TW, R.O.C	Test date: Aug 12, 2023
SPEC license #: 9050	Hardware Availability: Aug-2023	Software Availability: Apr-2023	Publication: Thu Aug 24 13:28:06 EDT 2023
