SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR860 V3 782089 SPECjbb2015-MultiJVM max-jOPS
394775 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Jul 26, 2023
SPEC license #: 9017 Hardware Availability: Jun-2023 Software Availability: Jul-2023 Publication: Thu Aug 10 15:32:25 EDT 2023
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 16)

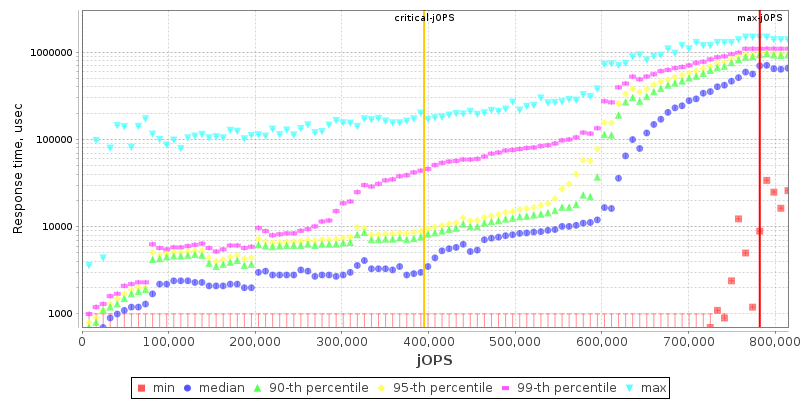

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores240
Total Threads480
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR860 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableJun-2023
ModelThinkSystem SR860 V3
Form Factor4U
CPU NameIntel Xeon 8490H
CPU Characteristics60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System240
Cores Per Chip60
Threads Per System480
Threads Per Core2
VersionRSE105E
CPU Frequency (MHz)1900
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache2 MB I+D on chip per core
Tertiary Cache112.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 800 GB NVME SSD
File SystemNTFS
Memory Amount (GB)2048
# and size of DIMM(s)32 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)2 x 2400W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.4645)
AvailableJul-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.8
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.8
AvailableJul-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • C-state set to Legacy
  • UPI Link Disable set to Disabled 1 Link
  • SNC set to SNC4
  • LLC Prefetch set to Disabled
  • DCU Streamer Prefetcher set to Disabled
  • Adjacent Cache Prefetch set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseParallelGC -XX:ParallelGCThreads=30 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InlineSmallCode=11k -XX:+UseNUMA -XX:UseAVX=0
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
  • start /b /NODE 8
  • start /b /NODE 9
  • start /b /NODE 10
  • start /b /NODE 11
  • start /b /NODE 12
  • start /b /NODE 13
  • start /b /NODE 14
  • start /b /NODE 15
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Affinitize each TxInjector JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
  • start /b /NODE 8
  • start /b /NODE 9
  • start /b /NODE 10
  • start /b /NODE 11
  • start /b /NODE 12
  • start /b /NODE 13
  • start /b /NODE 14
  • start /b /NODE 15
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 773942 782089 790236 798382 806529
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 264769 321797 403264 492879 566199 394775
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 16294 / 24440 8147 / 16294 - / 8147 - / 8147 - / 8147 - / 8147
1000us 195522 / 89614 40734 / 48881 16294 / 24440 16294 / 24440 8147 / 16294 - / 8147
5000us 562126 / 553980 407338 / 415485 195522 / 203669 195522 / 81468 73321 / 81468 24440 / 16294
10000us 619154 / 627301 545833 / 553980 456219 / 439925 407338 / 415485 260696 / 268843 24440 / 16294
25000us 651741 / 659888 611007 / 619154 586567 / 594713 545833 / 553980 317724 / 325870 24440 / 16294
50000us 668034 / 676181 619154 / 627301 594713 / 602860 570273 / 578420 399191 / 407338 24440 / 16294
75000us 676181 / 684328 627301 / 635447 594713 / 602860 586567 / 594713 488806 / 496952 24440 / 16294
100000us 692475 / 700621 643594 / 651741 594713 / 602860 594713 / 602860 562126 / 570273 114055 / 40734
200000us 741355 / 733208 668034 / 676181 619154 / 627301 611007 / 619154 594713 / 602860 456219 / 391044
500000us 782089 / - 749502 / 757649 692475 / 700621 676181 / 684328 643594 / 635447 594713 / 602860
1000000us 782089 / - 782089 / - 782089 / - 782089 / - 757649 / 765795 684328 / 676181

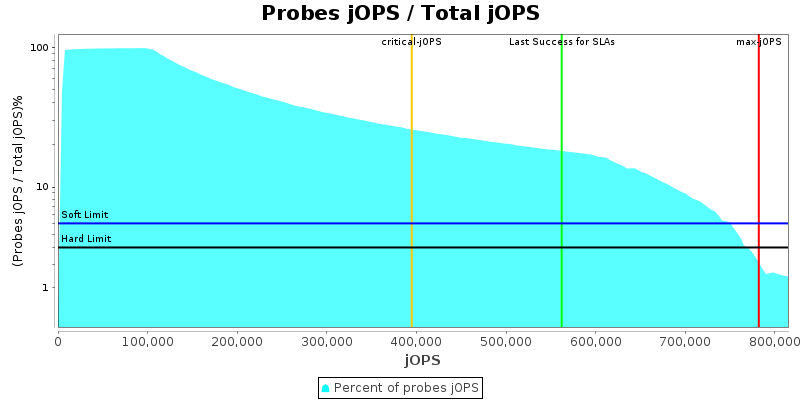

Number of probes
Probes jOPS / Total jOPS

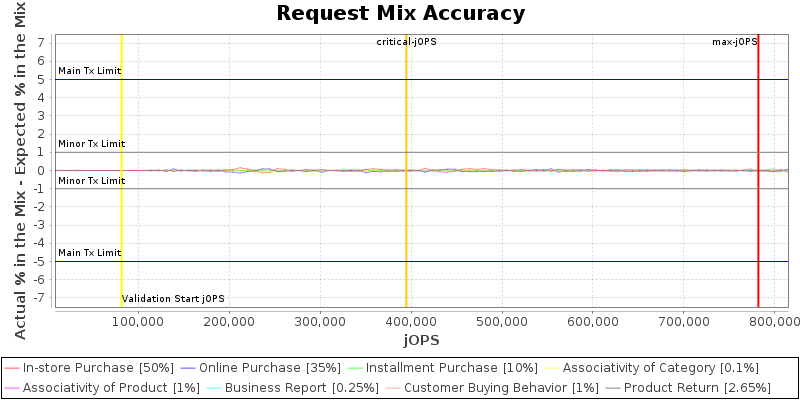

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

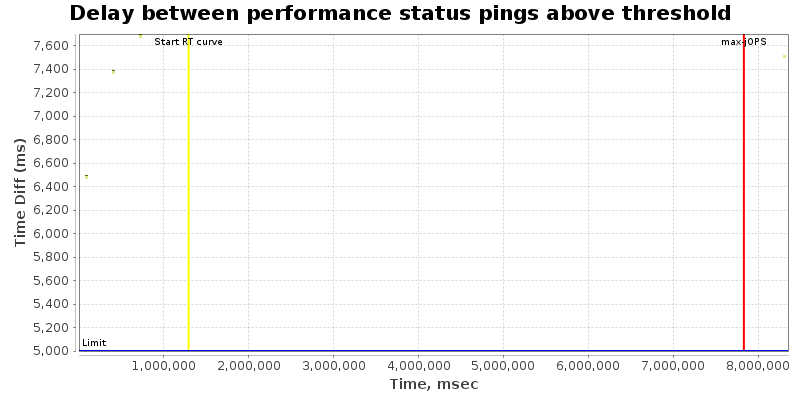

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

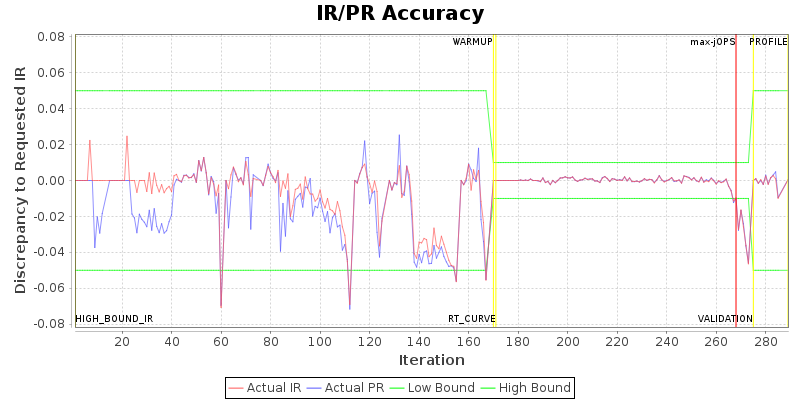

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 192 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 40
specjbb.forkjoin.workers 60 {Tier1=180, Tier2=1, Tier3=16}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 60 10
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 814676 IR
High-bound (settled) is 809745 IR
