Dell Inc. PowerEdge R7615 434495 SPECjbb2015-MultiJVM max-jOPS
180797 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: May 30,2023
SPEC license #: 6573 Hardware Availability: Jul-2023 Software Availability: Apr-2023 Publication: Thu Jun 15 12:31:48 EDT 2023
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores128
Total Threads256
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R7615
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableJul-2023
ModelPowerEdge R7615
Form Factor2U Rack
CPU NameAMD EPYC 9754
CPU Characteristics128 core, 2.25 GHz, 256 MB L3 Cache (Max. Boost Clock up to 3.10 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System128
Cores Per Chip128
Threads Per System256
Threads Per Core2
Version1.4.1
CPU Frequency (MHz)2250
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Ent NVMe U.2 6.4TB
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12 populated)
# and type of Network Interface Cards (NICs)1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)1 x 1400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • NUMA Nodes Per Socket : 4
  • L3 cache as NUMA Domain : Enabled
  • System Profile : Custom
  • Determinism Slider : Power Determinism
  • Algorithm Performance Boost Disable (ApbDis) : Enabled
  • ApbDis Fixed Socket P-State : P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 810000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning Used numactl to affinitize each Backend to 8 Core / 16 Threads
  • Group1: numactl --physcpubind=0-7,128-135 --localalloc
  • Group2: numactl --physcpubind=8-15,136-143 --localalloc
  • Group3: numactl --physcpubind=16-23,144-151 --localalloc
  • Group4: numactl --physcpubind=24-31,152-159 --localalloc
  • Group5: numactl --physcpubind=32-39,160-167 --localalloc
  • Group6: numactl --physcpubind=40-47,168-175 --localalloc
  • Group7: numactl --physcpubind=48-55,176-183 --localalloc
  • Group8: numactl --physcpubind=56-63,184-191 --localalloc
  • Group9: numactl --physcpubind=64-71,192-199 --localalloc
  • Group10: numactl --physcpubind=72-79,200-207 --localalloc
  • Group11: numactl --physcpubind=80-87,208-215 --localalloc
  • Group12: numactl --physcpubind=88-95,216-223 --localalloc
  • Group13: numactl --physcpubind=96-103,224-231 --localalloc
  • Group14: numactl --physcpubind=104-111,232-239 --localalloc
  • Group15: numactl --physcpubind=112-119,240-247 --localalloc
  • Group16: numactl --physcpubind=120-127,248-255 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads
  • Group1: numactl --physcpubind=0-7,128-135 --localalloc
  • Group2: numactl --physcpubind=8-15,136-143 --localalloc
  • Group3: numactl --physcpubind=16-23,144-151 --localalloc
  • Group4: numactl --physcpubind=24-31,152-159 --localalloc
  • Group5: numactl --physcpubind=32-39,160-167 --localalloc
  • Group6: numactl --physcpubind=40-47,168-175 --localalloc
  • Group7: numactl --physcpubind=48-55,176-183 --localalloc
  • Group8: numactl --physcpubind=56-63,184-191 --localalloc
  • Group9: numactl --physcpubind=64-71,192-199 --localalloc
  • Group10: numactl --physcpubind=72-79,200-207 --localalloc
  • Group11: numactl --physcpubind=80-87,208-215 --localalloc
  • Group12: numactl --physcpubind=88-95,216-223 --localalloc
  • Group13: numactl --physcpubind=96-103,224-231 --localalloc
  • Group14: numactl --physcpubind=104-111,232-239 --localalloc
  • Group15: numactl --physcpubind=112-119,240-247 --localalloc
  • Group16: numactl --physcpubind=120-127,248-255 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 425348 429921 434495 439068 443642
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 120439 152073 193922 222278 244689 180797
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4574 / 9147 4574 / 9147 - / 4574 - / 4574 - / 4574 - / 4574
1000us 13721 / 18295 9147 / 13721 4574 / 9147 4574 / 9147 4574 / 9147 - / 4574
5000us 278991 / 283565 118914 / 123488 73178 / 77752 64031 / 68604 50310 / 54884 - / 4574
10000us 292712 / 297286 237829 / 242402 164651 / 169224 150930 / 155503 123488 / 114341 22868 / 4574
25000us 301860 / 306433 283565 / 288139 242402 / 246976 219534 / 224108 155503 / 141783 22868 / 4574
50000us 306433 / 311007 292712 / 297286 269844 / 274418 256123 / 251550 201240 / 182945 22868 / 4574
75000us 311007 / 315580 301860 / 306433 274418 / 278991 260697 / 265271 233255 / 214961 22868 / 4574
100000us 315580 / 320154 301860 / 306433 283565 / 288139 274418 / 278991 246976 / 242402 22868 / 4574
200000us 329301 / 333875 315580 / 320154 301860 / 306433 292712 / 297286 278991 / 283565 150930 / 18295
500000us 434495 / 429921 356743 / 361317 338449 / 343022 329301 / 333875 315580 / 320154 269844 / 82325
1000000us 434495 / - 434495 / - 407053 / 411627 397906 / 402479 375038 / 379611 301860 / 288139

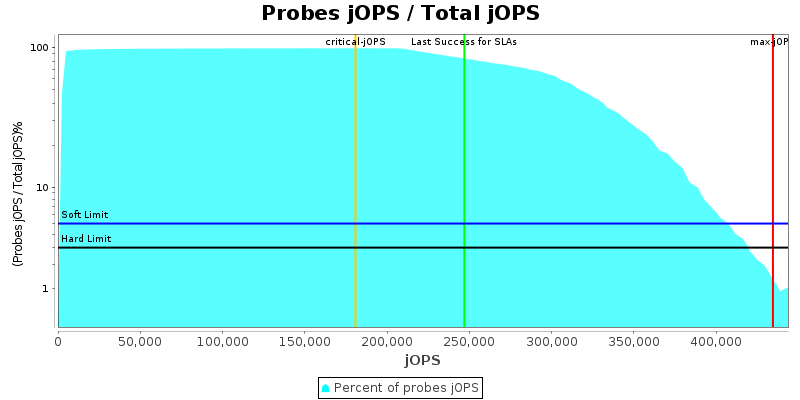

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

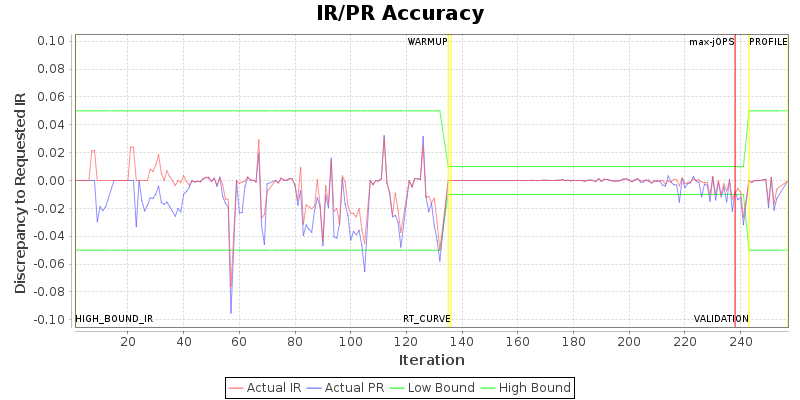

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 512 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 512 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.worker.pool.min 1 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=130, saturate=300, service=160}
specjbb.forkjoin.workers 256 {Tier1=880, Tier2=45, Tier3=180}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 256 512
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 457363 IR
High-bound (settled) is 442743 IR
