SPECjbb2015 Report for jbb2015-20230531-01109 : 841548 max-jOPS ; 330059 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R7625
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Jul-2023
Model	PowerEdge R7625
Form Factor	2U Rack
CPU Name	AMD EPYC 9754
CPU Characteristics	128 core, 2.25 GHz, 256 MB L3 Cache (Max. Boost Clock up to 3.10 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	256
Cores Per Chip	128
Threads Per System	512
Threads Per Core	2
Version	1.4.0
CPU Frequency (MHz)	2250
Primary Cache	32 KB (I) + 32 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x Dell Ent NVMe U.2 6.4TB
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12, B1-12 populated)
# and type of Network Interface Cards (NICs)	1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)	1 x 2400
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 20.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 20.0.1
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Dell Inc. PowerEdge R7625
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Jul-2023
Model	PowerEdge R7625
Form Factor	2U Rack
CPU Name	AMD EPYC 9754
CPU Characteristics	128 core, 2.25 GHz, 256 MB L3 Cache (Max. Boost Clock up to 3.10 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	256
Cores Per Chip	128
Threads Per System	512
Threads Per Core	2
Version	1.4.0
CPU Frequency (MHz)	2250
Primary Cache	32 KB (I) + 32 KB (D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x Dell Ent NVMe U.2 6.4TB
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12, B1-12 populated)
# and type of Network Interface Cards (NICs)	1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)	1 x 2400
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 20.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 20.0.1
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Logical Processor : Enabled L1 Stream HW Prefetcher : Disabled L2 Stream HW Prefetcher : Disabled MADT Core Enumeration : Linear NUMA Nodes Per Socket : 4 L3 cache as NUMA Domain : Enabled System Profile : Custom Determinism Slider : Power Determinism Algorithm Performance Boost Disable (ApbDis) : Enabled ApbDis Fixed Socket P-State : P0
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(32)
OS Image Description	os_1
Tuning	echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 20000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 810000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms32736M -Xmx32736M -Xmn30736M -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,256-263 --localalloc Group2: --physcpubind=8-15,264-271 --localalloc Group3: --physcpubind=64-71,320-327 --localalloc Group4: --physcpubind=72-79,328-335 --localalloc Group5: --physcpubind=32-39,288-295 --localalloc Group6: --physcpubind=40-47,296-303 --localalloc Group7: --physcpubind=96-103,352-359 --localalloc Group8: --physcpubind=104-111,360-367 --localalloc Group9: --physcpubind=48-55,304-311 --localalloc Group10: --physcpubind=56-63,312-319 --localalloc Group11: --physcpubind= 112-119,368-375 --localalloc Group12: --physcpubind= 120-127,376-383 --localalloc Group13: --physcpubind=16-23,272-279 --localalloc Group14: --physcpubind=24-31,280-287 --localalloc Group15: --physcpubind=80-87,336-343 --localalloc Group16: --physcpubind=88-95,344-351 --localalloc Group17: --physcpubind=128-135,384-391 --localalloc Group18: --physcpubind=136-143,392-399 --localalloc Group19: --physcpubind=192-199,448-455 --localalloc Group20: --physcpubind=200-207,456-463 --localalloc Group21: --physcpubind=160-167,416-423 --localalloc Group22: --physcpubind=168-175,424-431 --localalloc Group23: --physcpubind=224-231,480-487 --localalloc Group24: --physcpubind=232-239,488-495 --localalloc Group25: --physcpubind=176-183,432-439 --localalloc Group26: --physcpubind=184-191,440-447 --localalloc Group27: --physcpubind=240-247,496-503 --localalloc Group28: --physcpubind=248-255,504-511 --localalloc Group29: --physcpubind=144-151,400-407 --localalloc Group30: --physcpubind=152-159,408-415 --localalloc Group31: --physcpubind=208-215,464-471 --localalloc Group32: --physcpubind=216-223,472-479 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	Logical Processor : Enabled L1 Stream HW Prefetcher : Disabled L2 Stream HW Prefetcher : Disabled MADT Core Enumeration : Linear NUMA Nodes Per Socket : 4 L3 cache as NUMA Domain : Enabled System Profile : Custom Determinism Slider : Power Determinism Algorithm Performance Boost Disable (ApbDis) : Enabled ApbDis Fixed Socket P-State : P0
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(32)
OS Image Description	os_2
Tuning	echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 20000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 810000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,256-263 --localalloc Group2: --physcpubind=8-15,264-271 --localalloc Group3: --physcpubind=64-71,320-327 --localalloc Group4: --physcpubind=72-79,328-335 --localalloc Group5: --physcpubind=32-39,288-295 --localalloc Group6: --physcpubind=40-47,296-303 --localalloc Group7: --physcpubind=96-103,352-359 --localalloc Group8: --physcpubind=104-111,360-367 --localalloc Group9: --physcpubind=48-55,304-311 --localalloc Group10: --physcpubind=56-63,312-319 --localalloc Group11: --physcpubind= 112-119,368-375 --localalloc Group12: --physcpubind= 120-127,376-383 --localalloc Group13: --physcpubind=16-23,272-279 --localalloc Group14: --physcpubind=24-31,280-287 --localalloc Group15: --physcpubind=80-87,336-343 --localalloc Group16: --physcpubind=88-95,344-351 --localalloc Group17: --physcpubind=128-135,384-391 --localalloc Group18: --physcpubind=136-143,392-399 --localalloc Group19: --physcpubind=192-199,448-455 --localalloc Group20: --physcpubind=200-207,456-463 --localalloc Group21: --physcpubind=160-167,416-423 --localalloc Group22: --physcpubind=168-175,424-431 --localalloc Group23: --physcpubind=224-231,480-487 --localalloc Group24: --physcpubind=232-239,488-495 --localalloc Group25: --physcpubind=176-183,432-439 --localalloc Group26: --physcpubind=184-191,440-447 --localalloc Group27: --physcpubind=240-247,496-503 --localalloc Group28: --physcpubind=248-255,504-511 --localalloc Group29: --physcpubind=144-151,400-407 --localalloc Group30: --physcpubind=152-159,408-415 --localalloc Group31: --physcpubind=208-215,464-471 --localalloc Group32: --physcpubind=216-223,472-479 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	823253	832401	841548	850695	859842

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	224107	297286	350645	395618	423823	330059

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	9147 / 18295	- / 9147	- / 9147	- / 9147	- / 9147	- / 9147
1000us	27442 / 36589	18295 / 27442	9147 / 18295	9147 / 18295	- / 9147	- / 9147
5000us	484805 / 493952	201240 / 210387	128062 / 137209	118914 / 128062	82325 / 91473	18295 / 27442
10000us	512247 / 521394	393332 / 402479	283565 / 292712	256123 / 265271	219534 / 228681	36589 / 27442
25000us	530541 / 539688	493952 / 503099	429921 / 439068	393332 / 402479	301860 / 292712	36589 / 27442
50000us	539688 / 548836	512247 / 521394	475658 / 484805	448216 / 457363	356743 / 338449	36589 / 27442
75000us	548836 / 557983	530541 / 539688	484805 / 493952	475658 / 484805	402479 / 375038	36589 / 27442
100000us	557983 / 567130	530541 / 539688	493952 / 503099	484805 / 493952	429921 / 411627	36589 / 27442
200000us	594572 / 603719	557983 / 567130	530541 / 539688	512247 / 521394	484805 / 493952	274418 / 27442
500000us	804959 / 814106	658603 / 667750	612866 / 622014	594572 / 603719	576277 / 585425	457363 / 173798
1000000us	841548 / -	841548 / -	804959 / 814106	777517 / 786664	713486 / 722634	539688 / 521394

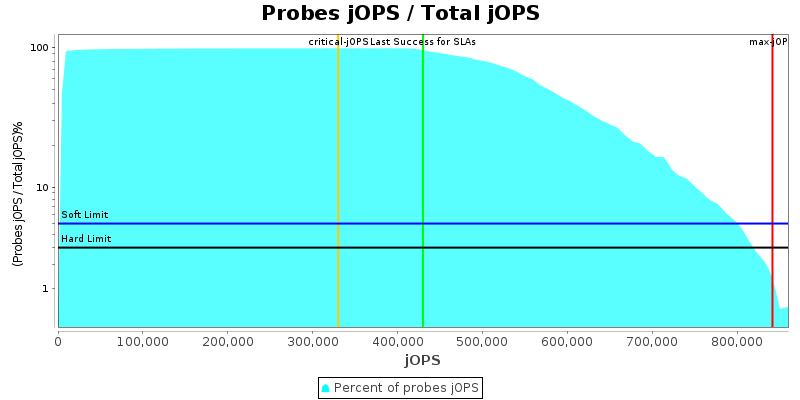

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

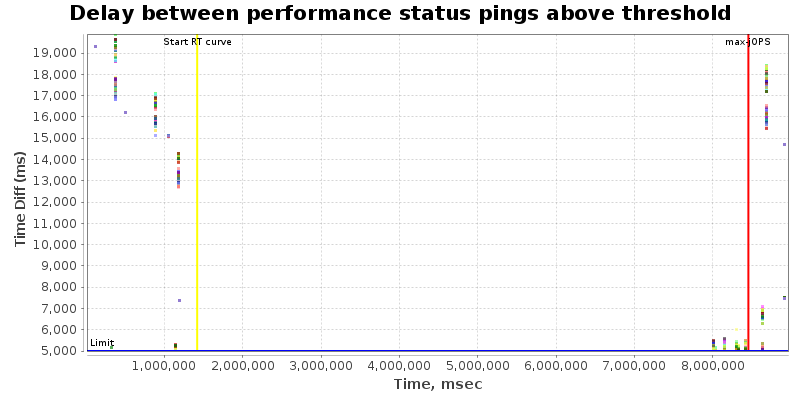

Delay between performance status pings during RT Curve (Response-Throughput Curve)

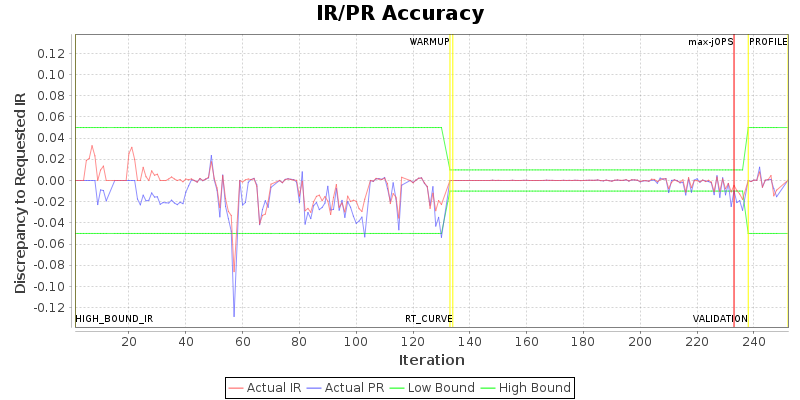

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group25.Backend.beJVM	Group25.TxInjector.txiJVM1	Group26.Backend.beJVM	Group26.TxInjector.txiJVM1	Group27.Backend.beJVM	Group27.TxInjector.txiJVM1	Group28.Backend.beJVM	Group28.TxInjector.txiJVM1	Group29.Backend.beJVM	Group29.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group30.Backend.beJVM	Group30.TxInjector.txiJVM1	Group31.Backend.beJVM	Group31.TxInjector.txiJVM1	Group32.Backend.beJVM	Group32.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	300	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	10	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	300	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	32	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.controller.host	localhost	127.0.0.1	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost	localhost
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=130, saturate=300, service=160}
specjbb.forkjoin.workers	512	{Tier1=530, Tier2=45, Tier3=160}
specjbb.group.count	1	32
specjbb.mapreducer.pool.size	512	10
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 914726 IR

High-bound (settled) is 848000 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Dell Inc. PowerEdge R7625	841548 SPECjbb2015-Distributed max-jOPS 330059 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: May 18,2023
SPEC license #: 6573	Hardware Availability: Jul-2023	Software Availability: Apr-2023	Publication: Thu Jun 15 12:31:48 EDT 2023
