SPECjbb2015 Report for jbb2015-20230518-01087 : 439147 max-jOPS ; 215316 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro A+ AS-1115CS-TNR
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Jun-2023
Model	H13SSW
Form Factor	1U
CPU Name	AMD EPYC 9684X
CPU Characteristics	96 core, 2.55GHz, 1152MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	96
Cores Per Chip	96
Threads Per System	192
Threads Per Core	2
Version	1.4 (05/12/2023)
CPU Frequency (MHz)	2550
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	1MB (I+D) per core
Tertiary Cache	1152MB (I+D) on chip per chip
Other Cache	None
Disk	2 x 3.2 TB NVMe PCIe Gen4.0
File System	btrfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64GB
Memory Details	64GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 1 GbE NIC
Power Supply Quantity and Rating (W)	2 x 860w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.24.63-default
Available	May-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.7
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.7
Available	Apr-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS4 Determinism Control = Manual Determinism Slider = Power L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	None
Notes	Used numactl to interleave memory on all CPUs numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms30g -Xmx30g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,96-103 --localalloc Group2: --physcpubind=8-15,104-111 --localalloc Group3: --physcpubind=16-23,112-119 --localalloc Group4: --physcpubind=24-31,120-127 --localalloc Group5: --physcpubind=32-39,128-135 --localalloc Group6: --physcpubind=40-47,136-143 --localalloc Group7: --physcpubind=48-55,144-151 --localalloc Group8: --physcpubind=56-63,152-159 --localalloc Group9: --physcpubind=64-71,160-167 --localalloc Group10: --physcpubind=72-79,168-175 --localalloc Group11: --physcpubind=80-87,176-183 --localalloc Group12: --physcpubind=88-95,184-191 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	None
Notes	Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,96-103 --localalloc Group2: --physcpubind=8-15,104-111 --localalloc Group3: --physcpubind=16-23,112-119 --localalloc Group4: --physcpubind=24-31,120-127 --localalloc Group5: --physcpubind=32-39,128-135 --localalloc Group6: --physcpubind=40-47,136-143 --localalloc Group7: --physcpubind=48-55,144-151 --localalloc Group8: --physcpubind=56-63,152-159 --localalloc Group9: --physcpubind=64-71,160-167 --localalloc Group10: --physcpubind=72-79,168-175 --localalloc Group11: --physcpubind=80-87,176-183 --localalloc Group12: --physcpubind=88-95,184-191 --localalloc

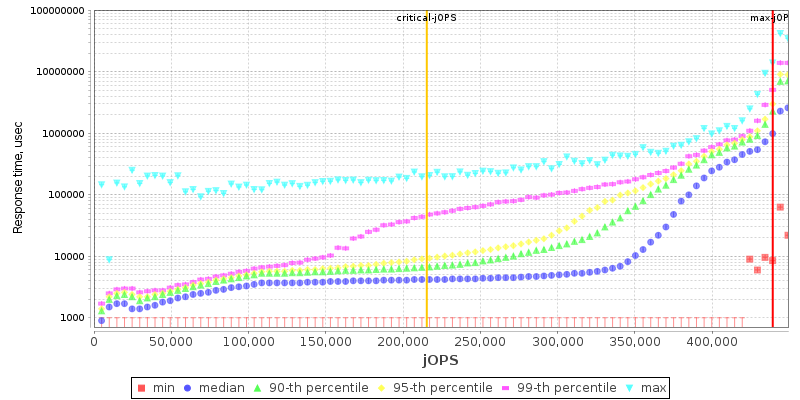

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	429279	434213	439147	444082	449016

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	150494	180100	224508	259047	293587	215316

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 4934	- / 4934	- / 4934	- / 4934	- / 4934	- / 4934
1000us	78948 / 14803	4934 / 9868	- / 4934	- / 4934	- / 4934	- / 4934
5000us	370068 / 375002	300989 / 305923	103619 / 108553	98685 / 103619	83882 / 88816	- / 4934
10000us	375002 / 379936	345397 / 350331	266449 / 271383	222041 / 226975	148027 / 152961	9868 / 4934
25000us	389805 / 394739	365134 / 370068	325660 / 330594	296054 / 300989	177633 / 182567	9868 / 4934
50000us	389805 / 394739	375002 / 379936	340463 / 345397	315791 / 320726	222041 / 226975	9868 / 4934
75000us	394739 / 399673	375002 / 379936	350331 / 355265	325660 / 330594	256580 / 261515	9868 / 4934
100000us	399673 / 404608	384871 / 389805	355265 / 360200	340463 / 345397	291120 / 296054	69079 / 4934
200000us	414476 / 419410	394739 / 399673	375002 / 379936	370068 / 375002	355265 / 360200	231909 / 24671
500000us	439147 / -	419410 / 424345	404608 / 409542	394739 / 399673	389805 / 394739	365134 / 355265
1000000us	439147 / -	439147 / -	429279 / 434213	424345 / 429279	419410 / 424345	399673 / 394739

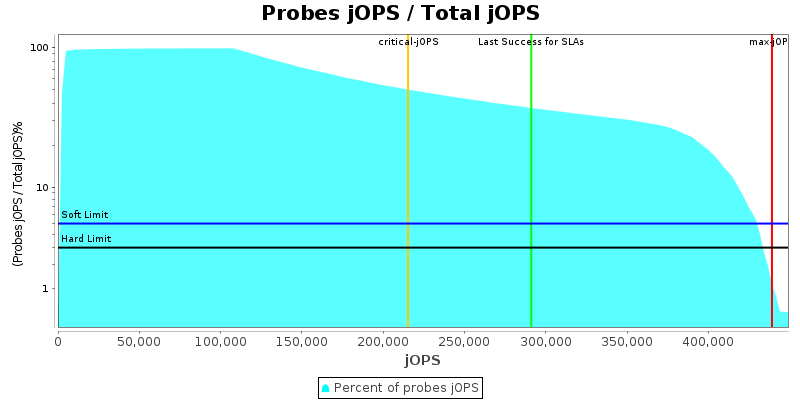

Number of probes

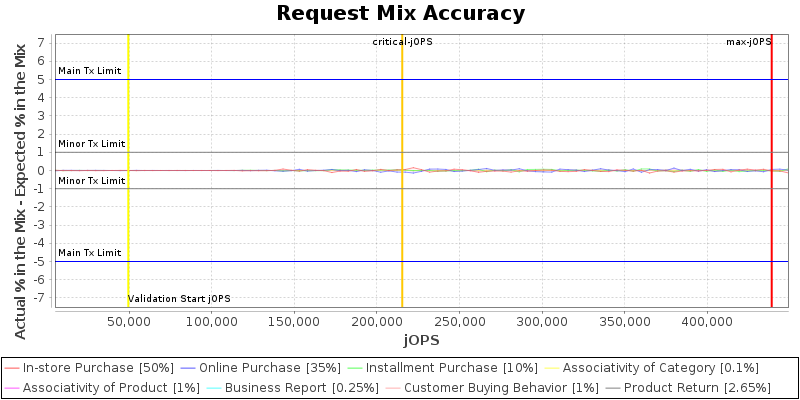

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150
specjbb.comm.connect.selector.runner.count	0	2	4		4		4		4		4		4		4		4		4		4		4		4
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	256	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150
specjbb.comm.connect.worker.pool.min	1	1	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=90, saturate=140, service=90}
specjbb.forkjoin.workers	192	{Tier1=147, Tier2=6, Tier3=17}
specjbb.group.count	1	12
specjbb.mapreducer.pool.size	192	6
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 493424 IR

High-bound (settled) is 457392 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Supermicro CloudDC A+ Server AS -1115CS-TNR	439147 SPECjbb2015-MultiJVM max-jOPS 215316 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: May 15, 2023
SPEC license #: 001176	Hardware Availability: Jun-2023	Software Availability: Apr-2023	Publication: Tue Jun 13 11:34:16 EDT 2023
