SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Supermicro CloudDC A+ Server AS -2015CS-TNR 387357 SPECjbb2015-Composite max-jOPS
361137 SPECjbb2015-Composite critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: May 12, 2023
SPEC license #: 001176 Hardware Availability: Jun-2023 Software Availability: Apr-2023 Publication: Tue Jun 13 11:34:16 EDT 2023
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores128
Total Threads256
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCloudDC A+ Server AS-2015CS-TNR
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableJun-2023
ModelH13SSW
Form Factor2U
CPU NameAMD EPYC 9754
CPU Characteristics128 Core, 2.25 GHz, 256MB L3 Cache (Max. Boost Clock up to 3.1GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System128
Cores Per Chip128
Threads Per System256
Threads Per Core256
Version1.4 (04/17/2023)
CPU Frequency (MHz)2250
Primary Cache32 KB(I) + 32 KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 256GB NVMe PCIe Gen3.0
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1200W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JDK v17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS2
  • Determinism Control = Manual
  • Determinism Slider = Power
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms710g -Xmx710g -Xmn700g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=256 -XX:SurvivorRatio=164 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseTransparentHugePages -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning None
Notes

numactl --cpunodebind=0-1 --interleave=0-1
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 377550 382453 387357 392260 397163
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 306453 365292 380001 380001 380001 361137
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 254969 / 259872 14710 / 19613 9806 / 14710 4903 / 9806 - / 4903 - / 4903
1000us 372647 / 377550 284388 / 289292 107871 / 112775 83355 / 88258 34323 / 39226 - / 4903
5000us 387357 / - 377550 / 382453 338324 / 343227 304001 / 308905 220646 / 225549 34323 / 14710
10000us 387357 / - 382453 / 387357 372647 / 377550 362840 / 367744 304001 / 308905 44129 / 14710
25000us 387357 / - 387357 / - 377550 / 382453 377550 / 382453 362840 / 367744 132388 / 14710
50000us 387357 / - 387357 / - 387357 / - 382453 / 387357 377550 / 382453 176517 / 14710
75000us 387357 / - 387357 / - 387357 / - 387357 / - 377550 / 382453 274582 / 39226
100000us 387357 / - 387357 / - 387357 / - 387357 / - 377550 / 382453 274582 / 122581
200000us 387357 / - 387357 / - 387357 / - 387357 / - 387357 / - 333421 / 338324
500000us 387357 / - 387357 / - 387357 / - 387357 / - 387357 / - 362840 / 367744
1000000us 387357 / - 387357 / - 387357 / - 387357 / - 387357 / - 382453 / 387357

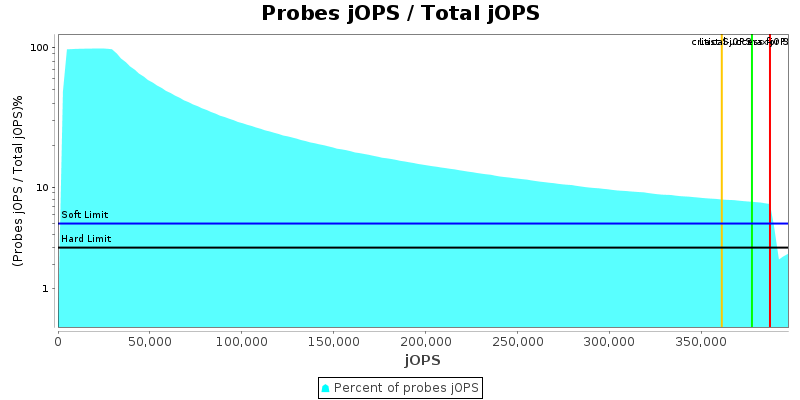

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

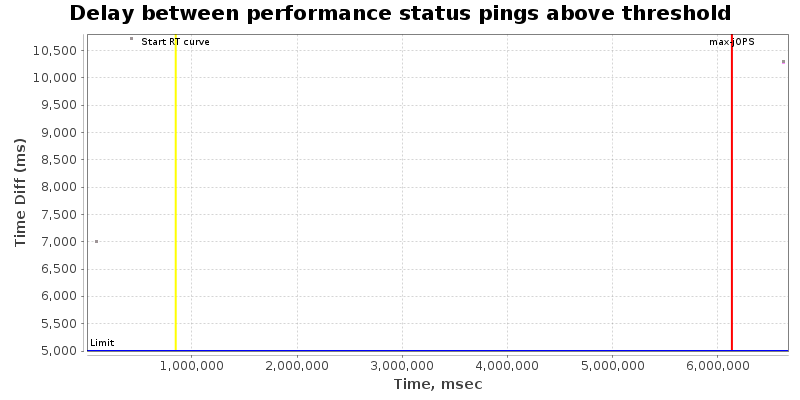

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 {probe=72, saturate=72}
specjbb.forkjoin.workers 256 {Tier1=80, Tier2=1, Tier3=12}
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 50000
specjbb.heartbeat.threshold 100000 500000
specjbb.mapreducer.pool.size 256 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 490325 IR
High-bound (settled) is 411147 IR
