SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Dell Inc. PowerEdge R7625 868990 SPECjbb2015-MultiJVM max-jOPS
376331 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: May 15,2023
SPEC license #: 6573 Hardware Availability: Jul-2023 Software Availability: Apr-2023 Publication: Tue Jun 13 11:34:16 EDT 2023
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 32)

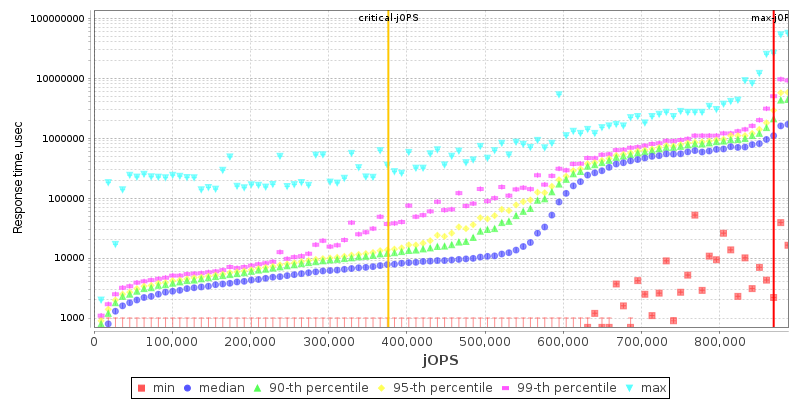

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores256
Total Threads512
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameDell Inc. PowerEdge R7625
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableJul-2023
ModelPowerEdge R7625
Form Factor2U Rack
CPU NameAMD EPYC 9754
CPU Characteristics128 core, 2.25 GHz, 256 MB L3 Cache (Max. Boost Clock up to 3.10 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System256
Cores Per Chip128
Threads Per System512
Threads Per Core2
Version1.4.0
CPU Frequency (MHz)2250
Primary Cache32 KB (I) + 32 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Ent NVMe U.2 6.4TB
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB RDIMM 2Rx4 PC5-4800B-R (slots A1-12, B1-12 populated)
# and type of Network Interface Cards (NICs)1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)1 x 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 20.0.1
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 20.0.1
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • NUMA Nodes Per Socket : 4
  • L3 cache as NUMA Domain : Enabled
  • System Profile : Custom
  • Determinism Slider : Power Determinism
  • Algorithm Performance Boost Disable (ApbDis) : Enabled
  • ApbDis Fixed Socket P-State : P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(32), jvm_TxInjector_1(32)
OS Image Description os_1
Tuning
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 20000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 810000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads
    • Group1: --physcpubind=0-7,256-263 --localalloc
    • Group2: --physcpubind=8-15,264-271 --localalloc
    • Group3: --physcpubind=64-71,320-327 --localalloc
    • Group4: --physcpubind=72-79,328-335 --localalloc
    • Group5: --physcpubind=32-39,288-295 --localalloc
    • Group6: --physcpubind=40-47,296-303 --localalloc
    • Group7: --physcpubind=96-103,352-359 --localalloc
    • Group8: --physcpubind=104-111,360-367 --localalloc
    • Group9: --physcpubind=48-55,304-311 --localalloc
    • Group10: --physcpubind=56-63,312-319 --localalloc
    • Group11: --physcpubind= 112-119,368-375 --localalloc
    • Group12: --physcpubind= 120-127,376-383 --localalloc
    • Group13: --physcpubind=16-23,272-279 --localalloc
    • Group14: --physcpubind=24-31,280-287 --localalloc
    • Group15: --physcpubind=80-87,336-343 --localalloc
    • Group16: --physcpubind=88-95,344-351 --localalloc
    • Group17: --physcpubind=128-135,384-391 --localalloc
    • Group18: --physcpubind=136-143,392-399 --localalloc
    • Group19: --physcpubind=192-199,448-455 --localalloc
    • Group20: --physcpubind=200-207,456-463 --localalloc
    • Group21: --physcpubind=160-167,416-423 --localalloc
    • Group22: --physcpubind=168-175,424-431 --localalloc
    • Group23: --physcpubind=224-231,480-487 --localalloc
    • Group24: --physcpubind=232-239,488-495 --localalloc
    • Group25: --physcpubind=176-183,432-439 --localalloc
    • Group26: --physcpubind=184-191,440-447 --localalloc
    • Group27: --physcpubind=240-247,496-503 --localalloc
    • Group28: --physcpubind=248-255,504-511 --localalloc
    • Group29: --physcpubind=144-151,400-407 --localalloc
    • Group30: --physcpubind=152-159,408-415 --localalloc
    • Group31: --physcpubind=208-215,464-471 --localalloc
    • Group32: --physcpubind=216-223,472-479 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads
    • Group1: --physcpubind=0-7,256-263 --localalloc
    • Group2: --physcpubind=8-15,264-271 --localalloc
    • Group3: --physcpubind=64-71,320-327 --localalloc
    • Group4: --physcpubind=72-79,328-335 --localalloc
    • Group5: --physcpubind=32-39,288-295 --localalloc
    • Group6: --physcpubind=40-47,296-303 --localalloc
    • Group7: --physcpubind=96-103,352-359 --localalloc
    • Group8: --physcpubind=104-111,360-367 --localalloc
    • Group9: --physcpubind=48-55,304-311 --localalloc
    • Group10: --physcpubind=56-63,312-319 --localalloc
    • Group11: --physcpubind= 112-119,368-375 --localalloc
    • Group12: --physcpubind= 120-127,376-383 --localalloc
    • Group13: --physcpubind=16-23,272-279 --localalloc
    • Group14: --physcpubind=24-31,280-287 --localalloc
    • Group15: --physcpubind=80-87,336-343 --localalloc
    • Group16: --physcpubind=88-95,344-351 --localalloc
    • Group17: --physcpubind=128-135,384-391 --localalloc
    • Group18: --physcpubind=136-143,392-399 --localalloc
    • Group19: --physcpubind=192-199,448-455 --localalloc
    • Group20: --physcpubind=200-207,456-463 --localalloc
    • Group21: --physcpubind=160-167,416-423 --localalloc
    • Group22: --physcpubind=168-175,424-431 --localalloc
    • Group23: --physcpubind=224-231,480-487 --localalloc
    • Group24: --physcpubind=232-239,488-495 --localalloc
    • Group25: --physcpubind=176-183,432-439 --localalloc
    • Group26: --physcpubind=184-191,440-447 --localalloc
    • Group27: --physcpubind=240-247,496-503 --localalloc
    • Group28: --physcpubind=248-255,504-511 --localalloc
    • Group29: --physcpubind=144-151,400-407 --localalloc
    • Group30: --physcpubind=152-159,408-415 --localalloc
    • Group31: --physcpubind=208-215,464-471 --localalloc
    • Group32: --physcpubind=216-223,472-479 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 850695 859842 868990 878137 887284
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 242402 333875 407053 461022 497001 376331
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9147 / 18295 - / 9147 - / 9147 - / 9147 - / 9147 - / 9147
1000us 27442 / 36589 18295 / 27442 9147 / 18295 9147 / 18295 - / 9147 - / 9147
5000us 548836 / 557983 237829 / 246976 155503 / 164651 146356 / 155503 91473 / 100620 9147 / 18295
10000us 576277 / 585425 484805 / 493952 320154 / 329301 301860 / 311007 246976 / 237829 9147 / 18295
25000us 585425 / 594572 557983 / 567130 484805 / 493952 448216 / 457363 338449 / 329301 27442 / 18295
50000us 594572 / 603719 576277 / 585425 530541 / 539688 503099 / 512247 411627 / 402479 27442 / 18295
75000us 603719 / 612866 585425 / 594572 557983 / 567130 530541 / 539688 475658 / 439068 27442 / 18295
100000us 612866 / 622014 594572 / 603719 576277 / 585425 557983 / 567130 512247 / 466510 27442 / 18295
200000us 649455 / 658603 622014 / 631161 594572 / 603719 585425 / 594572 576277 / 567130 311007 / 45736
500000us 850695 / 859842 713486 / 722634 667750 / 676897 658603 / 667750 640308 / 649455 503099 / 283565
1000000us 868990 / - 859842 / 868990 832401 / 841548 804959 / 814106 759223 / 768370 585425 / 594572
Number of probes
Probes jOPS / Total jOPS

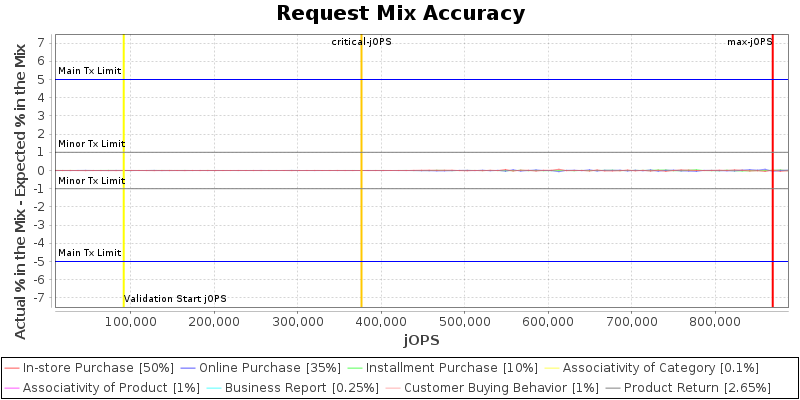

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group17.Backend.beJVM Group17.TxInjector.txiJVM1 Group18.Backend.beJVM Group18.TxInjector.txiJVM1 Group19.Backend.beJVM Group19.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group20.Backend.beJVM Group20.TxInjector.txiJVM1 Group21.Backend.beJVM Group21.TxInjector.txiJVM1 Group22.Backend.beJVM Group22.TxInjector.txiJVM1 Group23.Backend.beJVM Group23.TxInjector.txiJVM1 Group24.Backend.beJVM Group24.TxInjector.txiJVM1 Group25.Backend.beJVM Group25.TxInjector.txiJVM1 Group26.Backend.beJVM Group26.TxInjector.txiJVM1 Group27.Backend.beJVM Group27.TxInjector.txiJVM1 Group28.Backend.beJVM Group28.TxInjector.txiJVM1 Group29.Backend.beJVM Group29.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group30.Backend.beJVM Group30.TxInjector.txiJVM1 Group31.Backend.beJVM Group31.TxInjector.txiJVM1 Group32.Backend.beJVM Group32.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 300 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 300 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.worker.pool.min 1 32 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=130, saturate=300, service=160}
specjbb.forkjoin.workers 512 {Tier1=550, Tier2=45, Tier3=160}
specjbb.group.count 1 32
specjbb.mapreducer.pool.size 512 10
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 914726 IR
High-bound (settled) is 885485 IR
Copyright © 2015-2023 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
