SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR665 V3 883097 SPECjbb2015-MultiJVM max-jOPS
368325 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: May 10, 2023
SPEC license #: 9017 Hardware Availability: Aug-2023 Software Availability: Apr-2023 Publication: Tue Jun 13 11:34:16 EDT 2023
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 32)

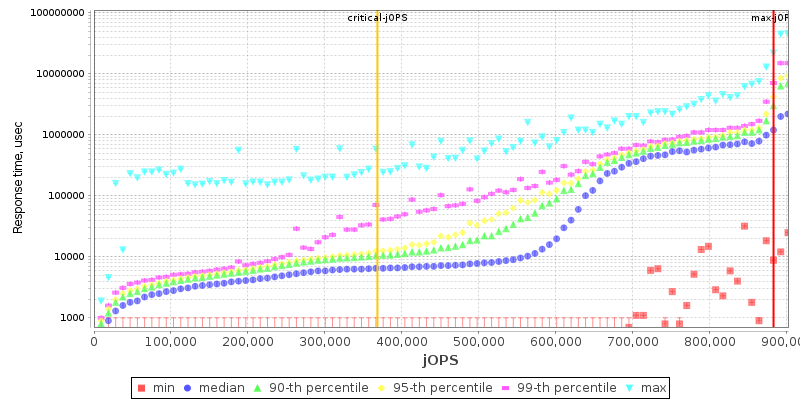

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores256
Total Threads512
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR665 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2023
ModelThinkSystem SR665 V3
Form Factor2U
CPU NameAMD EPYC 9754
CPU Characteristics128 core, 2.25GHz, 256MB L3 Cache (Max Boost Clock up to 3.10GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System256
Cores Per Chip128
Threads Per System512
Threads Per Core2
VersionKAE111I
CPU Frequency (MHz)2250
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemXFS
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.7
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS4
  • L1 Stream HW Prefetcher set to Disabled
  • L2 Stream HW Prefetcher set to Disabled
  • ACPI SRAT L3 Cache as NUMA Domain set to Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(32), jvm_TxInjector_1(32)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 64 > /proc/sys/kernel/sched_nr_migrate
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms28g -Xmx28g -Xmn25g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning Used numactl to affinitize one Backend JVM (1 Group) to one NUMA node
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=1 --localalloc
  • Group3: numactl --cpunodebind=2 --localalloc
  • Group4: numactl --cpunodebind=3 --localalloc
  • Group5: numactl --cpunodebind=4 --localalloc
  • Group6: numactl --cpunodebind=5 --localalloc
  • Group7: numactl --cpunodebind=6 --localalloc
  • Group8: numactl --cpunodebind=7 --localalloc
  • Group9: numactl --cpunodebind=8 --localalloc
  • Group10: numactl --cpunodebind=9 --localalloc
  • Group11: numactl --cpunodebind=10 --localalloc
  • Group12: numactl --cpunodebind=11 --localalloc
  • Group13: numactl --cpunodebind=12 --localalloc
  • Group14: numactl --cpunodebind=13 --localalloc
  • Group15: numactl --cpunodebind=14 --localalloc
  • Group16: numactl --cpunodebind=15 --localalloc
  • Group17: numactl --cpunodebind=16 --localalloc
  • Group18: numactl --cpunodebind=17 --localalloc
  • Group19: numactl --cpunodebind=18 --localalloc
  • Group20: numactl --cpunodebind=19 --localalloc
  • Group21: numactl --cpunodebind=20 --localalloc
  • Group22: numactl --cpunodebind=21 --localalloc
  • Group23: numactl --cpunodebind=22 --localalloc
  • Group24: numactl --cpunodebind=23 --localalloc
  • Group25: numactl --cpunodebind=24 --localalloc
  • Group26: numactl --cpunodebind=25 --localalloc
  • Group27: numactl --cpunodebind=26 --localalloc
  • Group28: numactl --cpunodebind=27 --localalloc
  • Group28: numactl --cpunodebind=27 --localalloc
  • Group29: numactl --cpunodebind=28 --localalloc
  • Group30: numactl --cpunodebind=29 --localalloc
  • Group31: numactl --cpunodebind=30 --localalloc
  • Group32: numactl --cpunodebind=31 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning Used numactl to affinitize one Backend JVM (1 Group) to one NUMA node
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=1 --localalloc
  • Group3: numactl --cpunodebind=2 --localalloc
  • Group4: numactl --cpunodebind=3 --localalloc
  • Group5: numactl --cpunodebind=4 --localalloc
  • Group6: numactl --cpunodebind=5 --localalloc
  • Group7: numactl --cpunodebind=6 --localalloc
  • Group8: numactl --cpunodebind=7 --localalloc
  • Group9: numactl --cpunodebind=8 --localalloc
  • Group10: numactl --cpunodebind=9 --localalloc
  • Group11: numactl --cpunodebind=10 --localalloc
  • Group12: numactl --cpunodebind=11 --localalloc
  • Group13: numactl --cpunodebind=12 --localalloc
  • Group14: numactl --cpunodebind=13 --localalloc
  • Group15: numactl --cpunodebind=14 --localalloc
  • Group16: numactl --cpunodebind=15 --localalloc
  • Group17: numactl --cpunodebind=16 --localalloc
  • Group18: numactl --cpunodebind=17 --localalloc
  • Group19: numactl --cpunodebind=18 --localalloc
  • Group20: numactl --cpunodebind=19 --localalloc
  • Group21: numactl --cpunodebind=20 --localalloc
  • Group22: numactl --cpunodebind=21 --localalloc
  • Group23: numactl --cpunodebind=22 --localalloc
  • Group24: numactl --cpunodebind=23 --localalloc
  • Group25: numactl --cpunodebind=24 --localalloc
  • Group26: numactl --cpunodebind=25 --localalloc
  • Group27: numactl --cpunodebind=26 --localalloc
  • Group28: numactl --cpunodebind=27 --localalloc
  • Group28: numactl --cpunodebind=27 --localalloc
  • Group29: numactl --cpunodebind=28 --localalloc
  • Group30: numactl --cpunodebind=29 --localalloc
  • Group31: numactl --cpunodebind=30 --localalloc
  • Group32: numactl --cpunodebind=31 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 864308 873702 883097 892492 901886
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 248958 302194 396454 462686 491205 368325
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9395 / 18789 9395 / 18789 - / 9395 - / 9395 - / 9395 - / 9395
1000us 28184 / 37579 18789 / 28184 9395 / 18789 9395 / 18789 9395 / 18789 - / 9395
5000us 601258 / 610652 244261 / 253656 159709 / 169104 140920 / 150314 93946 / 103341 18789 / 28184
10000us 620047 / 629442 554284 / 563679 347602 / 356997 300629 / 310023 244261 / 253656 18789 / 28184
25000us 638836 / 648231 601258 / 610652 516706 / 526100 479127 / 488522 310023 / 263050 37579 / 28184
50000us 648231 / 657625 620047 / 629442 563679 / 573074 516706 / 526100 403970 / 366391 37579 / 28184
75000us 648231 / 657625 629442 / 638836 582468 / 591863 544890 / 554284 479127 / 413365 37579 / 28184
100000us 657625 / 667020 629442 / 638836 601258 / 610652 573074 / 582468 507311 / 450943 37579 / 28184
200000us 685809 / 695204 657625 / 667020 629442 / 638836 629442 / 638836 601258 / 582468 291234 / 46973
500000us 864308 / 873702 742177 / 751572 695204 / 704599 685809 / 695204 667020 / 676415 497916 / 187893
1000000us 883097 / - 873702 / 883097 836124 / 845518 817335 / 826729 770361 / 779756 601258 / 563679

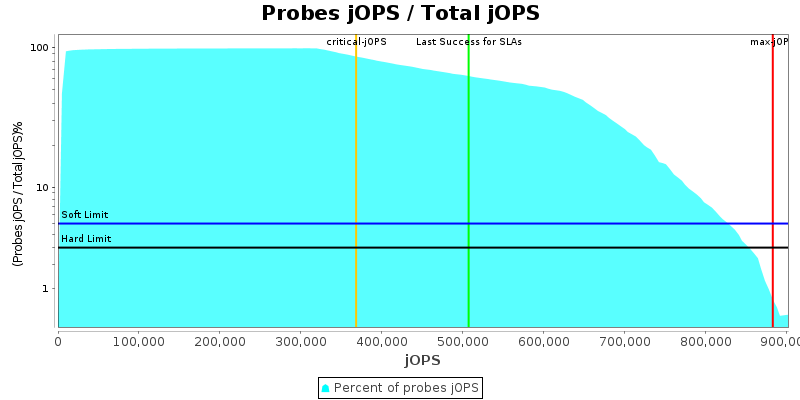

Number of probes
Probes jOPS / Total jOPS

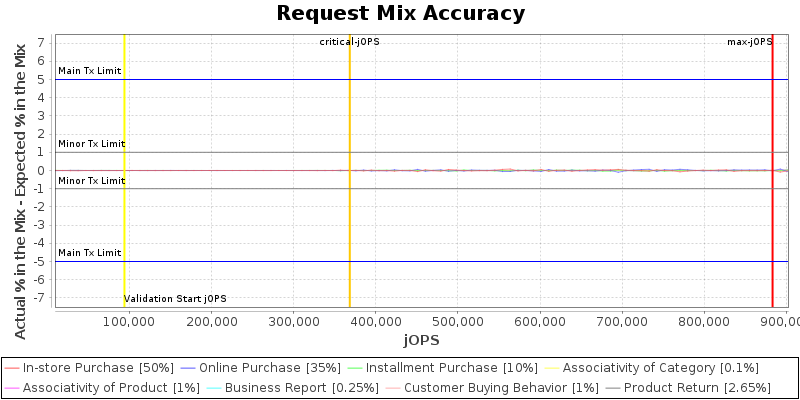

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

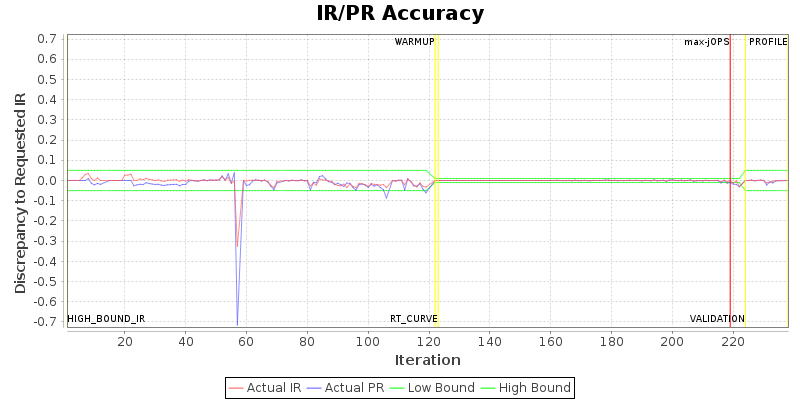

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group17.Backend.beJVM Group17.TxInjector.txiJVM1 Group18.Backend.beJVM Group18.TxInjector.txiJVM1 Group19.Backend.beJVM Group19.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group20.Backend.beJVM Group20.TxInjector.txiJVM1 Group21.Backend.beJVM Group21.TxInjector.txiJVM1 Group22.Backend.beJVM Group22.TxInjector.txiJVM1 Group23.Backend.beJVM Group23.TxInjector.txiJVM1 Group24.Backend.beJVM Group24.TxInjector.txiJVM1 Group25.Backend.beJVM Group25.TxInjector.txiJVM1 Group26.Backend.beJVM Group26.TxInjector.txiJVM1 Group27.Backend.beJVM Group27.TxInjector.txiJVM1 Group28.Backend.beJVM Group28.TxInjector.txiJVM1 Group29.Backend.beJVM Group29.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group30.Backend.beJVM Group30.TxInjector.txiJVM1 Group31.Backend.beJVM Group31.TxInjector.txiJVM1 Group32.Backend.beJVM Group32.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 700 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 700 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.worker.pool.min 1 16 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.controller.handshake.period 5000 900000
specjbb.controller.handshake.timeout 600000 9000000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=100, saturate=200, service=90}
specjbb.forkjoin.workers 512 {Tier1=560, Tier2=65, Tier3=140}
specjbb.group.count 1 32
specjbb.heartbeat.period 10000 900000
specjbb.heartbeat.threshold 100000 9000000
specjbb.mapreducer.pool.size 512 10
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 939465 IR
High-bound (settled) is 910022 IR
Copyright © 2015-2023 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
