SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR655 V3 351194 SPECjbb2015-Composite max-jOPS
165675 SPECjbb2015-Composite critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Jan 18, 2023
SPEC license #: 9017 Hardware Availability: Apr-2023 Software Availability: Jan-2023 Publication: Thu Feb 23 11:18:22 EST 2023
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores96
Total Threads192
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR655 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableApr-2023
ModelThinkSystem SR655 V3
Form Factor2U
CPU NameAMD EPYC 9654
CPU Characteristics96 core, 2.40GHz, 384MB L3 Cache (Max Boost Clock up to 3.70GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
VersionKAE105L
CPU Frequency (MHz)2400
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache384MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1487)
AvailableJan-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.6
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.6
AvailableJan-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • L2 Stream HW Prefetcher set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms730g -Xmx730g -Xmn725g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=192 -XX:SurvivorRatio=80 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:InlineSmallCode=11k -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 343877 347536 351194 354852 358510
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 60361 184742 210350 228475 232910 165675
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3658 - / 3658 - / 3658 - / 3658 - / 3658 - / 3658
1000us 120723 / 25608 3658 / 7317 - / 3658 - / 3658 - / 3658 - / 3658
5000us 296320 / 84140 120723 / 51216 32924 / 36583 29266 / 32924 21950 / 25608 10975 / 14633
10000us 303636 / 307295 259737 / 98773 69507 / 73165 65849 / 69507 58532 / 62191 36583 / 18291
25000us 307295 / 310953 285345 / 289003 267054 / 270712 248762 / 252421 182913 / 186572 69507 / 18291
50000us 310953 / 314611 292662 / 296320 274370 / 278029 267054 / 256079 212180 / 208521 106090 / 32924
75000us 310953 / 314611 296320 / 299978 274370 / 278029 267054 / 263395 245104 / 208521 120723 / 65849
100000us 310953 / 314611 299978 / 303636 278029 / 281687 267054 / 270712 245104 / 226813 164622 / 95115
200000us 318269 / 321928 303636 / 307295 278029 / 281687 278029 / 281687 267054 / 252421 204863 / 193888
500000us 325586 / 329244 310953 / 314611 292662 / 296320 285345 / 289003 278029 / 281687 267054 / 256079
1000000us 351194 / - 332903 / 329244 318269 / 321928 310953 / 314611 303636 / 307295 278029 / 281687

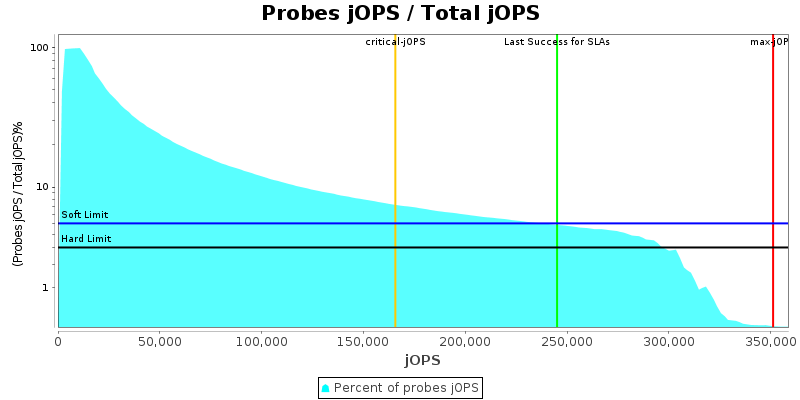

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

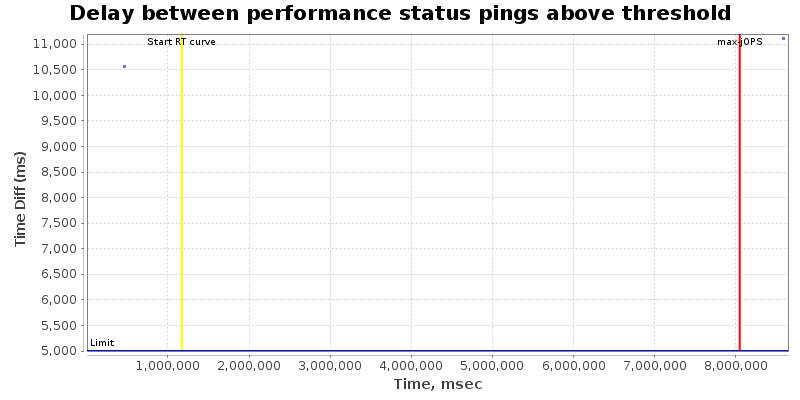

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 128
specjbb.comm.connect.selector.runner.count 0 16
specjbb.comm.connect.worker.pool.max 256 65
specjbb.comm.connect.worker.pool.min 1 50
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.25
specjbb.customerDriver.threads 64 {probe=120, saturate=128}
specjbb.forkjoin.workers 64 {Tier1=180, Tier2=10, Tier3=28}
specjbb.mapreducer.pool.size 64 6
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 365827 IR
High-bound (settled) is 354094 IR
Copyright © 2015-2023 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
