SPECjbb2015 Report for jbb2015-20230119-01008 : 421768 max-jOPS ; 261161 critical-jOPS

SUT Description

Hardware hw_1
Name	RS720-E11-RS12U
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Jan-2023
Model	RS720-E11-RS12U
Form Factor	2U
CPU Name	Intel Xeon Platinum 8490H
CPU Characteristics	60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	Version 0501
CPU Frequency (MHz)	1900
Primary Cache	32 KB (I) + 48 KB (D) on chip per core
Secondary Cache	2 MB (I+D) per core
Tertiary Cache	112.5 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 1.6 TB PCIE NVMe SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.5
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.5
Available	Oct-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Engine Boost = Aggressive SNC = Enable SNC4 (4-clusters) VT-d = Disabled Patrol Scrub = Disabled SR-IOV Support = Disabled DCU Streamer Prefetching = Disabled ENERGY_PERF_BIAS_CFG mode = Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(2)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 128 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 819200 > /proc/sys/vm/max_map_count echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-server -Xms946g -Xmx946g -Xmn936g -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:-UseFastStosb -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=224 -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:ThreadStackSize=8k -XX:+UseNUMA -XX:MetaspaceSize=2048m -XX:MaxGCPauseMillis=200 -XX:MaxTenuringThreshold=12 -XX:InlineSmallCode=10k -XX:UseAVX=0
Tuning	Used numactl to run on all available nodes numactl --cpunodebind=0-7 --interleave=0-7
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	411605	416686	421768	426849	431931

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	221047	261699	261699	281178	285413	261161

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	208343 / 213425	5082 / 10163	5082 / 10163	- / 5082	- / 5082	- / 5082
1000us	376034 / 381115	248995 / 254077	66060 / 71142	40652 / 45734	20326 / 25408	- / 5082
5000us	391279 / 396360	355708 / 360789	269322 / 264240	259159 / 208343	152446 / 147365	45734 / 30489
10000us	396360 / 401442	360789 / 365871	320137 / 309974	284566 / 274403	223588 / 218506	60978 / 30489
25000us	406523 / 411605	381115 / 386197	345545 / 350626	335382 / 340463	259159 / 264240	121957 / 30489
50000us	411605 / 416686	386197 / 391279	350626 / 355708	335382 / 340463	259159 / 264240	142283 / 30489
75000us	416686 / 421768	386197 / 391279	360789 / 365871	335382 / 340463	289648 / 264240	167691 / 91468
100000us	416686 / 421768	391279 / 396360	360789 / 365871	345545 / 350626	289648 / 264240	208343 / 137202
200000us	421768 / -	401442 / 406523	376034 / 381115	360789 / 365871	335382 / 325219	259159 / 254077
500000us	421768 / -	416686 / 421768	391279 / 396360	386197 / 391279	360789 / 340463	335382 / 320137
1000000us	421768 / -	421768 / -	421768 / -	416686 / 421768	406523 / 401442	376034 / 370952

Number of probes

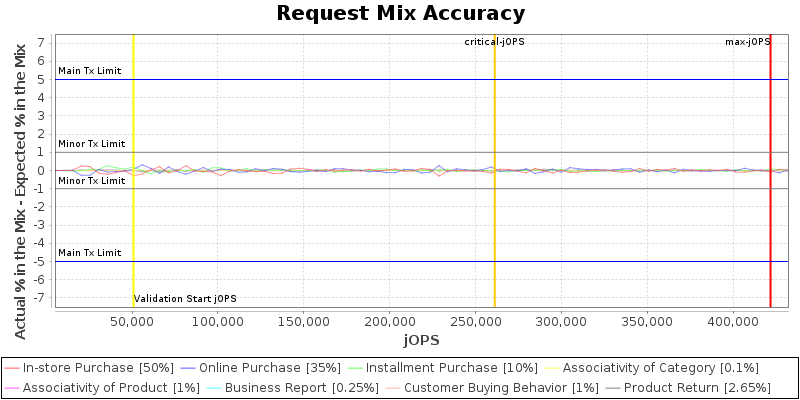

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

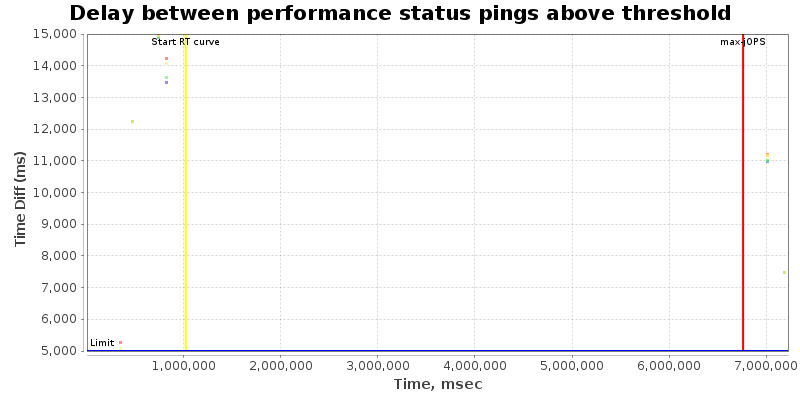

Delay between performance status pings during RT Curve (Response-Throughput Curve)

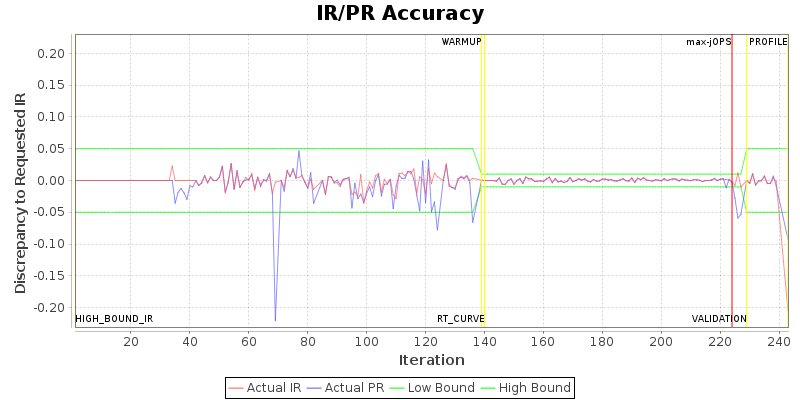

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	32
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.warmup.step	0.1	0.2
specjbb.customerDriver.threads	64	69
specjbb.forkjoin.workers	240	{Tier1=113, Tier2=56, Tier3=20}
specjbb.group.count	1	2
specjbb.mapreducer.pool.size	240	16

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 508154 IR

High-bound (settled) is 450969 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

ASUSTeK Computer Inc. RS720-E11-RS12U	421768 SPECjbb2015-Composite max-jOPS 261161 SPECjbb2015-Composite critical-jOPS
Tested by: ASUSTeK Computer Inc.	Test Sponsor: ASUSTeK Computer Inc.	Test location: Taipei, Taiwan	Test date: Jan 17, 2023
SPEC license #: 9016	Hardware Availability: Jan-2023	Software Availability: Oct-2022	Publication: Mon Feb 13 12:24:34 EST 2023
