Dell Inc. PowerEdge MX760c 338796 SPECjbb2015-Composite max-jOPS
309284 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Jan 04,2023
SPEC license #: 6573 Hardware Availability: Feb-2023 Software Availability: Nov-2022 Publication: Thu Jan 26 16:09:08 EST 2023
Benchmark Results Summary

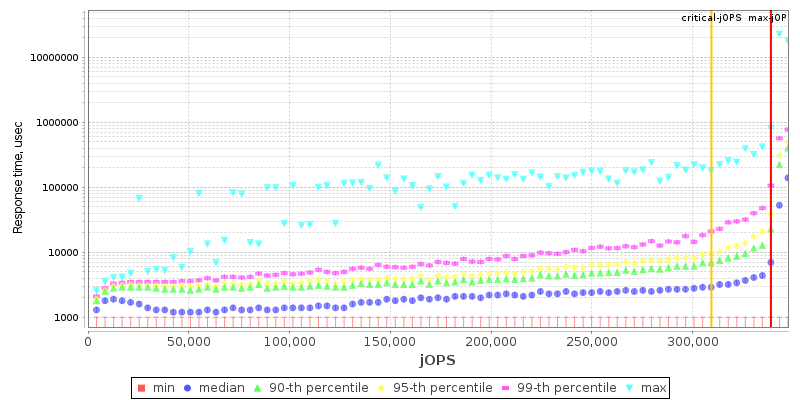

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Modular
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores112
Total Threads224
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge MX760c
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableFeb-2023
ModelPowerEdge MX760c
Form Factor1U Modular
CPU NameIntel Xeon Platinum 8480+
CPU Characteristics56 core, 2.00 GHz, 105 MB L3 Cache (Turbo boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System112
Cores Per Chip56
Threads Per System224
Threads Per Core2
Version0.3.1
CPU Frequency (MHz)2000
Primary Cache32 KB(I) + 48 KB(D) per core
Secondary Cache2048 KB (I+D) per core
Tertiary Cache105 MB (I+D) on chip per chip
Other CacheNone
Disk1 x SATA SSD 480 GB
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB RDIMM 2Rx8 PC5-4800B-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)4 x 3000
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.5
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 17.0.5
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Logical Processor : Enabled
  • Virtualization Technology : Disabled
  • DCU Streamer Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • DCU IP Prefetcher : Disabled
  • Sub NUMA Cluster : 4-Way Clustering
  • System Profile : Custom
  • CPU Power Management : Maximum Performance
  • Turbo Boost : Enabled
  • C-States : Disabled
  • CPU Interconnect Bus Link Power Management : Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 10 > /proc/sys/vm/swappiness
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 819200 > /proc/sys/vm/max_map_count
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo "10000 65535" > /proc/sys/net/ipv4/ip_local_port_range
  • ulimit -n 819200
  • ulimit -s 819200
  • ulimit -l 800000000
  • sysctl net.core.wmem_max=12582912
  • sysctl net.core.rmem_max=12582912
  • sysctl net.ipv4.tcp_rmem='10240 87380 12582912'
  • sysctl net.ipv4.tcp_wmem='10240 87380 12582912'
  • sysctl net.core.netdev_max_backlog=655560
  • sysctl net.core.somaxconn=32768
  • sysctl net.ipv4.tcp_no_metrics_save=1
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms946g -Xmx946g -Xmn936g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:-UseFastStosb -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=224 -XX:SurvivorRatio=180 -XX:TargetSurvivorRatio=95 -XX:ThreadStackSize=8k -XX:+UseNUMA -XX:MetaspaceSize=2048m -XX:MaxGCPauseMillis=200 -XX:MaxTenuringThreshold=12 -XX:InlineSmallCode=10k -XX:UseAVX=0
Tuning Used numactl to run on all available nodes
  • numactl --cpunodebind=0-7 --interleave=0-7
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 330326 334561 338796 343031 347266
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 235039 315503 336678 336678 336678 309284
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4235 - / 4235 - / 4235 - / 4235 - / 4235 - / 4235
1000us 177868 / 182103 - / 4235 - / 4235 - / 4235 - / 4235 - / 4235
5000us 338796 / - 334561 / 338796 262567 / 266802 215982 / 220217 127048 / 114344 21175 / 25410
10000us 338796 / - 338796 / - 326091 / 330326 309151 / 313386 232922 / 237157 63524 / 25410
25000us 338796 / - 338796 / - 338796 / - 334561 / 338796 313386 / 317621 84699 / 25410
50000us 338796 / - 338796 / - 338796 / - 338796 / - 334561 / 338796 165163 / 25410
75000us 338796 / - 338796 / - 338796 / - 338796 / - 334561 / 338796 182103 / 55054
100000us 338796 / - 338796 / - 338796 / - 338796 / - 334561 / 338796 182103 / 101639
200000us 338796 / - 338796 / - 338796 / - 338796 / - 338796 / - 309151 / 143988
500000us 338796 / - 338796 / - 338796 / - 338796 / - 338796 / - 334561 / 338796
1000000us 338796 / - 338796 / - 338796 / - 338796 / - 338796 / - 338796 / -
Probes jOPS / Total jOPS

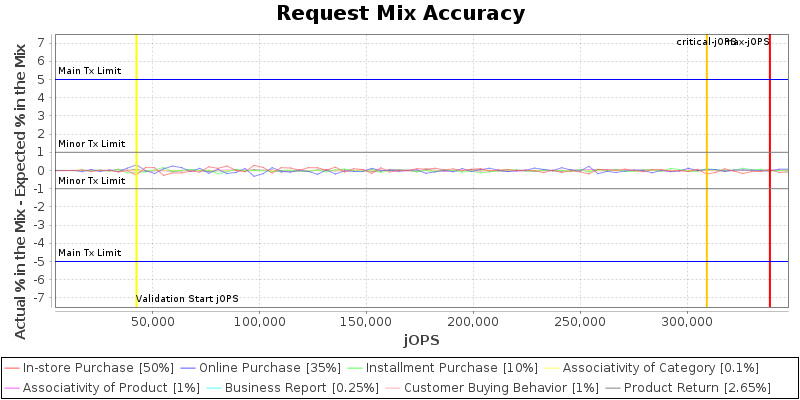

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

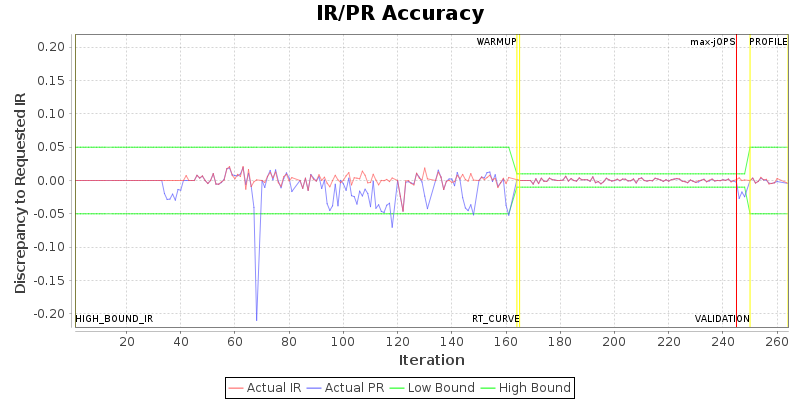

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 32
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.2
specjbb.customerDriver.threads 64 69
specjbb.forkjoin.workers 224 {Tier1=113, Tier2=56, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 224 16
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 423495 IR
High-bound (settled) is 364275 IR
