SPECjbb2015 Report for jbb2015-20221215-00970 : 338828 max-jOPS ; 198722 critical-jOPS

Hardware hw_1
Name	Cisco UCS X210c M7
Vendor	Cisco Systems
Vendor URL	http://www.cisco.com/
Available	Nov-2022
Model	Cisco UCS X210c M7
Form Factor	Blade
CPU Name	Intel Xeon Platinum 8490H
CPU Characteristics	60-Core, 1.90GHz, 112.5MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	X210M7.4.2.600.539
CPU Frequency (MHz)	1900
Primary Cache	32KB(I)+48KB(D) per core
Secondary Cache	2 MB (I+D) per core
Tertiary Cache	112.5MB (I+D) on chip per chip
Other Cache	None
Disk	1x 960 GB M.2 SSD SATA
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB 2Rx4
Memory Details	64GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	2x 100 Gbit NIC
Power Supply Quantity and Rating (W)	4 x 2800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Sep-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.5
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM,version 17.0.5
Available	Oct-2022
Bitness	64
Notes	none
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Hyperthreading: Enable Hardware Prefetcher: Enable DCU Streamer Prefetcher: Enable Turbo Mode: Enable MLC Streamer Prefetcher: Enabled SubNUMAClustering :Enable SNC2 Memory Patrol Scrub: Disabled Throttling Mode : Disable Page Policy: Adaptive
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 128 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 128 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 1 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-server -Xms970g -Xmx970g -Xmn965g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=120 -XX:SurvivorRatio=200 -XX:TargetSurvivorRatio=99 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages
Tuning	None
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Pass	Fail
jOPS	335299	338828	342358	345887	349417

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	164120	196473	199414	216179	222943	198722

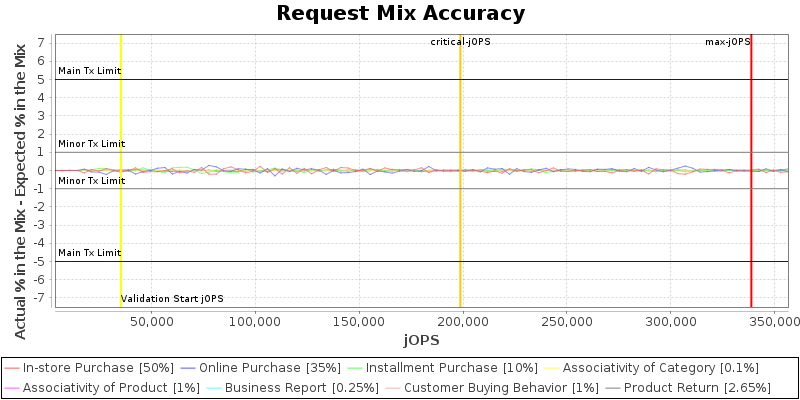

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	10
specjbb.comm.connect.timeouts.connect	60000	800000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.customerDriver.threads	64	{=75, probe=72, saturate=256}
specjbb.forkjoin.workers	240	{Tier1=112, Tier2=1, Tier3=18}
specjbb.group.count	1	2
specjbb.mapreducer.pool.size	240	8


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 352946 IR

High-bound (settled) is 341630 IR

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Cisco Systems Cisco UCS X210c M7	338828 SPECjbb2015-Composite max-jOPS 198722 SPECjbb2015-Composite critical-jOPS
Tested by: Cisco Systems	Test Sponsor: Cisco Systems	Test location: San Jose, CA	Test date: Dec 14, 2022
SPEC license #: 9019	Hardware Availability: Mar-2023	Software Availability: Nov-2022	Publication: Thu Jan 12 11:42:47 EST 2023

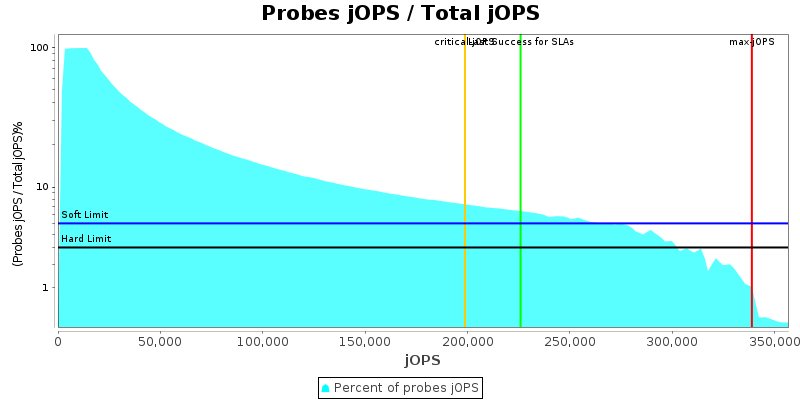

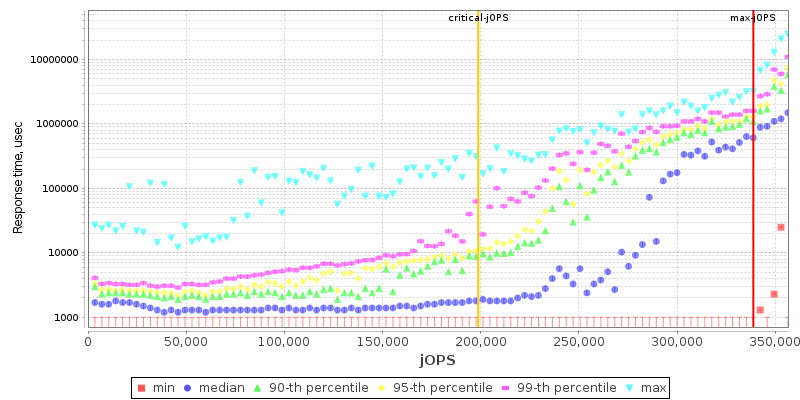

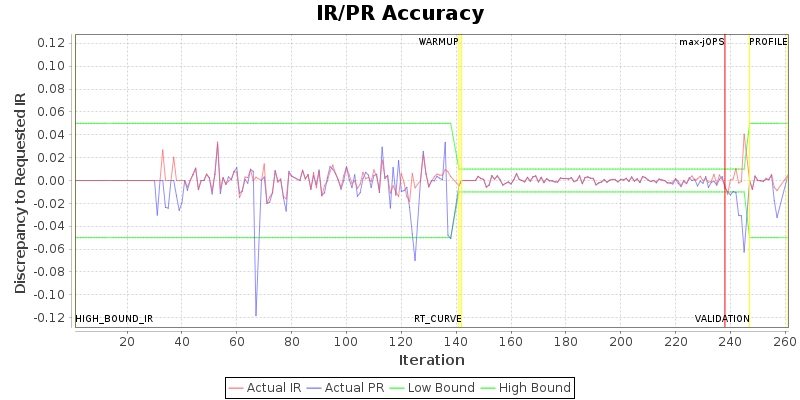

SPECjbb2015-Composite: Single JVM/Single Host (# of groups: 2) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
