SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Dell Inc. PowerEdge MX760c 339196 SPECjbb2015-MultiJVM max-jOPS
286242 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Dec 07,2022
SPEC license #: 55 Hardware Availability: Feb-2023 Software Availability: Nov-2022 Publication: Thu Jan 12 11:42:47 EST 2023
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

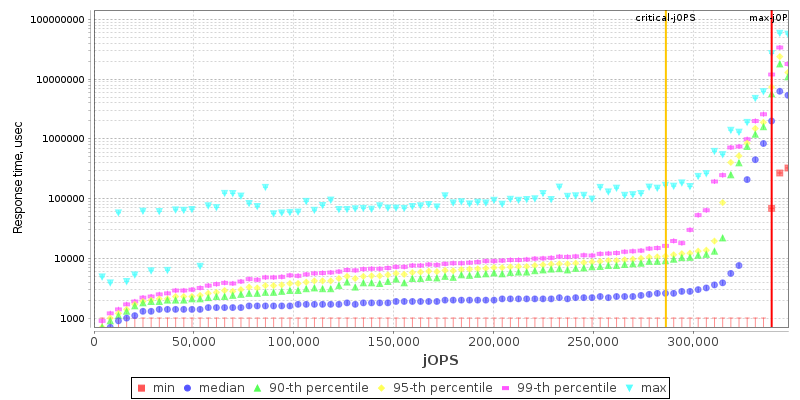

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Modular
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores104
Total Threads208
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameDell Inc. PowerEdge MX760c
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableFeb-2023
ModelPowerEdge MX760c
Form Factor1U Modular
CPU NameIntel Xeon Platinum 8470Q
CPU Characteristics52 core, 2.10 GHz, 105 MB L3 Cache (Turbo boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System104
Cores Per Chip52
Threads Per System208
Threads Per Core2
Version0.3.1
CPU Frequency (MHz)2100
Primary Cache32 KB(I) + 48 KB(D) per core
Secondary Cache2048 KB (I+D) per core
Tertiary Cache105 MB (I+D) on chip per chip
Other CacheNone
Disk1 x SATA SSD 480 GB
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB RDIMM 2Rx8 PC5-4800B-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)4 x 3000
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 8.6 (Ootpa)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version4.18.0-372.9.1.el8.x86_64
AvailableMay-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 19.0.1
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 19.0.1
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Logical Processor : Enabled
  • Virtualization Technology : Disabled
  • DCU Streamer Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • DCU IP Prefetcher : Enabled
  • Sub NUMA Cluster : 2-Way Clustering
  • System Profile : Custom
  • CPU Power Management : Maximum Performance
  • Turbo Boost : Enabled
  • C-States : Disabled
  • CPU Interconnect Bus Link Power Management : Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 655350
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 155000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms225g -Xmx225g -Xmn220g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=52 -XX:UseAVX=0
Tuning Used numactl to affinitize Backend JVM to one NUMA node
  • numactl --cpunodebind=$node --membind=$node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Used numactl to affinitize TxInjector JVM to one NUMA node
  • numactl --cpunodebind=$node --membind=$node
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 331023 335109 339196 343283 347369
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 226811 296285 300372 308545 308545 286242
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 8173 / 12260 4087 / 8173 - / 4087 - / 4087 - / 4087 - / 4087
1000us 269722 / 273809 16347 / 20433 8173 / 12260 8173 / 12260 4087 / 8173 - / 4087
5000us 331023 / 335109 314676 / 318763 179815 / 183901 134861 / 138948 93994 / 98081 16347 / 12260
10000us 331023 / 335109 322849 / 326936 290156 / 294242 273809 / 277896 224768 / 228855 53127 / 12260
25000us 331023 / 335109 322849 / 326936 314676 / 318763 310589 / 314676 294242 / 298329 53127 / 12260
50000us 331023 / 335109 322849 / 326936 314676 / 318763 310589 / 314676 298329 / 302416 53127 / 12260
75000us 331023 / 335109 322849 / 326936 314676 / 318763 310589 / 314676 306502 / 310589 171641 / 57214
100000us 331023 / 335109 322849 / 326936 314676 / 318763 314676 / 318763 306502 / 310589 249289 / 65387
200000us 335109 / 339196 322849 / 326936 314676 / 318763 314676 / 318763 310589 / 314676 298329 / 302416
500000us 335109 / 339196 331023 / 335109 322849 / 326936 318763 / 322849 314676 / 318763 306502 / 310589
1000000us 339196 / - 335109 / 339196 326936 / 331023 326936 / 331023 326936 / 331023 314676 / 318763

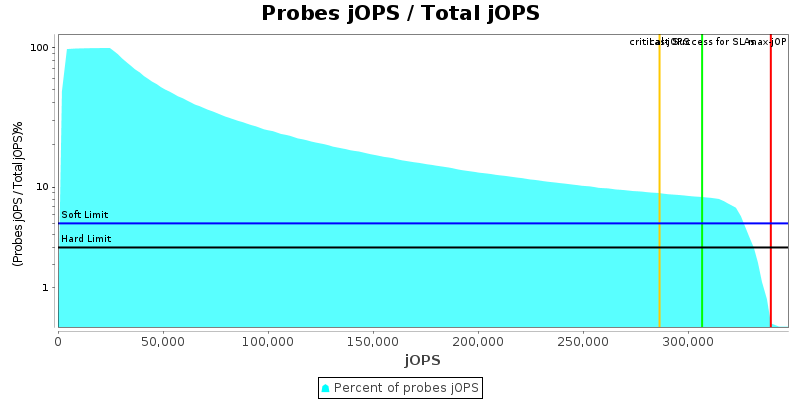

Number of probes
Probes jOPS / Total jOPS

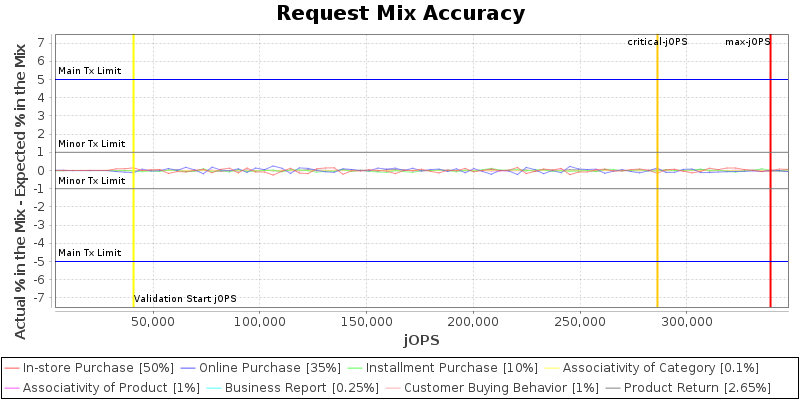

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

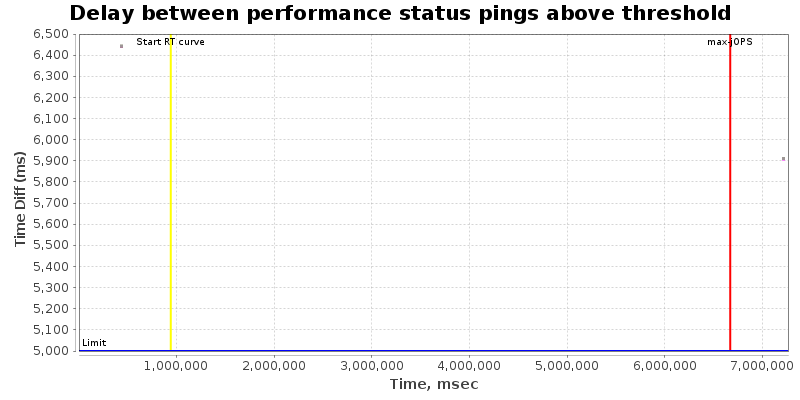

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

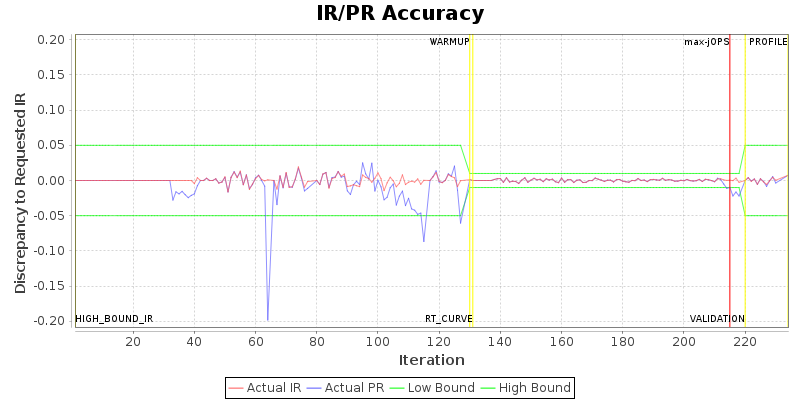

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1
specjbb.comm.connect.selector.runner.count 0 12 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 64 256 256 256 256 256 256 256 256
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 208 {Tier1=198, Tier2=53, Tier3=20}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 408670 IR
High-bound (settled) is 367124 IR
Copyright © 2015-2023 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
