Dell Inc. PowerEdge R760 359630 SPECjbb2015-MultiJVM max-jOPS
297523 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Dec 13,2022
SPEC license #: 55 Hardware Availability: Feb-2023 Software Availability: Nov-2022 Publication: Thu Jan 12 11:42:47 EST 2023
Benchmark Results Summary

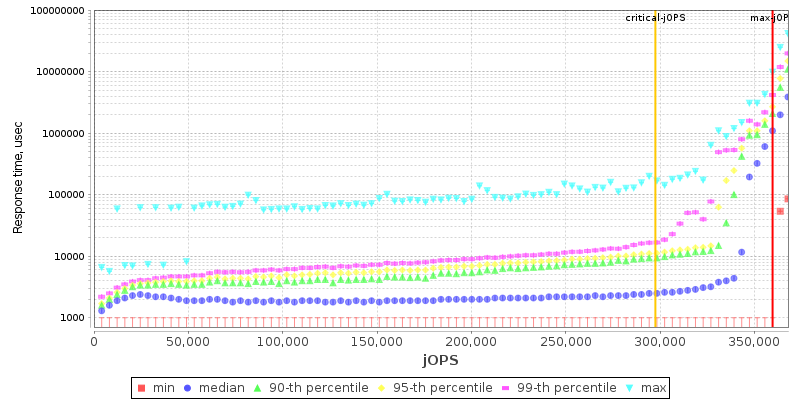

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores112
Total Threads224
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R760
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableFeb-2023
ModelPowerEdge R760
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8480+
CPU Characteristics56 core, 2.00 GHz, 105 MB L3 Cache (Turbo boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System112
Cores Per Chip56
Threads Per System224
Threads Per Core2
Version0.3.1, Nov-2022
CPU Frequency (MHz)2000
Primary Cache32 KB(I) + 48 KB(D) per core
Secondary Cache2048 KB (I+D) per core
Tertiary Cache105 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 2.5 NVM Express 960GB
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB RDIMM 2Rx8 PC5-4800B-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)2 x 1400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 19.0.1
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 19.0.1
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Logical Processor : Enabled
  • Virtualization Technology : Disabled
  • DCU Streamer Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • DCU IP Prefetcher : Enabled
  • Sub NUMA Cluster : 2-Way Clustering
  • System Profile : Custom
  • CPU Power Management : Maximum Performance
  • Turbo Boost : Enabled
  • C-States : Disabled
  • CPU Interconnect Bus Link Power Management : Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 655350
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 155000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms225g -Xmx225g -Xmn220g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:UseAVX=0
Tuning Used numactl to affinitize Backend JVM to one NUMA node
  • numactl --cpunodebind=$node --membind=$node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Used numactl to affinitize TxInjector JVM to one NUMA node
  • numactl --cpunodebind=$node --membind=$node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 351456 355543 359630 363716 367803
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 222725 308545 317400 324892 328979 297523
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4087 - / 4087 - / 4087 - / 4087 - / 4087 - / 4087
1000us 273809 / 8173 - / 4087 - / 4087 - / 4087 - / 4087 - / 4087
5000us 351456 / 355543 339196 / 343283 179815 / 183901 126688 / 114428 57214 / 61300 - / 4087
10000us 355543 / 359630 339196 / 343283 302416 / 306502 273809 / 277896 220682 / 224768 49040 / 12260
25000us 355543 / 359630 343283 / 347369 331023 / 335109 326936 / 331023 306502 / 310589 49040 / 12260
50000us 355543 / 359630 343283 / 347369 335109 / 339196 326936 / 331023 322849 / 314676 49040 / 12260
75000us 355543 / 359630 343283 / 347369 335109 / 339196 331023 / 335109 322849 / 326936 147121 / 81734
100000us 355543 / 359630 343283 / 347369 335109 / 339196 331023 / 335109 326936 / 331023 232942 / 155295
200000us 355543 / 359630 347369 / 351456 339196 / 343283 335109 / 339196 326936 / 331023 322849 / 294242
500000us 359630 / - 351456 / 355543 343283 / 347369 339196 / 343283 331023 / 335109 322849 / 326936
1000000us 359630 / - 355543 / 359630 351456 / 355543 343283 / 347369 343283 / 347369 335109 / 331023
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

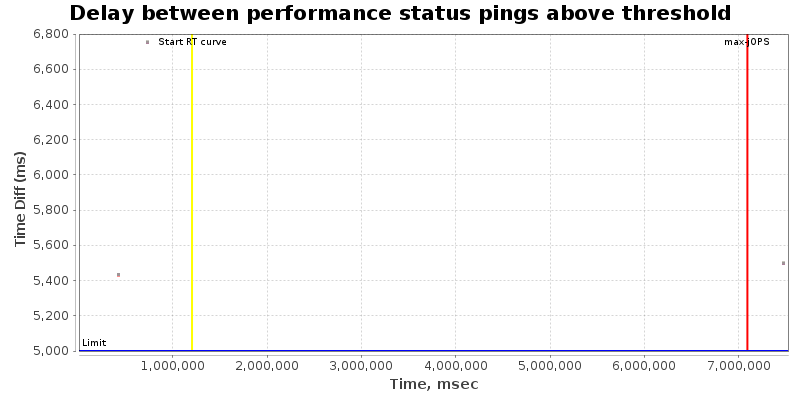

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1
specjbb.comm.connect.selector.runner.count 0 12 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 64 256 256 256 256 256 256 256 256
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 224 {Tier1=198, Tier2=53, Tier3=20}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 408670 IR
High-bound (settled) is 386179 IR
