SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
SYSGEAR SYSALIGN_vMEM82 169398 SPECjbb2015-Composite max-jOPS
143723 SPECjbb2015-Composite critical-jOPS
Tested by: Telecommunications Technology Association Test Sponsor: Telecommunications Technology Association Test location: TTA, Seongnam-city, Korea Test date: Jan 9, 2023
SPEC license #: A83 Hardware Availability: May-2022 Software Availability: Jul-2022 Publication: Thu Jan 12 11:42:47 EST 2023
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

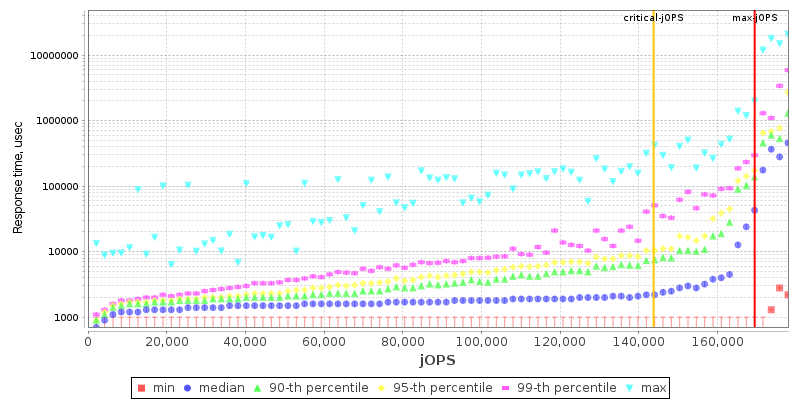

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSYSGEAR
Vendor URLhttps://ai.sysgear.co.kr/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores80
Total Threads160
Total Memory Amount (GB)1024(Virtual Memory: 2048)
Total OS Images1
SW EnvironmentVirtual

SUT Description
Hardware hw_1
NameSYSALIGN_vMEM82
VendorSYSGEAR
Vendor URLhttps://ai.sysgear.co.kr/
AvailableMay-2022
ModelSYSALIGN_vMEM82
Form Factor2U
CPU NameIntel Xeon Platinum 8380
CPU Characteristics40 Core, 2.3 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System80
Cores Per Chip40
Threads Per System160
Threads Per Core2
VersionVersion 1.0
CPU Frequency (MHz)2300
Primary Cache32 KB (I) + 48 KB (D) on chip per core
Secondary Cache1.25 MB (I+D) per core
Tertiary Cache60 MB (I+D) on chip per chip
Other CacheNone
Disk2x960 GB SATA SSD, 6x4 TB NVMe SSD
File SystemXFS
Memory Amount (GB)1024(Virtual Memory: 2048)
# and size of DIMM(s)32 x 32GB
Memory Details1Rx4 PC4-25600R
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)800w Dual Redundant
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 7.3
VendorRed Hat
Vendor URLhttps://www.redhat.com/
Version3.10.0-514.el7.x86_64
AvailableMarch-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 19.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 19.0.1
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameSMES
VendorSysalign
Vendor URLhttp://sysalign.com/
VersionNone
AvailableJul-2022
Bitness64
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Virtual
Tuning tuning
Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 65536
  • SELinux=enforcing
  • tuned-adm profile=throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms650g -Xmx650g -Xmn600g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=160 -XX:+UseHugeTLBFS -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 167280 169398 171515 173633 175750
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 113073 140811 149281 157222 164104 143723
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4235 / 6352 - / 2117 - / 2117 - / 2117 - / 2117 - / 2117
1000us 120696 / 122813 4235 / 6352 2117 / 4235 2117 / 4235 - / 2117 - / 2117
5000us 167280 / 169398 163045 / 165163 127048 / 122813 101639 / 103756 67759 / 69877 - / 2117
10000us 169398 / - 163045 / 165163 148223 / 150340 139753 / 141870 116461 / 107991 38114 / 2117
25000us 169398 / - 167280 / 169398 160928 / 163045 156693 / 158810 139753 / 141870 67759 / 12705
50000us 169398 / - 169398 / - 163045 / 165163 163045 / 165163 154575 / 143988 80464 / 12705
75000us 169398 / - 169398 / - 163045 / 165163 163045 / 165163 158810 / 152458 127048 / 12705
100000us 169398 / - 169398 / - 165163 / 167280 163045 / 165163 163045 / 165163 127048 / 19057
200000us 169398 / - 169398 / - 169398 / - 169398 / - 165163 / 167280 154575 / 129166
500000us 169398 / - 169398 / - 169398 / - 169398 / - 169398 / - 160928 / 152458
1000000us 169398 / - 169398 / - 169398 / - 169398 / - 169398 / - 163045 / 165163

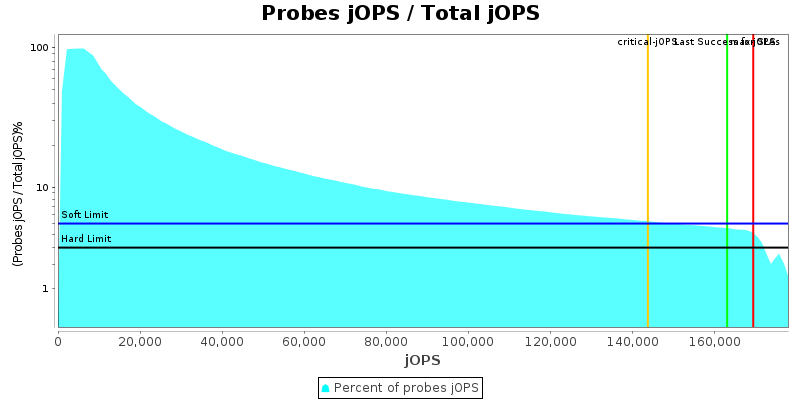

Number of probes
Probes jOPS / Total jOPS

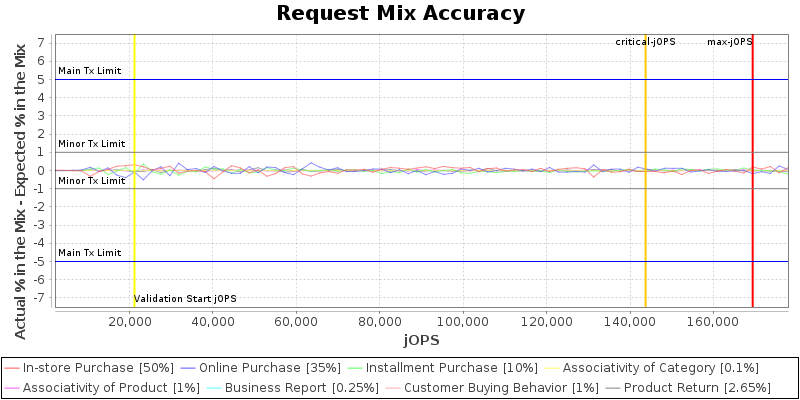

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

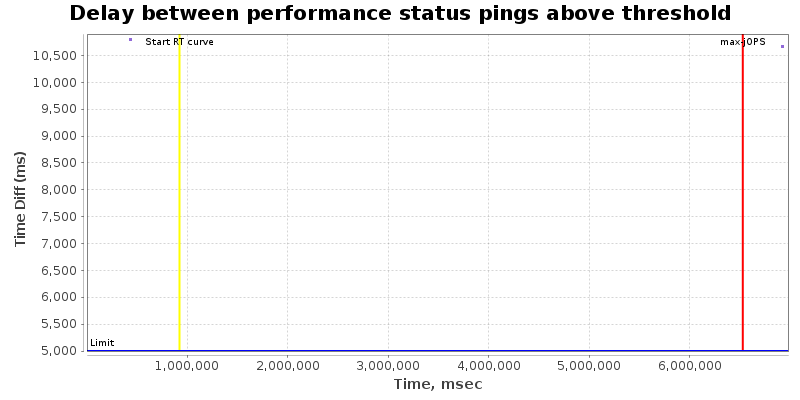

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.controller.rtcurve.start 0.0 0.0
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.customerDriver.threads 64 {probe=75, saturate=85}
specjbb.forkjoin.workers 160 {Tier1=180, Tier2=56, Tier3=28}
specjbb.mapreducer.pool.size 160 4
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 211747 IR
High-bound (settled) is 183098 IR
