SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Inspur Corporation NF5280M6 205936 SPECjbb2015-Composite max-jOPS
146068 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Nov 22, 2022
SPEC license #: 3358 Hardware Availability: Apr-2021 Software Availability: Nov-2022 Publication: Thu Dec 15 11:19:54 EST 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameInspur NF5280M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2021
ModelInspur NF5280M6
Form Factor2U
CPU NameIntel Xeon Platinum 8352Y
CPU Characteristics32 Core, 2.20 GHz, 48 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
Version6.01.00 released Nov-2022
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache48MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.6 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-372.9.1
AvailableMay-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.5
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.5
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms420g -Xmx420g -Xmn400g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=1 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=128 -XX:SurvivorRatio=200 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages -XX:AllocatePrefetchInstr=2 -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 203484 205936 208388 210839 213291
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 126258 136309 148434 160056 162624 146068
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 93162 / 95613 4903 / 7355 2452 / 4903 - / 2452 - / 2452 - / 2452
1000us 183871 / 186323 115226 / 117678 12258 / 14710 9806 / 12258 7355 / 9806 - / 2452
5000us 198581 / 201033 178968 / 181420 134839 / 132387 120129 / 122581 98065 / 100516 9806 / 12258
10000us 201033 / 203484 186323 / 188775 166710 / 169162 161807 / 164259 129936 / 122581 39226 / 12258
25000us 203484 / 205936 198581 / 201033 181420 / 183871 176517 / 174065 142194 / 132387 61290 / 12258
50000us 205936 / - 201033 / 203484 193678 / 191226 188775 / 191226 161807 / 137291 83355 / 12258
75000us 205936 / - 201033 / 203484 193678 / 196130 193678 / 191226 164259 / 149549 102968 / 12258
100000us 205936 / - 201033 / 203484 198581 / 196130 193678 / 191226 164259 / 159355 120129 / 12258
200000us 205936 / - 203484 / 205936 201033 / 203484 201033 / 203484 188775 / 191226 147097 / 12258
500000us 205936 / - 205936 / - 203484 / 205936 201033 / 203484 201033 / 203484 188775 / 191226
1000000us 205936 / - 205936 / - 205936 / - 205936 / - 205936 / - 201033 / 203484

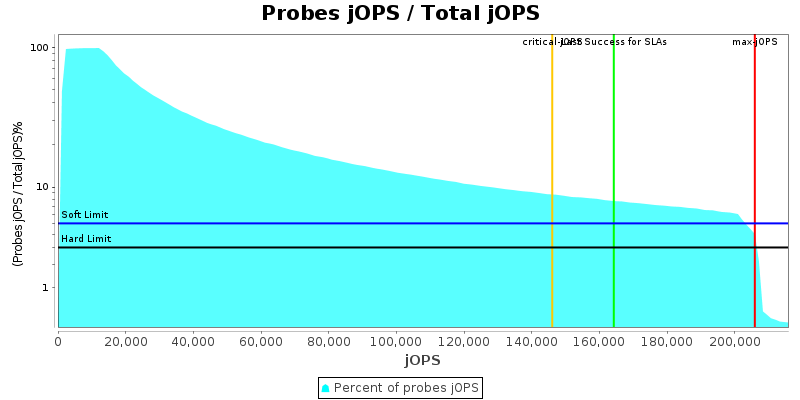

Number of probes
Probes jOPS / Total jOPS

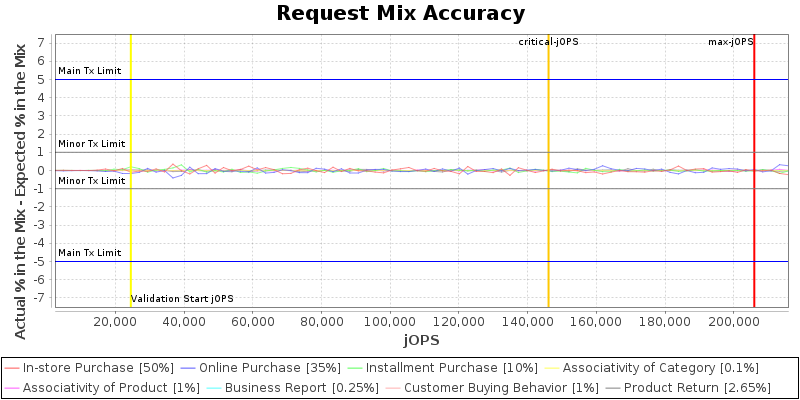

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

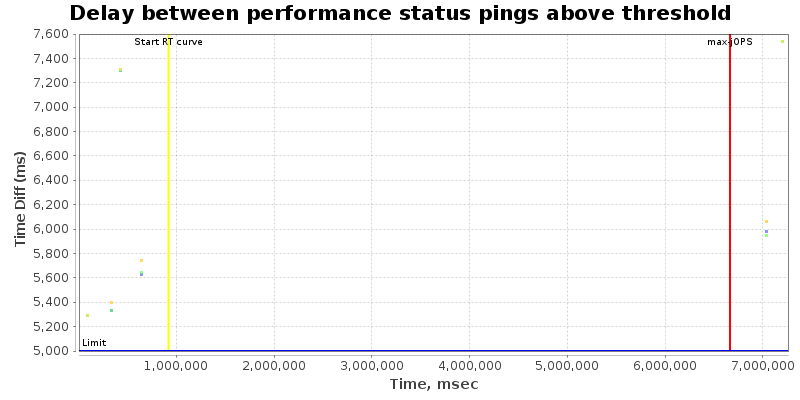

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

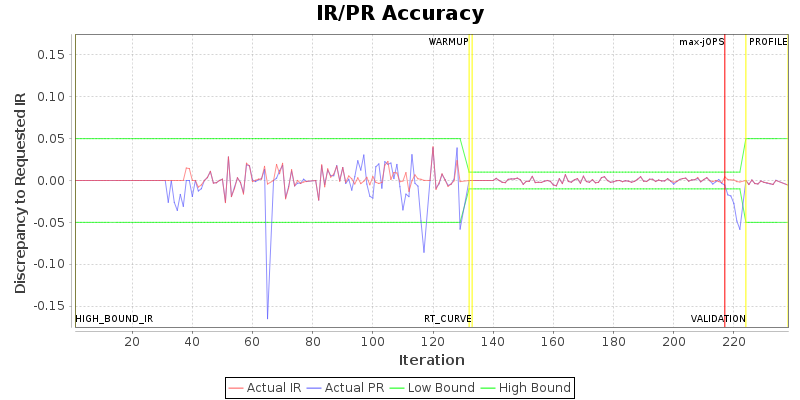

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 128 {=160, Tier1=120, Tier2=1, Tier3=28}
specjbb.group.count 1 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 245162 IR
High-bound (settled) is 220234 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
