SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Inspur Corporation NF5280M6 134869 SPECjbb2015-MultiJVM max-jOPS
66481 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Nov 23, 2022
SPEC license #: 3358 Hardware Availability: Apr-2021 Software Availability: Nov-2022 Publication: Thu Dec 15 11:19:54 EST 2022
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

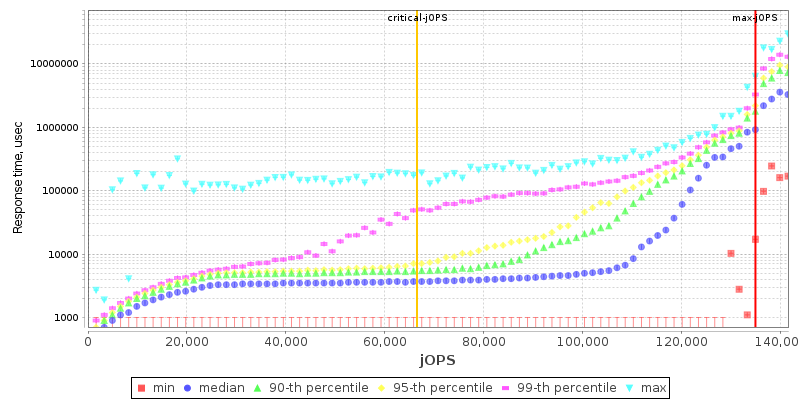

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads64
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameInspur NF5280M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2021
ModelInspur NF5280M6
Form Factor2U
CPU NameIntel Xeon Gold 6346
CPU Characteristics16 Core, 3.10 GHz, 36 MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System64
Threads Per Core2
Version6.01.00 released Nov-2022
CPU Frequency (MHz)3100
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache36MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.6 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-372.9.1
AvailableMay-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.5
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.5
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx30g -Xms30g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 133225 134869 136514 138159 139804
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 45230 56743 68257 79770 92928 66481
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1645 / 3289 1645 / 3289 - / 1645 - / 1645 - / 1645 - / 1645
1000us 19737 / 21382 4934 / 6579 3289 / 4934 3289 / 4934 1645 / 3289 - / 1645
5000us 118422 / 120067 100330 / 101974 46053 / 47698 26316 / 27961 21382 / 23026 8224 / 4934
10000us 120067 / 121711 110198 / 111843 88816 / 90461 74014 / 75658 46053 / 44408 8224 / 4934
25000us 121711 / 123356 116777 / 118422 101974 / 103619 93751 / 95395 57566 / 55921 8224 / 4934
50000us 123356 / 125001 118422 / 120067 108553 / 110198 100330 / 101974 69079 / 67435 8224 / 4934
75000us 123356 / 125001 120067 / 121711 110198 / 111843 105264 / 106909 78948 / 80593 8224 / 4934
100000us 125001 / 126646 120067 / 121711 113488 / 115132 108553 / 110198 92106 / 93751 21382 / 4934
200000us 128290 / 129935 123356 / 125001 118422 / 120067 116777 / 118422 111843 / 113488 90461 / 18092
500000us 134869 / - 129935 / 131580 125001 / 126646 125001 / 126646 123356 / 125001 118422 / 116777
1000000us 134869 / - 134869 / - 131580 / 133225 131580 / 133225 131580 / 133225 126646 / 128290

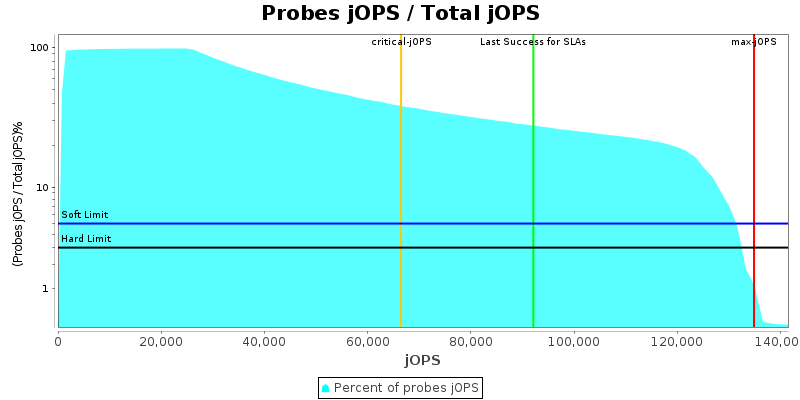

Number of probes
Probes jOPS / Total jOPS

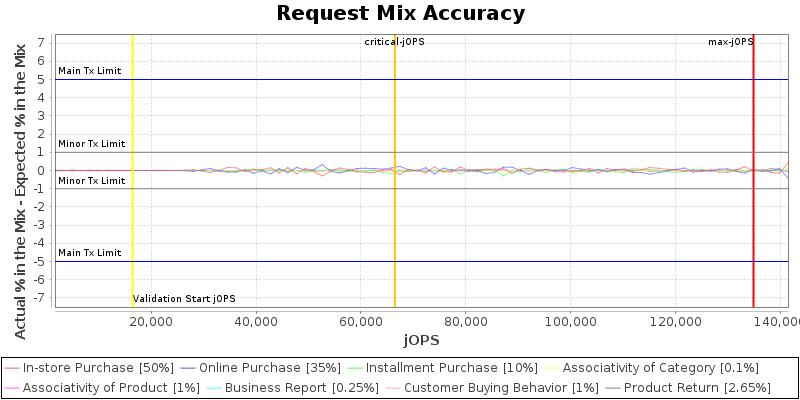

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

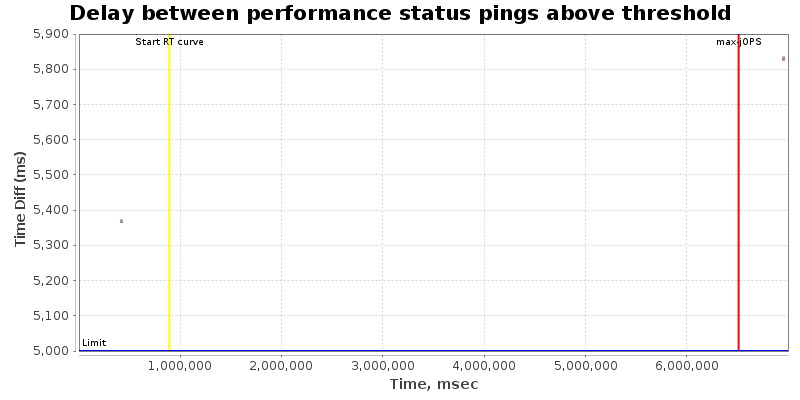

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

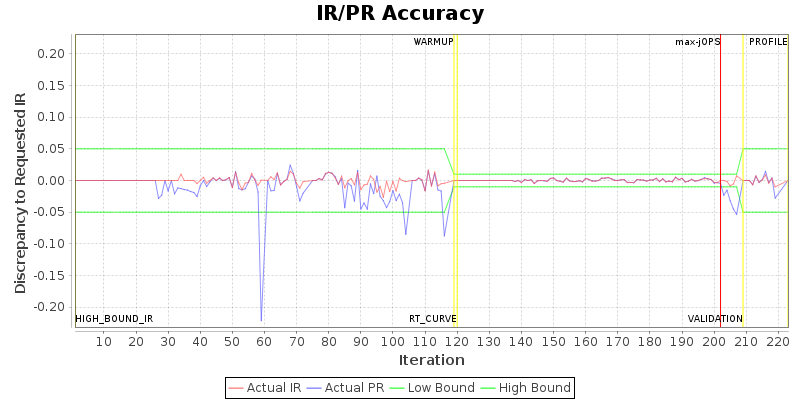

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 64 {Tier1=120, Tier2=40, Tier3=20}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 64 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 164475 IR
High-bound (settled) is 146003 IR
