SPECjbb2015 Report for jbb2015-20221019-00885 : 756952 max-jOPS ; 372032 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR665 V3
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Dec-2022
Model	ThinkSystem SR665 V3
Form Factor	2U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 core, 2.40GHz, 384MB L3 Cache (Max Boost Clock up to 3.70GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	KAE103A
CPU Frequency (MHz)	2400
Primary Cache	32KB(I)+32KB(D) on chip per core
Secondary Cache	1MB (I+D) on chip per core
Tertiary Cache	384MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480GB SATA SSD
File System	XFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.6 (Ootpa)
Vendor	Red Hat
Vendor URL	https://www.redhat.com/
Version	4.18.0-372.9.1
Available	May-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.4.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.4.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Socket set to NPS4 L1 Stream HW Prefetcher set to Disabled L2 Stream HW Prefetcher set to Disabled ACPI SRAT L3 Cache as NUMA Domain set to Enabled SOC P-states set to P0
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(24), jvm_TxInjector_1(24)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 64 > /proc/sys/kernel/sched_nr_migrate echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms10g -Xmx10g -Xmn8g -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=14 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15
Tuning	None
Notes	Used numactl to affinitize one Backend JVM (1 Group) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4: numactl --cpunodebind=3 --localalloc Group5: numactl --cpunodebind=4 --localalloc Group6: numactl --cpunodebind=5 --localalloc Group7: numactl --cpunodebind=6 --localalloc Group8: numactl --cpunodebind=7 --localalloc Group9: numactl --cpunodebind=8 --localalloc Group10: numactl --cpunodebind=9 --localalloc Group11: numactl --cpunodebind=10 --localalloc Group12: numactl --cpunodebind=11 --localalloc Group13: numactl --cpunodebind=12 --localalloc Group14: numactl --cpunodebind=13 --localalloc Group15: numactl --cpunodebind=14 --localalloc Group16: numactl --cpunodebind=15 --localalloc Group17: numactl --cpunodebind=16 --localalloc Group18: numactl --cpunodebind=17 --localalloc Group19: numactl --cpunodebind=18 --localalloc Group20: numactl --cpunodebind=19 --localalloc Group21: numactl --cpunodebind=20 --localalloc Group22: numactl --cpunodebind=21 --localalloc Group23: numactl --cpunodebind=22 --localalloc Group24: numactl --cpunodebind=23 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1
Tuning	None
Notes	Used numactl to affinitize one TxInjector JVM (1 Group) to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4: numactl --cpunodebind=3 --localalloc Group5: numactl --cpunodebind=4 --localalloc Group6: numactl --cpunodebind=5 --localalloc Group7: numactl --cpunodebind=6 --localalloc Group8: numactl --cpunodebind=7 --localalloc Group9: numactl --cpunodebind=8 --localalloc Group10: numactl --cpunodebind=9 --localalloc Group11: numactl --cpunodebind=10 --localalloc Group12: numactl --cpunodebind=11 --localalloc Group13: numactl --cpunodebind=12 --localalloc Group14: numactl --cpunodebind=13 --localalloc Group15: numactl --cpunodebind=14 --localalloc Group16: numactl --cpunodebind=15 --localalloc Group17: numactl --cpunodebind=16 --localalloc Group18: numactl --cpunodebind=17 --localalloc Group19: numactl --cpunodebind=18 --localalloc Group20: numactl --cpunodebind=19 --localalloc Group21: numactl --cpunodebind=20 --localalloc Group22: numactl --cpunodebind=21 --localalloc Group23: numactl --cpunodebind=22 --localalloc Group24: numactl --cpunodebind=23 --localalloc

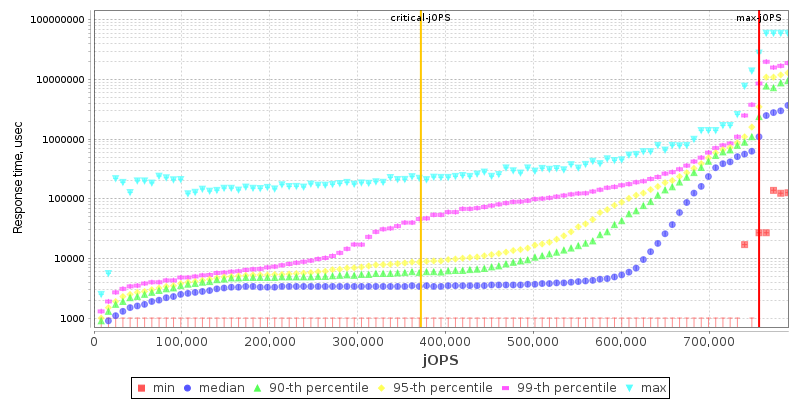

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	748724	756952	765180	773408	781635

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	259174	316768	382590	448412	506006	372032

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	8228 / 16455	- / 8228	- / 8228	- / 8228	- / 8228	- / 8228
1000us	74050 / 82277	16455 / 24683	8228 / 16455	8228 / 16455	- / 8228	- / 8228
5000us	666447 / 674675	592397 / 600625	263288 / 271515	156327 / 164555	115188 / 123416	8228 / 16455
10000us	674675 / 682902	625308 / 633536	493664 / 501892	411387 / 419615	255060 / 263288	16455 / 24683
25000us	682902 / 691130	641764 / 649991	575942 / 584170	534803 / 543031	312654 / 320882	16455 / 24683
50000us	691130 / 699358	658219 / 666447	600625 / 608853	567714 / 575942	378476 / 386704	16455 / 24683
75000us	691130 / 699358	666447 / 674675	617080 / 625308	584170 / 592397	444298 / 452526	16455 / 24683
100000us	699358 / 707586	674675 / 682902	633536 / 641764	600625 / 608853	501892 / 510120	16455 / 24683
200000us	707586 / 715813	691130 / 699358	666447 / 674675	649991 / 658219	625308 / 633536	329110 / 24683
500000us	748724 / 756952	724041 / 732269	699358 / 707586	699358 / 707586	691130 / 699358	600625 / 608853
1000000us	756952 / -	748724 / 756952	740497 / 748724	732269 / 740497	724041 / 732269	682902 / 691130

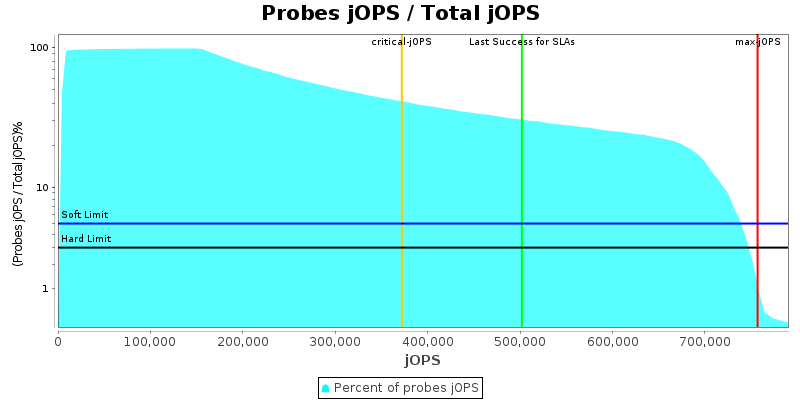

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

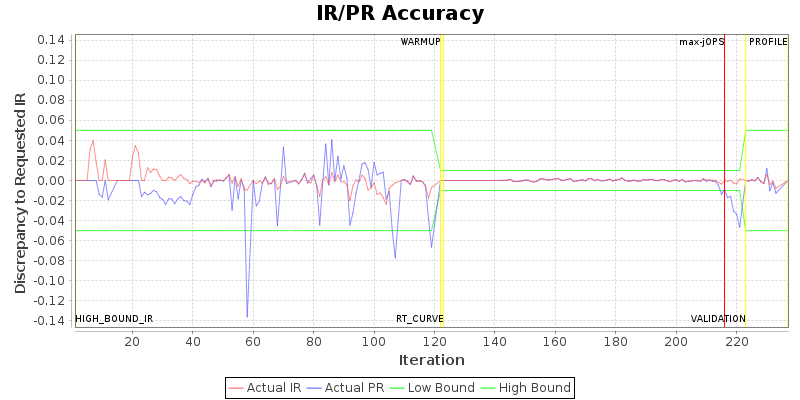

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	384
specjbb.comm.connect.selector.runner.count	0	24
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	900000
specjbb.comm.connect.timeouts.write	60000	900000
specjbb.comm.connect.worker.pool.max	256	160
specjbb.customerDriver.threads	64	{saturate=96}
specjbb.forkjoin.workers	384	{Tier1=220, Tier2=1, Tier3=20}
specjbb.group.count	1	24
specjbb.mapreducer.pool.size	384	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 822774 IR

High-bound (settled) is 796457 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR665 V3	756952 SPECjbb2015-MultiJVM max-jOPS 372032 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Oct 19, 2022
SPEC license #: 9017	Hardware Availability: Dec-2022	Software Availability: Aug-2022	Publication: Thu Nov 10 10:32:32 EST 2022
