SPECjbb2015 Report for jbb2015-20221005-00848 : 401393 max-jOPS ; 187177 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro A+ AS-1115CS-TNR
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Nov-2022
Model	H13SSW
Form Factor	1U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 core, 2.4GHz, 384MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	96
Cores Per Chip	96
Threads Per System	192
Threads Per Core	2
Version	0.10 09/13/2022
CPU Frequency (MHz)	2400
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	1MB (I+D) per core
Tertiary Cache	384MB (I+D) on chip per chip
Other Cache	None
Disk	10 x 1.92 TB NVMe PCIe Gen4.0
File System	btrfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64GB
Memory Details	64GB 2Rx4 PC5-38400R , running @ 4800 MHz
# and type of Network Interface Cards (NICs)	1 x 1 GbE NIC
Power Supply Quantity and Rating (W)	2 x 860w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.24.21-default
Available	July-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 18.0.2.1
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 18.0.2.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS4 L3 Cache as NUMA Domain = Enabled Determinism Control = Manual Determinism Slider = Power L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	None
Notes	Used numactl to interleave memory on all CPUs numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,96-103 --localalloc Group2: --physcpubind=8-15,104-111 --localalloc Group3: --physcpubind=16-23,112-119 --localalloc Group4: --physcpubind=24-31,120-127 --localalloc Group5: --physcpubind=32-39,128-135 --localalloc Group6: --physcpubind=40-47,136-143 --localalloc Group7: --physcpubind=48-55,144-151 --localalloc Group8: --physcpubind=56-63,152-159 --localalloc Group9: --physcpubind=64-71,160-167 --localalloc Group10: --physcpubind=72-79,168-175 --localalloc Group11: --physcpubind=80-87,176-183 --localalloc Group12: --physcpubind=88-95,184-191 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	None
Notes	Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads Group1: --physcpubind=0-7,96-103 --localalloc Group2: --physcpubind=8-15,104-111 --localalloc Group3: --physcpubind=16-23,112-119 --localalloc Group4: --physcpubind=24-31,120-127 --localalloc Group5: --physcpubind=32-39,128-135 --localalloc Group6: --physcpubind=40-47,136-143 --localalloc Group7: --physcpubind=48-55,144-151 --localalloc Group8: --physcpubind=56-63,152-159 --localalloc Group9: --physcpubind=64-71,160-167 --localalloc Group10: --physcpubind=72-79,168-175 --localalloc Group11: --physcpubind=80-87,176-183 --localalloc Group12: --physcpubind=88-95,184-191 --localalloc

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	392943	397168	401393	405618	409843

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	123587	157740	200274	234075	251399	187177

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4225 / 8450	- / 4225	- / 4225	- / 4225	- / 4225	- / 4225
1000us	67603 / 12676	4225 / 8450	4225 / 8450	4225 / 8450	- / 4225	- / 4225
5000us	304214 / 308439	135206 / 139431	92954 / 97179	88729 / 92954	76053 / 80279	- / 4225
10000us	312664 / 316889	287313 / 291538	202809 / 207034	173233 / 177458	126756 / 114080	12676 / 4225
25000us	321114 / 325340	308439 / 312664	270412 / 274637	249286 / 245061	160557 / 152107	12676 / 4225
50000us	325340 / 329565	312664 / 316889	283088 / 287313	270412 / 274637	207034 / 190134	12676 / 4225
75000us	325340 / 329565	316889 / 321114	299988 / 304214	283088 / 287313	240836 / 223935	12676 / 4225
100000us	329565 / 333790	321114 / 325340	304214 / 308439	291538 / 295763	257737 / 245061	54927 / 4225
200000us	354916 / 350691	329565 / 333790	321114 / 325340	316889 / 321114	308439 / 304214	173233 / 16901
500000us	392943 / 397168	367592 / 371817	350691 / 354916	342240 / 346466	338015 / 342240	240836 / 202809
1000000us	401393 / -	397168 / 401393	388717 / 392943	384492 / 388717	376042 / 380267	308439 / 287313

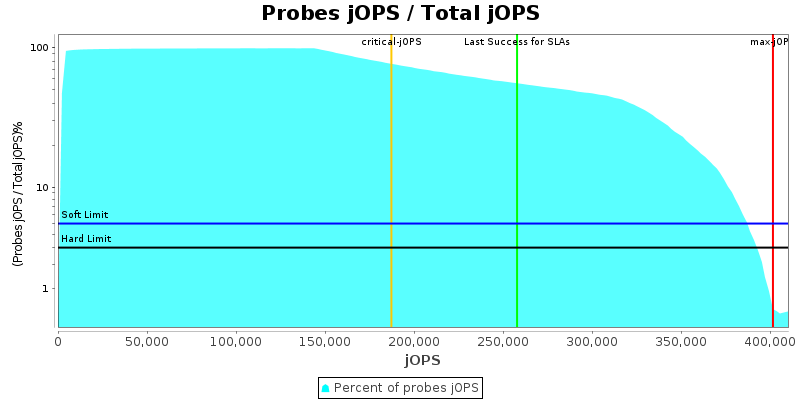

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	150	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180
specjbb.comm.connect.selector.runner.count	0	10	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5	15	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	150	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180	400	180
specjbb.comm.connect.worker.pool.min	1	16	32		32		32		32		32		32		32		32		32		32		32		32
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.warmup.step	0.1	0.25
specjbb.customerDriver.threads	64	{probe=120, saturate=180, service=80}
specjbb.forkjoin.workers	192	{Tier1=510, Tier2=15, Tier3=70}
specjbb.group.count	1	12
specjbb.mapreducer.pool.size	192	10
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 422519 IR

High-bound (settled) is 409269 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc Supermicro A+ AS-1115CS-TNR	401393 SPECjbb2015-MultiJVM max-jOPS 187177 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: September 20, 2022
SPEC license #: 001176	Hardware Availability: Nov-2022	Software Availability: Aug-2022	Publication: Thu Nov 17 17:19:03 EST 2022

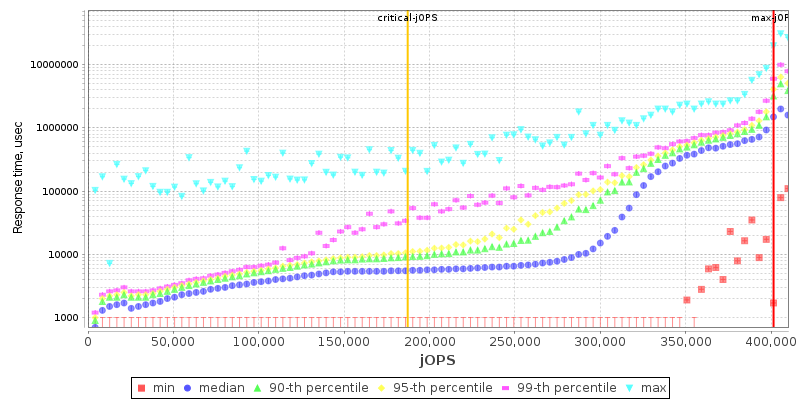

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 12) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
