SPECjbb2015 Report for jbb2015-20220518-00813 : 488179 max-jOPS ; 227448 critical-jOPS

SUT Description

Hardware hw_1
Name	R282-Z90
Vendor	GIGA-BYTE TECHNOLOGY CO., LTD.
Vendor URL	https://www.gigabyte.com
Available	Mar-2022
Model	R282-Z90
Form Factor	2U
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 core, 2.2GHz, 768MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	M07 09/30/2021
CPU Frequency (MHz)	2200
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	768MB (I+D) on chip per chip
Other Cache	None
Disk	1 x nvme 1.92TB
File System	ext4
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	64 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	2 x 1 Gbit LOMs
Power Supply Quantity and Rating (W)	2 x DELTA DPS-1200AB-4 1200w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP2
Vendor	SUSE
Vendor URL	http://suse.com
Version	5.3.18-22-default
Available	Jun-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.2
Vendor	Oracle
Vendor URL	http://oracle.com
Version	Java HotSpot 64-bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SMT Control set to Enable IOMMU set to Enabled NUMA nodes per socket set to NPS4 Determinism Control set to Manual Determinism Slider set to Power cTDP Control set to Manual cTDP set to 280 Package Power Limit Control set to Manual Package Power Limit set to 280 L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable ACPI SRAT L3 Cache as NUMA Domain set to Enable
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 128 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 400000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to run on all available nodes numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn30g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=26 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:-UseDynamicNumberOfCompilerThreads -XX:-UseDynamicNumberOfGCThreads -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000 -XX:AllocatePrefetchDistance=128 -XX:AllocatePrefetchLines=9 -XX:AllocateInstancePrefetchLines=3 -XX:TLABAllocationWeight=5 -XX:ThreadStackSize=512 -XX:TLABSize=4m -XX:CompileThresholdScaling=50
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads numactl --physcpubind=0-7,128-135 --localalloc numactl --physcpubind=8-15,136-143 --localalloc numactl --physcpubind=16-23,144-151 --localalloc numactl --physcpubind=24-31,152-159 --localalloc numactl --physcpubind=32-39,160-167 --localalloc numactl --physcpubind=40-47,168-175 --localalloc numactl --physcpubind=48-55,176-183 --localalloc numactl --physcpubind=56-63,184-191 --localalloc numactl --physcpubind=64-71,192-199 --localalloc numactl --physcpubind=72-79,200-207 --localalloc numactl --physcpubind=80-87,208-215 --localalloc numactl --physcpubind=88-95,216-223 --localalloc numactl --physcpubind=96-103,224-231 --localalloc numactl --physcpubind=104-111,232-239 --localalloc numactl --physcpubind=112-119,240-247 --localalloc numactl --physcpubind=120-127,248-255 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads numactl --physcpubind=0-7,128-135 --localalloc numactl --physcpubind=8-15,136-143 --localalloc numactl --physcpubind=16-23,144-151 --localalloc numactl --physcpubind=24-31,152-159 --localalloc numactl --physcpubind=32-39,160-167 --localalloc numactl --physcpubind=40-47,168-175 --localalloc numactl --physcpubind=48-55,176-183 --localalloc numactl --physcpubind=56-63,184-191 --localalloc numactl --physcpubind=64-71,192-199 --localalloc numactl --physcpubind=72-79,200-207 --localalloc numactl --physcpubind=80-87,208-215 --localalloc numactl --physcpubind=88-95,216-223 --localalloc numactl --physcpubind=96-103,224-231 --localalloc numactl --physcpubind=104-111,232-239 --localalloc numactl --physcpubind=112-119,240-247 --localalloc numactl --physcpubind=120-127,248-255 --localalloc

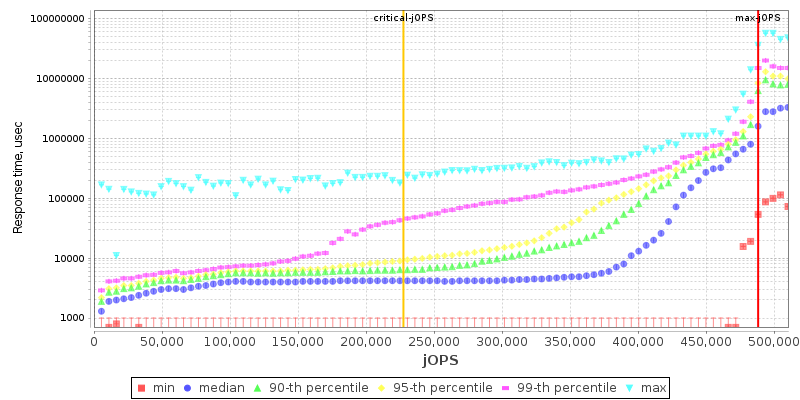

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	482694	488179	493664	499150	504635

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	150841	189238	244089	277000	315396	227448

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 5485	- / 5485	- / 5485	- / 5485	- / 5485	- / 5485
1000us	5485 / 10970	- / 5485	- / 5485	- / 5485	- / 5485	- / 5485
5000us	422357 / 427842	356535 / 362021	82277 / 87763	76792 / 82277	32911 / 38396	- / 5485
10000us	427842 / 433328	389446 / 394932	296199 / 301684	241347 / 246832	148099 / 153584	- / 5485
25000us	433328 / 438813	411387 / 416872	367506 / 372991	329110 / 334595	191981 / 186495	16455 / 5485
50000us	438813 / 444298	422357 / 427842	383961 / 389446	356535 / 362021	241347 / 246832	16455 / 5485
75000us	444298 / 449783	427842 / 433328	394932 / 400417	367506 / 372991	274258 / 279743	16455 / 5485
100000us	444298 / 449783	427842 / 433328	400417 / 405902	378476 / 383961	312654 / 318139	16455 / 5485
200000us	460753 / 466239	444298 / 449783	422357 / 427842	411387 / 416872	383961 / 389446	224892 / 76792
500000us	482694 / 488179	466239 / 471724	449783 / 455268	444298 / 449783	433328 / 438813	389446 / 394932
1000000us	488179 / -	482694 / 488179	471724 / 477209	471724 / 477209	466239 / 471724	427842 / 433328

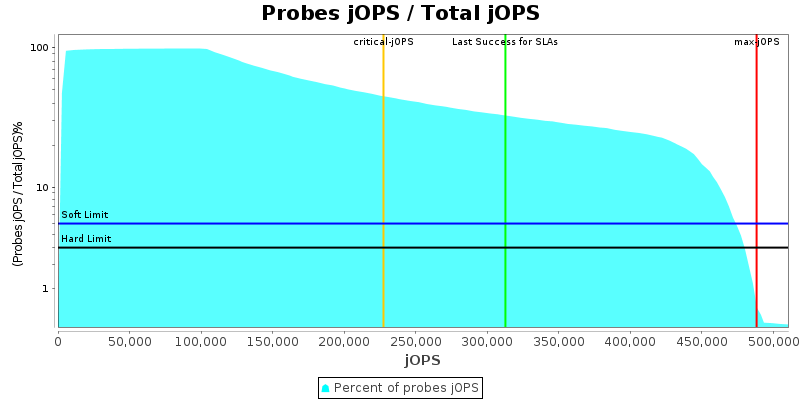

Number of probes

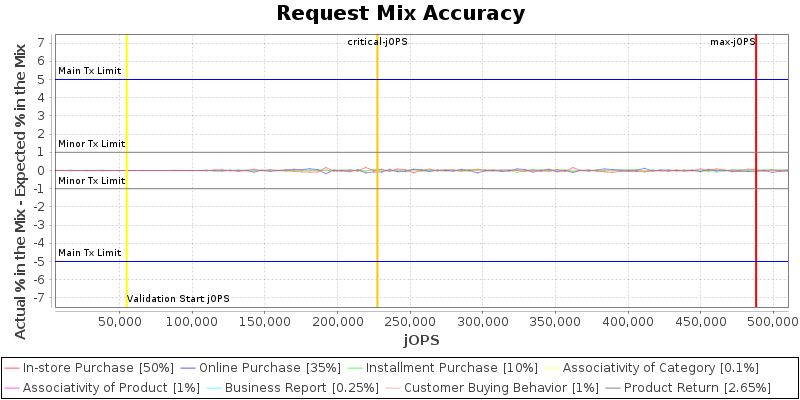

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

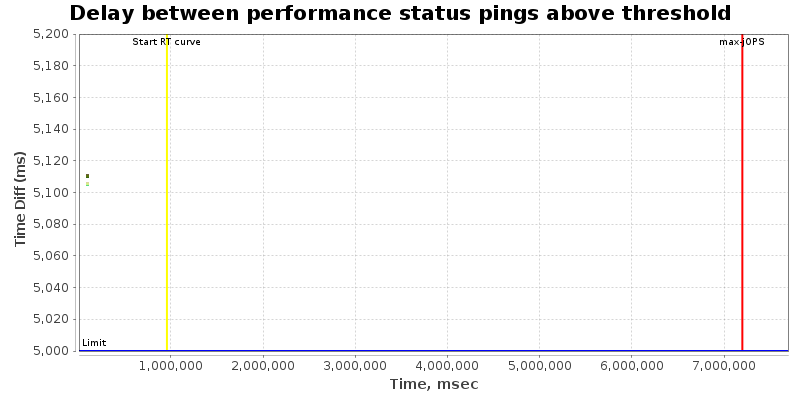

Delay between performance status pings during RT Curve (Response-Throughput Curve)

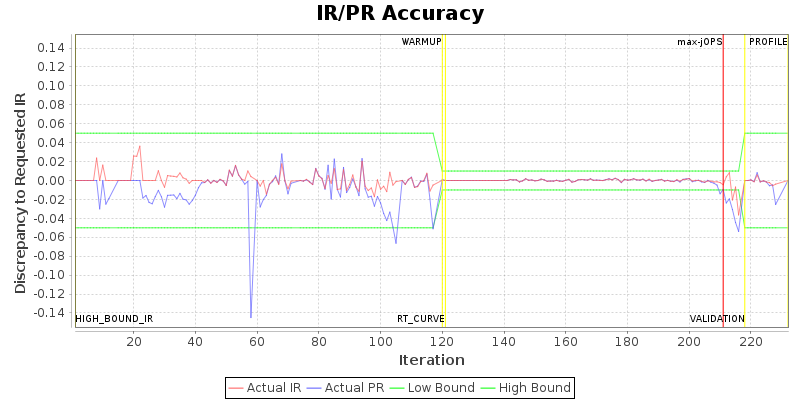

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	128	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	4	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	128	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120	120
specjbb.comm.connect.worker.pool.min	1	32	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.controller.rtcurve.warmup.step	0.1	0.7
specjbb.customerDriver.threads	64	{saturate=96}
specjbb.forkjoin.workers	256	{Tier1=220, Tier2=16, Tier3=32}
specjbb.group.count	1	16
specjbb.mapreducer.pool.size	256	32
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 548516 IR

High-bound (settled) is 508480 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

GIGA-BYTE TECHNOLOGY CO., LTD. R282-Z90	488179 SPECjbb2015-MultiJVM max-jOPS 227448 SPECjbb2015-MultiJVM critical-jOPS
Tested by: GIGA-BYTE TECHNOLOGY CO., LTD.	Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD.	Test location: New Taipei City 231, Taiwan	Test date: Apr 27, 2022
SPEC license #: 9082	Hardware Availability: Mar-2022	Software Availability: Jan-2022	Publication: Fri Jun 10 14:07:37 EDT 2022
