SPECjbb2015 Report for jbb2015-20220223-00750 : 112056 max-jOPS ; 78247 critical-jOPS

Hardware hw_1
Name	A+ Server F1114S-FT
Vendor	Super Mciro Computer, Inc
Vendor URL	http://www.supermicro.com/
Available	Mar-2022
Model	H12SSFF-AN6
Form Factor	1U
CPU Name	AMD EPYC 7473X
CPU Characteristics	24 core, 2.80 GHz, 768 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	48
Cores Per Chip	24
Threads Per System	48
Threads Per Core	48
Version	2.3 (10/21/2021)
CPU Frequency (MHz)	2800
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	768 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 240 GB SATA SSD
File System	ext4
Memory Amount (GB)	512
# and size of DIMM(s)	SK Hynix
Memory Details	64GB 2Rx4 PC4-3200AA-RB4-12-DC1
# and type of Network Interface Cards (NICs)	2 x 1 GbE NIC
Power Supply Quantity and Rating (W)	1 x 2000w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux 8.3
Vendor	Red Hat
Vendor URL	https://access.redhat.com/
Version	4.18.0-240.el8.x86_64
Available	Oct-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle java SE 17.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	JDK HotSpot 64-bit Server VM, version 17.0.2
Available	Dec-2021
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	none
Version	None
Available	None
Bitness	None
Notes	None

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS2 Determinism Control = Manual Determinism Slider = Power cTDP Control = Manual cTDP = 280 Package Power Limit Control = Manual Package Power Limit = 280
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	None
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-Xms490g -Xmx490g -Xmn480g -server -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=160 -XX:+UseHugeTLBFS -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning	None
Notes	Used numactl to run on all available nodes numactl --cpunodebind=0-1 --interleave=0-1

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	110797	112056	113315	114574	115834

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	48473	79635	87504	91551	94849	78247

Note

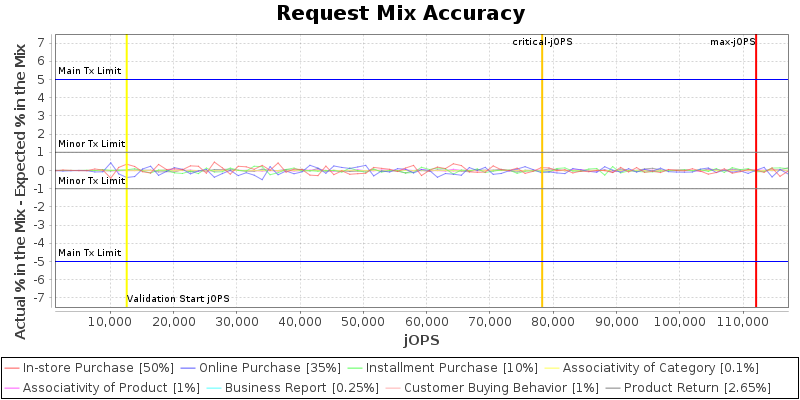

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

User did not set any property for this run


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 125906 IR

High-bound (settled) is 121949 IR

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc Supermicro Model H12SSFF-AN6	112056 SPECjbb2015-Composite max-jOPS 78247 SPECjbb2015-Composite critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: February 23, 2022
SPEC license #: 001176	Hardware Availability: Feb-2021	Software Availability: Oct-2021	Publication: Mon Mar 21 09:10:57 EDT 2022

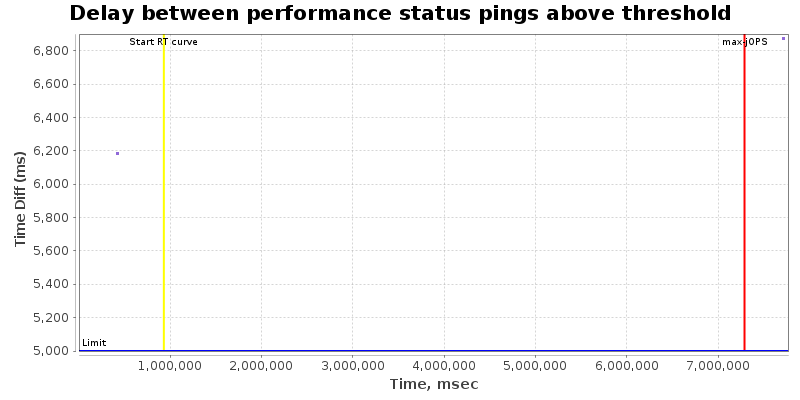

SPECjbb2015-Composite: Single JVM/Single Host (# of groups: 1) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
